Grundfos 91134098 - CR 15-10 B-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 91134098

Price:
Sale price$11,684.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 91134098 - CR 15-10 B-GJ-A-E-HQQE is a vertical, multistage centrifugal pump intended for inline, high-pressure industrial service and maintenance fleets that handle water transfer and booster duties.

Key features

  • Manufactured by Grundfos for various industrial and service applications
  • Designed as a vertical, in-line multistage centrifugal unit for high-pressure systems
  • Compact vertical design provides reliable pressure boosting and space-saving installation

Applications

Suitable for booster stations, industrial pressure boosting, circulation systems, and other high-pressure in-line multistage duties common in commercial and industrial facilities.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 91134098

EAN 5700399170036
Actual impeller diameter 4.13 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 238.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 666 ft
Maximum operating pressure 25 bar
Model A
Motor 284TC
Motor standard NEMA
Net weight 126.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3497 rpm
Pump version B
Rated flow 90.3 US gpm
Rated head 529.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 10
Standard NEMA
Type of connection ANSI / JIS
Version B

Motor Curves

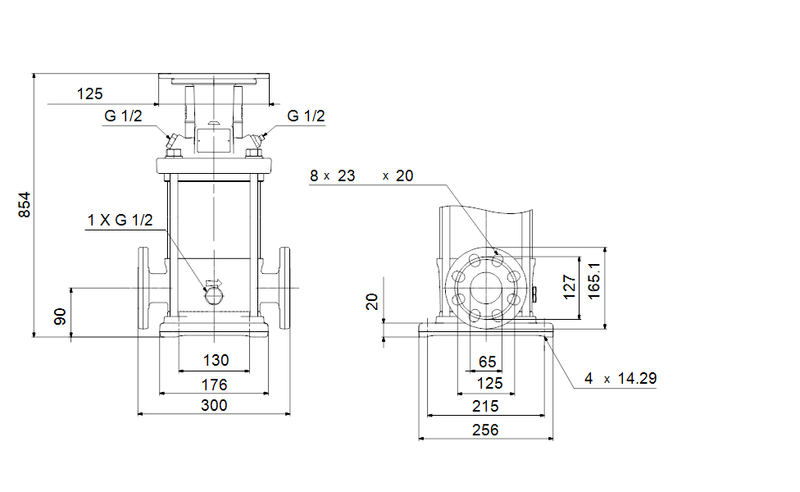

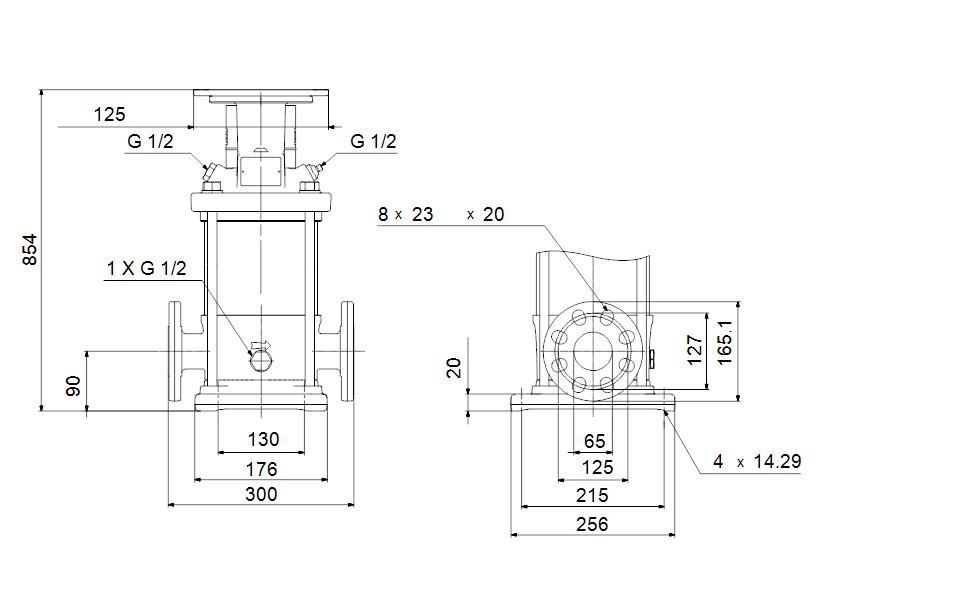

Dimensional Drawing
