Grundfos 91129446 - CR 10-8 K-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 91129446

Price:
Sale price$8,077.78
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 91129446 - CR 10-8 K-GJ-A-E-HQQE is a vertical multistage centrifugal pump designed for industrial and commercial fluid-handling applications where high pressure and space-saving inline installation are required.

Key features

  • Vertical, in-line centrifugal multistage design for compact, high-pressure operation
  • Service Special classification indicating suitability for repair and replacement projects
  • Practical benefit: reliable pressure boost and smooth flow for process and service systems

Applications

Common uses include boiler feed, water supply, pressure boosting, industrial process circulation, and other high-pressure inline multistage duties.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 91129446

EAN 5700397585368
Actual impeller diameter 3.66 in
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 3.66 in
DOE Pump Energy Index CL 0.93
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 123.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 232 psi / 250 °F
Maximum head 357.6 ft
Maximum operating pressure 16 bar
Model A
Motor 213TC
Motor standard NEMA
Net weight 101.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3482 rpm
Pump version K
Rated flow 53.3 US gpm
Rated head 295.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 8
Standard NEMA
Type of connection ANSI / JIS
Version K

Motor Curves

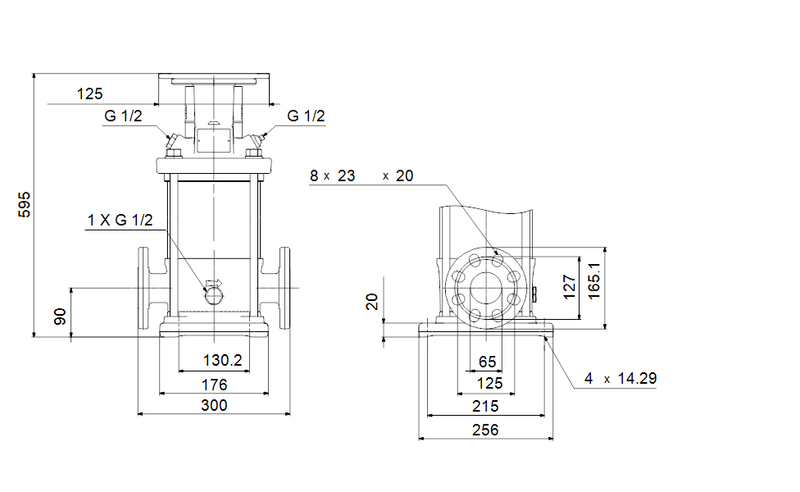

Dimensional Drawing
