Grundfos 98591541 - CR 10-3 A-A-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98591541

Price:
Sale price$7,438.89
or Call for most up to date lead times. (781) 281-8905

Description

CR 10-3 A-A-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Liquid: Pumped liquid:

EAN 5711497788511
Actual impeller diameter 3.66 in
Approvals EAC
Approvals for drinking water WRAS
Code for rubber V
Code for shaft seal HQQV
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Flange size for motor FT115
Frequency converter NONE
Gross weight 112.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 144 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor No 99605898
Motor standard IEC
Net weight 104.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3451 rpm
Pump version A
Pumped liquid Water
Rated flow 53.3 US gpm
Rated head 111.2 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Stages 3
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

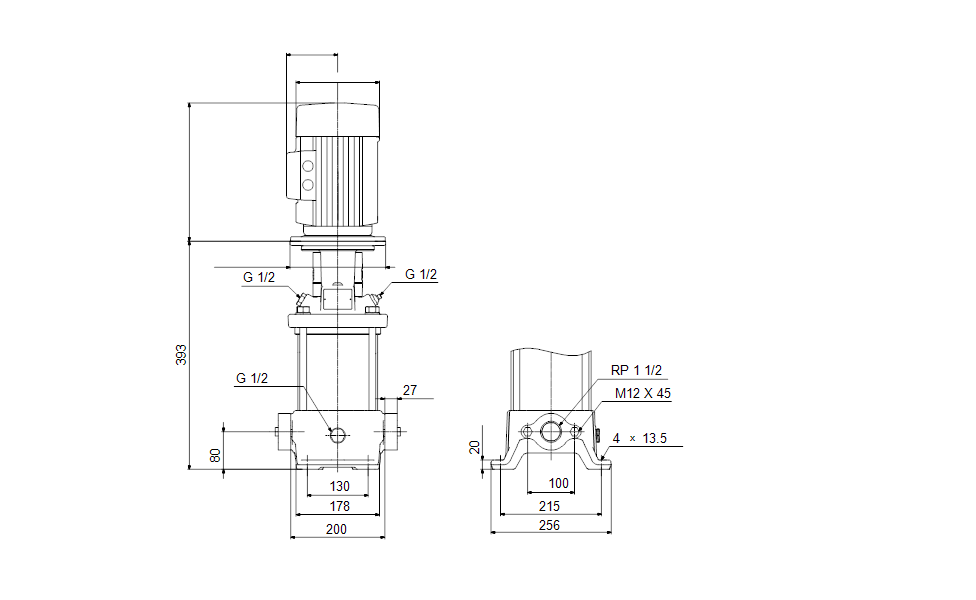

Dimensional Drawing
