Grundfos 96625449 - CR 10-3 K-BN-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96625449

Price:
Sale price$5,801.39
or Call for most up to date lead times. (781) 281-8905

Description

CR 10-3 K-BN-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads.

EAN 5700835137463
Actual impeller diameter 3.66 in
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code BN
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 3.66 in
DOE Pump Energy Index CL 0.93
Flange size for motor 182TC
Frequency converter NONE
Gross weight 101.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 6
Max pressure at stated temp 145 psi / 250 °F
Maximum head 118.1 ft
Maximum operating pressure 10 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 86.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3496 rpm
Pump version K
Rated flow 53.3 US gpm
Rated head 103.4 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Stages 3
Standard NEMA
Type of connection Oval / NPT(F)
Version K

Motor Curves

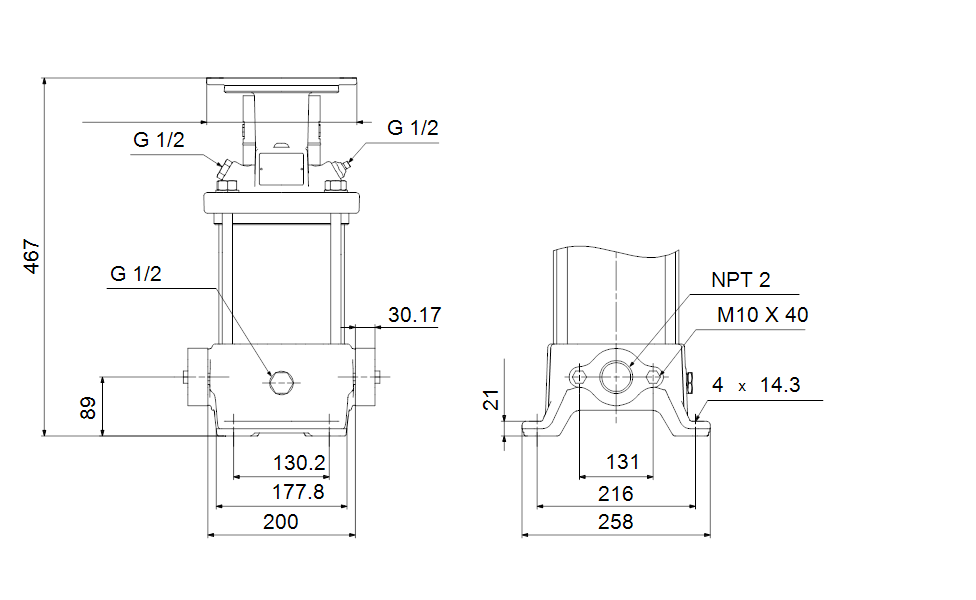

Dimensional Drawing
