Description

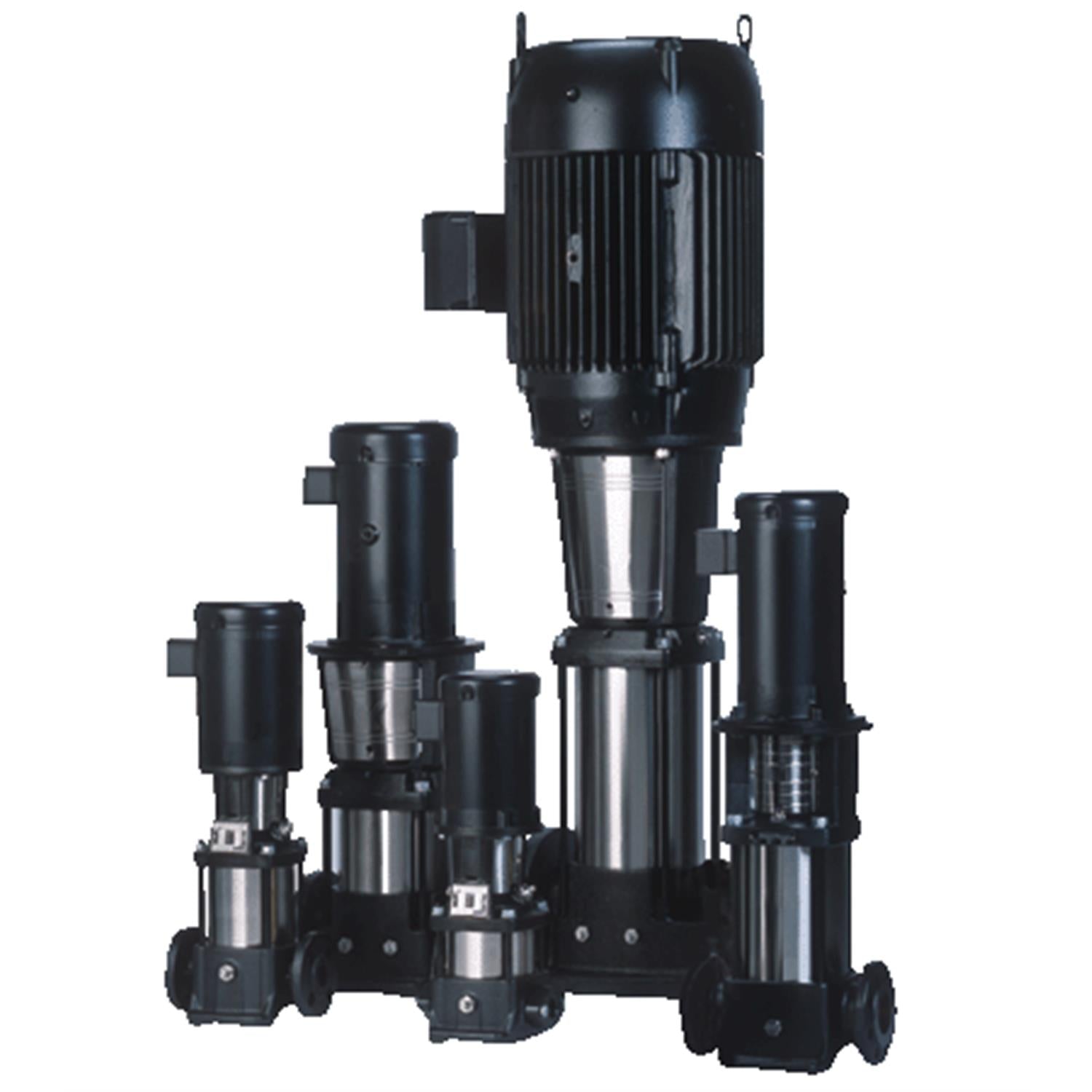

The Grundfos 96126732 (CR 10-3 A-GJ-A-E-HQQE) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer.
Vertical Multistage Design
Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.
Stainless Steel Wetted Parts
All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.
QuickTight Connection System
No special tools needed for coupling. Integrated coupling design reduces installation and service time.
Wide Configuration Range
Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.
Authorized Grundfos Distributor
PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.
Contact PumpStop for Sizing
The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.
| Model Number | 96126732 |
| Product Series | CR |
| Series Description | Vertical Multistage Centrifugal Pump |
| Seal Code | HQQE |
| Seal Description | Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation. |
| Temperature limits | Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700396969732
- Applications
- Industrial applications
- Actual impeller diameter
- 3.66 in
- Approvals
- CE
- Approvals for drinking water
- NSF/ANSI 61
- Bearing 1
- SIC
- Code for rubber
- E
- Code for shaft seal
- HQQE
- Connect code
- GJ
- Connection
- ANSI / JIS
- Connection 2
- DN 50
- Connection 3
- DN 50
- Connection 4
- PN 25
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Diameter
- 3.66 in
- DOE Pump Energy Index CL
- 0.87
- Flange rating inlet
- 300 lb
- Flange size for motor
- 182TC
- Frequency
- 60 HZ
- Frequency converter
- NONE
- Gross weight
- 104.0 lb
- Impeller
- Stainless steel
- Impellers
- 3
- Liquid max temp
- 120°C
- Liquid temperature range
- -4 .. 248 °F
- Low NPSH
- N
- Material code
- A
- Material Pricing Group
- 30
- Max pressure at stated temp
- 232 psi / 250 °F
- Maximum head
- 145 ft
- Maximum operating pressure
- 232.06 psi
- Maximum permissible operating pressure
- 16bar
- Model
- A
- Motor
- 182TC
- Motor standard
- NEMA
- n rpm
- 3461rpm
- Net weight
- 88.2 lb
- Number of reduced-diameter impellers
- 0
- Pressure rating
- PN 25
- Pressure rating for connection
- PN 25
- Product family
- CR 10
- Pump housing
- Cast iron
- Pump inlet
- DN 50
- Pump outlet
- DN 50
- Pump version
- A
- Pumped liquid
- Water
- Rated flow
- 53.3 US gpm
- Rated flow 2
- 53.3 US gpm
- Rated head
- 114.2 ft
- Rated head 2
- 114.2 ft
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- E
- Selected liquid temperature
- 68 °F
- Shaft seal
- HQQE
- Size of inlet connection
- DN 50
- Size of outlet connection
- DN 50
- Stages
- 3
- Standard
- NEMA
- Type of connection
- ANSI / JIS
- Version
- A

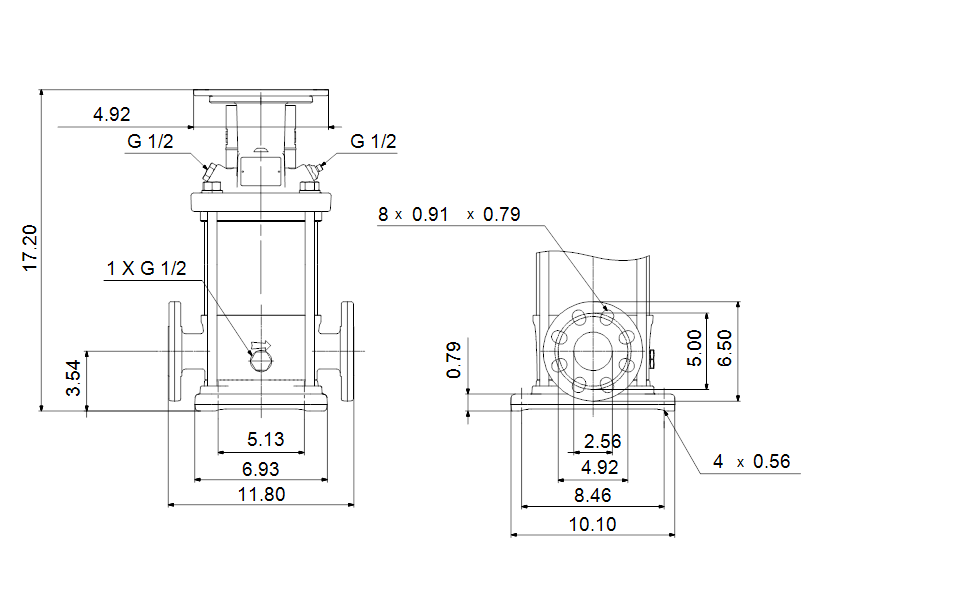

Dimensional Drawing
