Grundfos 99115523 - CR 10-16 A-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99115523

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99115523 - CR 10-16 A-GJ-A-E-HQQE is a vertical multistage centrifugal pump designed for industrial and commercial fluid handling where high pressure and reliable circulation are required.

Key features

  • Vertical multistage centrifugal design for compact, in-line installation
  • Service Special and high-pressure capability suitable for multi-stage applications
  • Provides steady pressure and efficient operation to support process and HVAC systems

Applications

Boiler feed, high-pressure water supply, pressure boosting, process circulation, and other industrial or commercial systems requiring in-line vertical multistage pumping.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99115523

EAN 5712607052874
Actual impeller diameter 3.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 439.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 771 ft
Maximum operating pressure 25 bar
Model A
Motor 254TC
Motor efficiency at 1/2 load 93.0-92.5 %
Motor efficiency at 3/4 load 92.0-92.5 %
Motor efficiency at full load 1 90.5-91.0 %
Motor standard NEMA
Motor type 160AA
Net weight 324.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 11 kW
Power factor 1 0.91-0.89
Pressure rating for connection PN 25
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 3444 rpm
Pump version A
Pumped liquid Water
Rated current 37
Rated flow 53.3 US gpm
Rated head 603.7 ft
Rated power - P2 11 kW
Rated speed 3490-3530 rpm
Rated voltage 3 x 208-230DD/460D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 16
Standard NEMA
Starting current 680-900 %
Type 160AA
Type of connection ANSI / JIS
Version A

Motor Curves

Dimensional Drawing

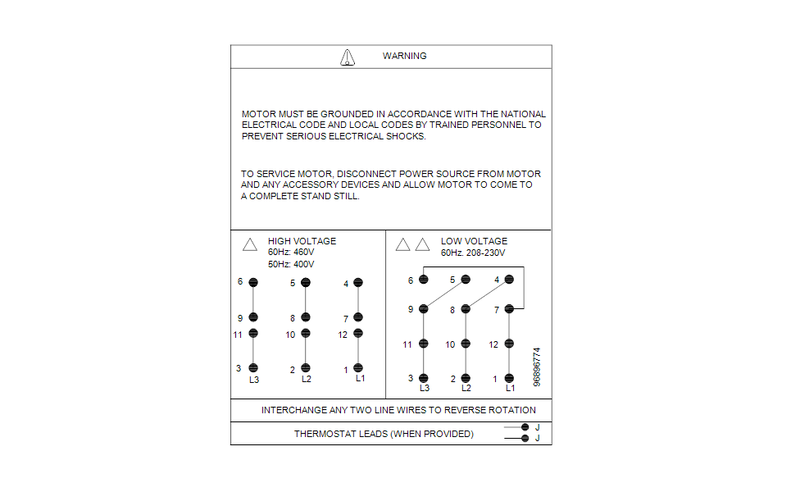

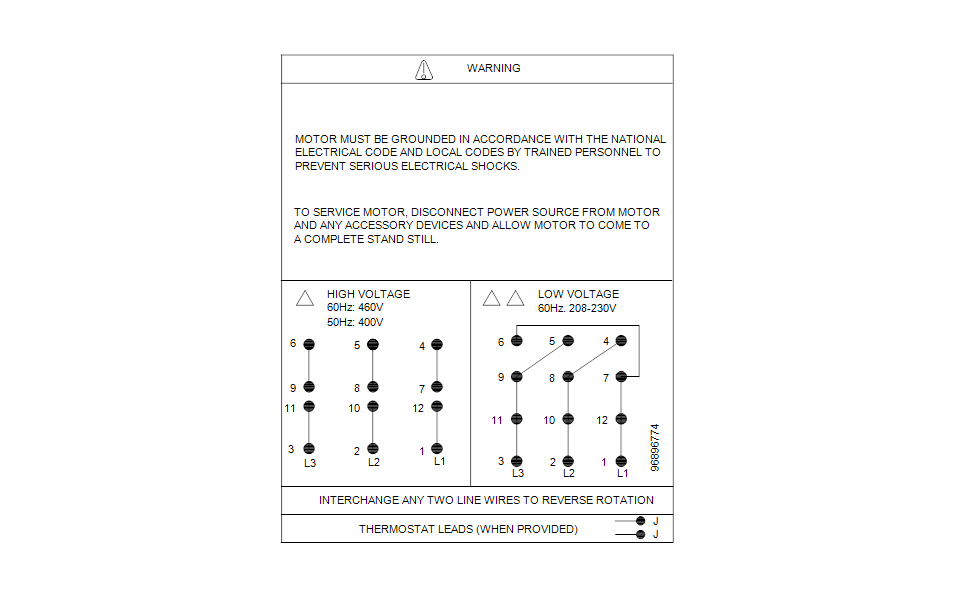

DWiring Diagram
