Grundfos 91134009 - CR 10-10 K-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 91134009

Price:
Sale price$9,450.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 91134009 - CR 10-10 K-GJ-A-E-HQQE is a vertical, multistage centrifugal pump designed for inline, high-pressure industrial pumping tasks. It suits technicians and maintenance teams replacing or servicing centrifugal systems.

Key features

  • Vertical multistage centrifugal design for compact, high-head performance
  • In-line configuration and high-pressure capability from product tags
  • Service-special model intended for maintenance and repair applications

Applications

Typical uses include boiler feed, pressure boosting, HVAC chilled water, process water transfer, and other industrial high-pressure or multistage pumping needs.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 91134009

EAN 5700398963189
Actual impeller diameter 3.66 in
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 3.66 in
DOE Pump Energy Index CL 0.93
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 192.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 232 psi / 250 °F
Maximum head 452.8 ft
Maximum operating pressure 16 bar
Model A
Motor 213TC
Motor standard NEMA
Net weight 106.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3448 rpm
Pump version K
Rated flow 53.3 US gpm
Rated head 367.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 10
Standard NEMA
Type of connection ANSI / JIS
Version K

Motor Curves

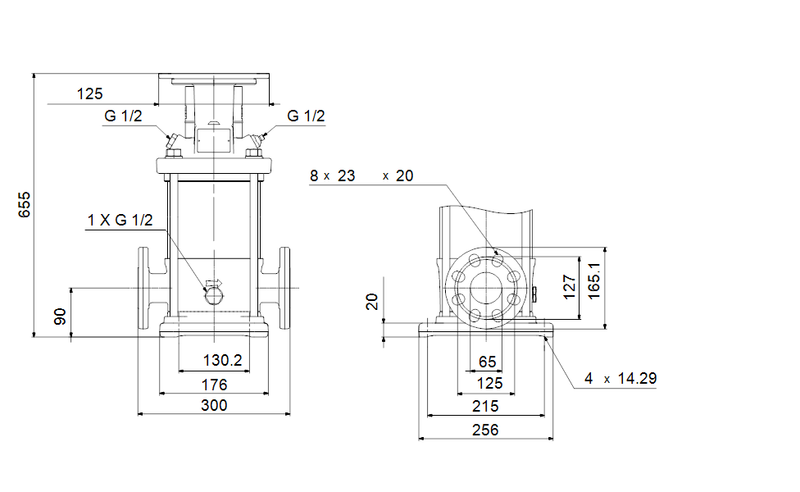

Dimensional Drawing
