Grundfos 97766108 - CR 1-9 A-A-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97766108

Price:
Sale price$3,888.89
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97766108 - CR 1-9 A-A-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97766108 - CR 1-9 A-A-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered to deliver reliable and efficient performance in demanding environments.

With its robust construction and advanced design, the CR 1-9 A-A-A-E-HQQE is ideal for high-pressure applications, ensuring optimal fluid transfer and circulation. This pump is part of the renowned Grundfos CR series, known for its versatility and durability.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5710624005248
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT100
Frequency converter NONE
Gross weight 57.6 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 261.5 ft
Maximum operating pressure 16 bar
Model A
Motor FT100
Motor standard IEC
Net weight 51.6 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 3401 rpm
Pump version A
Pumped liquid Water
Rated flow 9.69 US gpm
Rated head 192.6 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 9
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

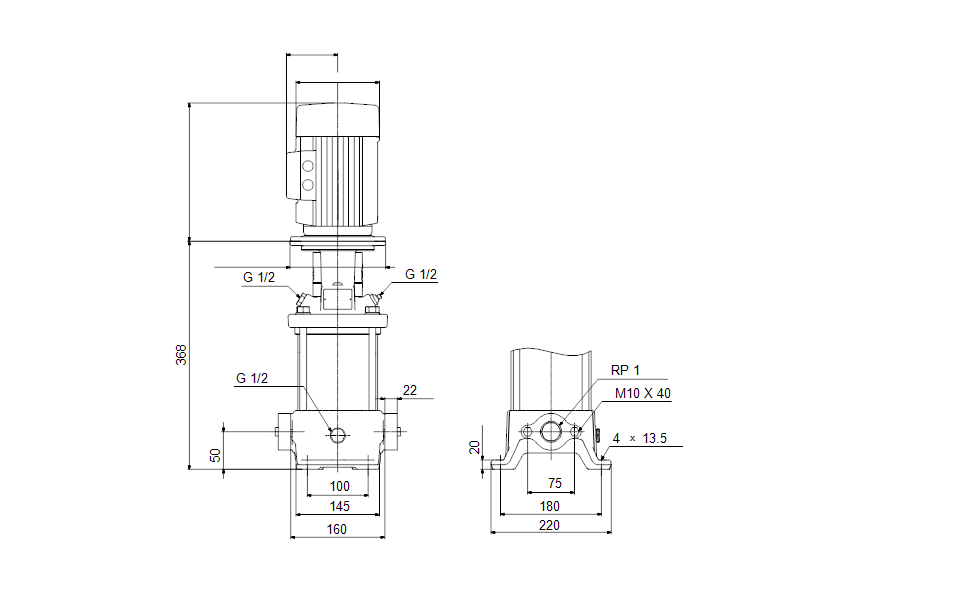

Dimensional Drawing
