Grundfos 92596719 - CR 1-5 B-FGJ-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 92596719

Price:
Sale price$4,552.78
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 1-5 B-FGJ-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5715116827032
Approvals CURUS
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 250 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 74.9 lb
IE efficiency IE3 75%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 144.7 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.67
Motor efficiency at 3/4 load 0.73
Motor efficiency at full load 1 0.75
Motor standard NEMA
Motor type WEG
Net weight 63.9 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Power factor 1 0.8
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 3485 rpm
Pump version B
Pumped liquid Water
Rated current 2
Rated flow 9.69 US gpm
Rated head 106.3 ft
Rated power - P2 0.55 kW
Rated speed 3450 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 5
Standard NEMA
Starting current 660-660 %
Type WEG
Type of connection DIN / ANSI / JIS
Version B

Motor Curves

Dimensional Drawing

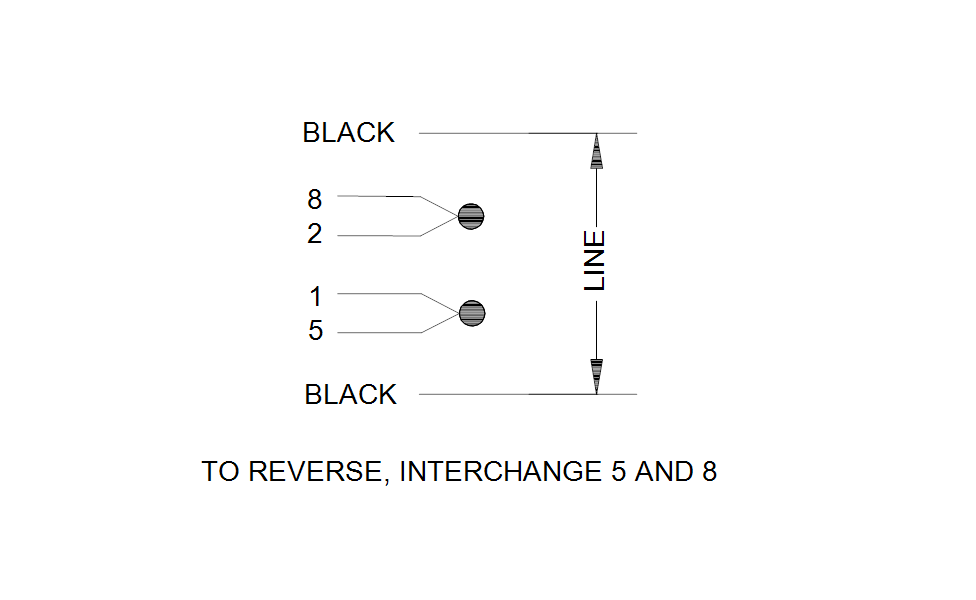

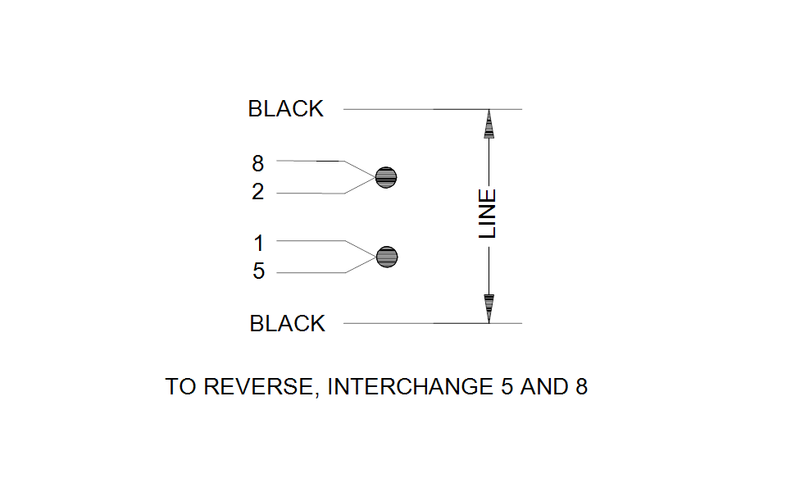

DWiring Diagram
