Grundfos 96081970 - CR 1-4 A-B-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 96081970

Price:
Sale price$3,156.38
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

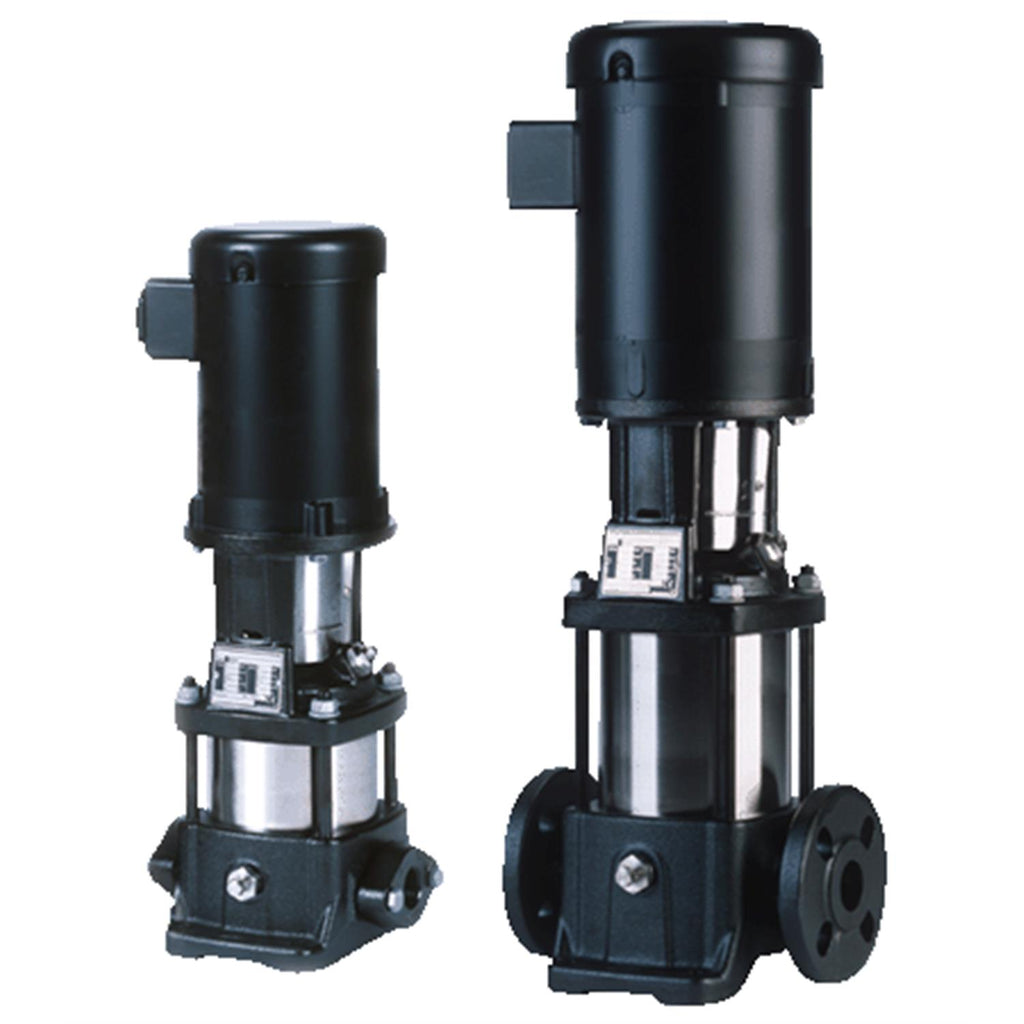

CR 1-4 A-B-A-E-HQQE · Vertical Multistage Centrifugal Pump
CR0.5HP208-230YY/460YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 96081970 (CR 1-4 A-B-A-E-HQQE) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 9.69US gpm at 89.24ft. Rated 208-230YY/460YV, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
0.5HP
Voltage
208-230YY/460YV
Phase
3.0-Phase
Max Flow
9.69US gpm
Max Head
89.24ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 1-4 A-B-A-E-HQQE
Series: CR
Model Code: CR 1-4 A-B-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Flange Rating: PN 16
Technical Specifications
Model Number 96081970
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Power 0.5HP
Voltage 208-230YY/460YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3430-3460rpm
Pump Speed 3485rpm
Full Load Current 1,64-1,55/0,78A
Motor Type 71AB
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 79.5-80.6%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 9.69US gpm
Nominal Head 89.24ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 140°F
Inlet Connection 1inch
Outlet Connection 1inch
Pipe Pressure Rating PN 16
Pipe Standard Oval / NPT(F)
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQE
Approvals / Certifications CE, EAC, UKCA, SEPRO, RCM
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 1-4 A-B-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700395167085
Applications Industrial applications
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection Oval / NPT(F)
Connection 2 PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Eta 1/1 79.5-80.6%
Flange size for motor 56C
Frequency 60 HZ
Frequency converter NONE
Full load SF current 2,0-1,9/0,95 A
Gross weight 57.9 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency classNEMA Premium / IE3 60Hz
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 4
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 117.8 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model A
Motor 56C
Motor efficiency at 1/2 load 77.1-75.4 %
Motor efficiency at 3/4 load 79.9-79.5 %
Motor efficiency at full load 1 79.5-80.6 %
Motor protec NONE
Motor standard NEMA
Motor type 71AB
n rpm 3430-3460rpm
Net weight 46.9 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 0.5 HP
P2 kW 0.37kW
Phase 3
Power (P2) required by pump 0.5 HP
Power factor 1 0.84-0.78
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CR 1
Pump 0.5 HP
Pump housing Cast iron
Pump inlet 1
Pump outlet 1
Pump version A
Pumped liquid Water
Rated current 1,64-1,55/0,78 A
Rated flow 9.69 US gpm
Rated flow 2 9.69 US gpm
Rated head 89.24 ft
Rated head 2 89.24 ft
Rated power - P2 0.5 HP
Rated speed 3430-3460 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Shaft seal HQQE
Stages 4
Standard NEMA
Starting current 590-650 %
Type 71AB
Type of connection Oval / NPT(F)
Version A

Motor Curves

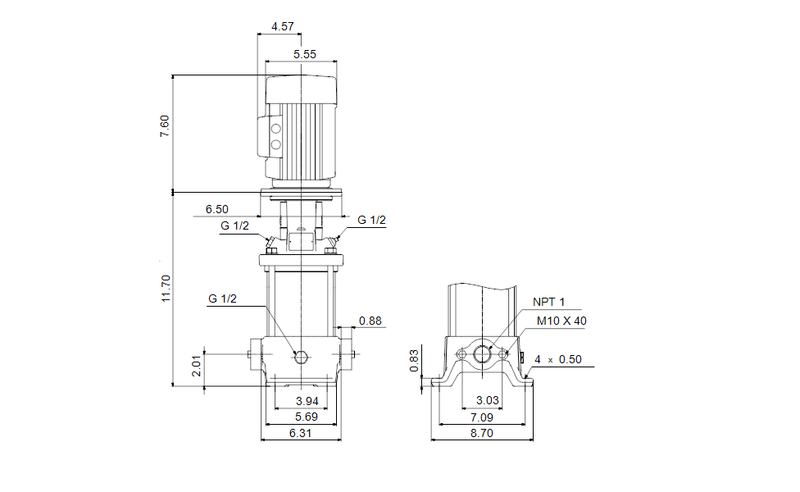

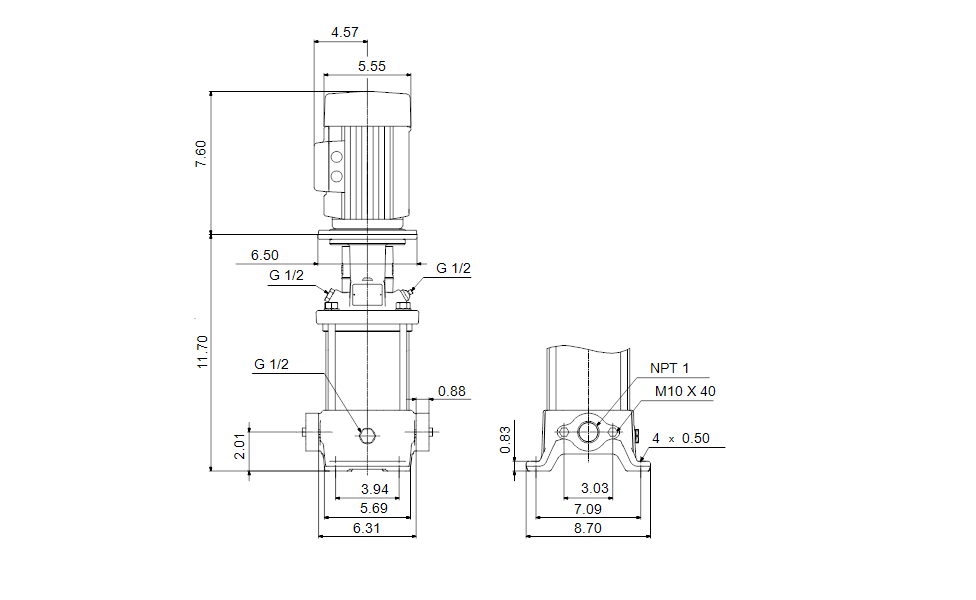

Dimensional Drawing
