Grundfos 96541872 - CR 1-10 A-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96541872

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96541872 - CR 1-10 A-FGJ-A-V-HQQV is a vertical multistage centrifugal pump designed for industrial and commercial fluid handling; technicians and maintenance teams commonly use this unit in high-pressure inline systems.

Key features

  • Manufactured by Grundfos for industrial applications and service specials
  • Vertical, in-line multistage design suited for high-pressure and centrifugal duties
  • Delivers reliable staged pumping for consistent system pressure and reduced downtime

Applications

Typical uses include boiler feed, high-pressure transfer, water supply, and process circulation where inline vertical multistage centrifugal pumps are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96541872

EAN 5700397951484
Approvals CE
Approvals for drinking water WRAS
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 250 lb
Flange size for motor FT100
Frequency converter NONE
Gross weight 51.6 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 295.6 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT100
Motor standard IEC
Net weight 45.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3463 rpm
Pump version A
Pumped liquid Water
Rated flow 9.69 US gpm
Rated head 225.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 10
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

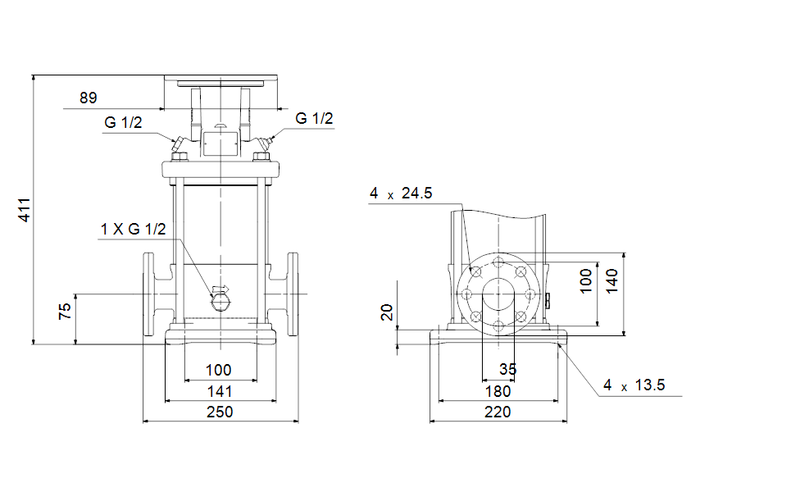

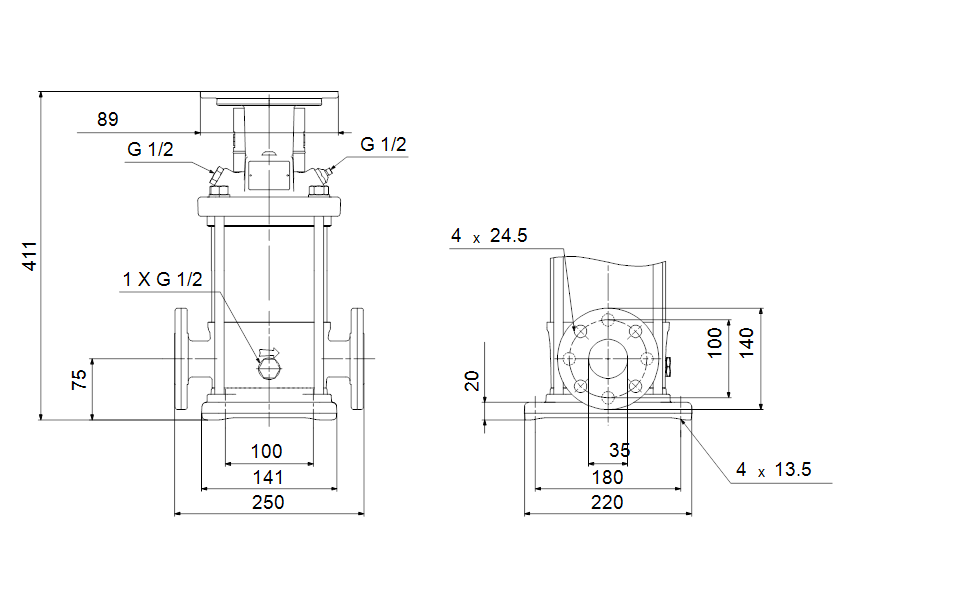

Dimensional Drawing
