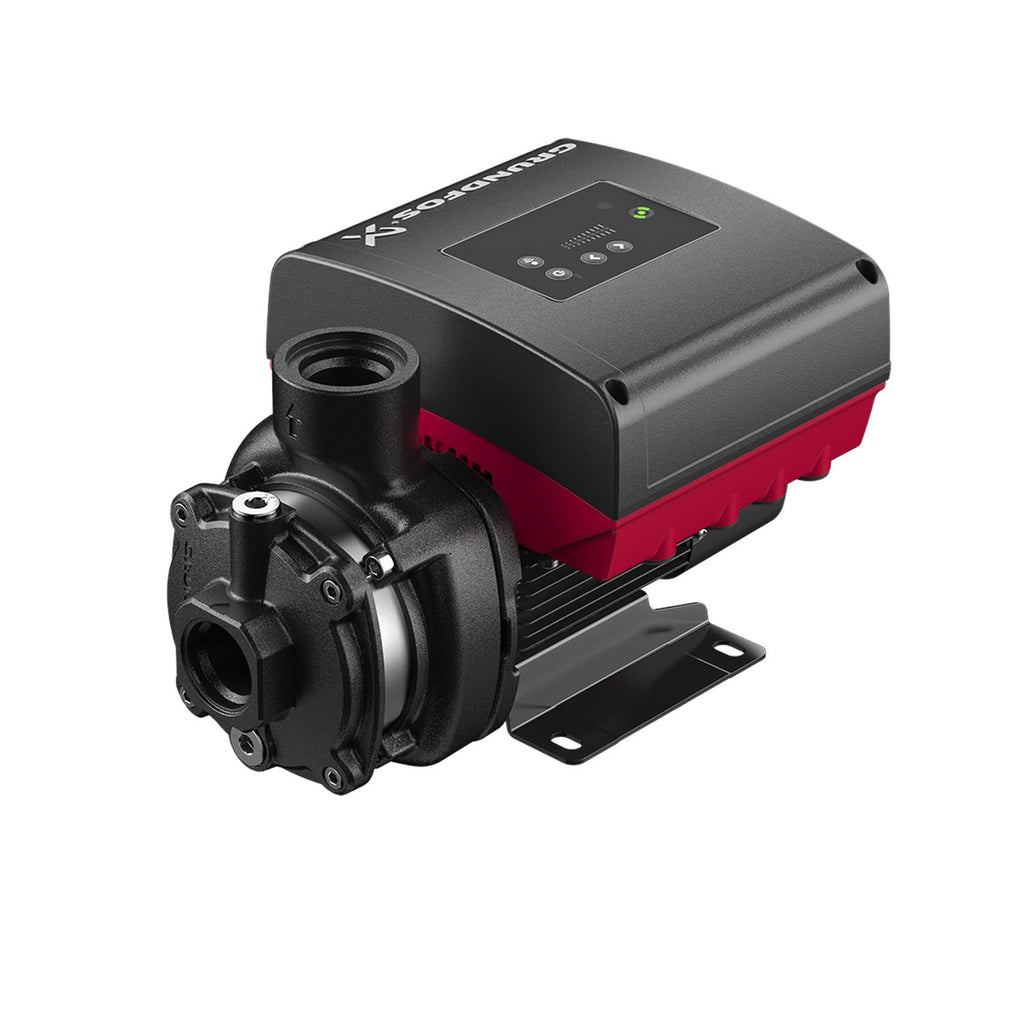

Grundfos 99286593 - CME 15-2 A-S-A-E-AQQE T-A-D-N | Horizontal | End Suction | Centrifugal

Save $2,852.00
GRUNDFOSSKU: 99286593

Price:
Sale price$3,348.00 Regular price$6,200.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99286593 - CME 15-2 A-S-A-E-AQQE T-A-D-N is a horizontal end-suction centrifugal pump from the CME series, suited for industrial and commercial fluid transfer. Operators and maintenance technicians use it where reliable centrifugal performance and compact installation are required.

Key features

  • Designed for industrial applications with the CME series’ centrifugal pump architecture
  • Horizontal, end-suction configuration for compact footprint and straightforward piping
  • Delivers dependable fluid handling with improved serviceability and routine maintenance access

Applications

General water transfer, HVAC circulation, booster service, light industrial process pumping, and other centrifugal pump duties where a horizontal end-suction unit is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99286593

EAN 5713826599157
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 112C
Frequency converter Built-in
Gross weight 95.8 lb
Housing Cast iron
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 35
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 88.1 lb
Outlet position 12
Product family CME
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 6.20-5.80 A
Rated flow 89.8 US gpm
Rated head 140.2 ft
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size 112C
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

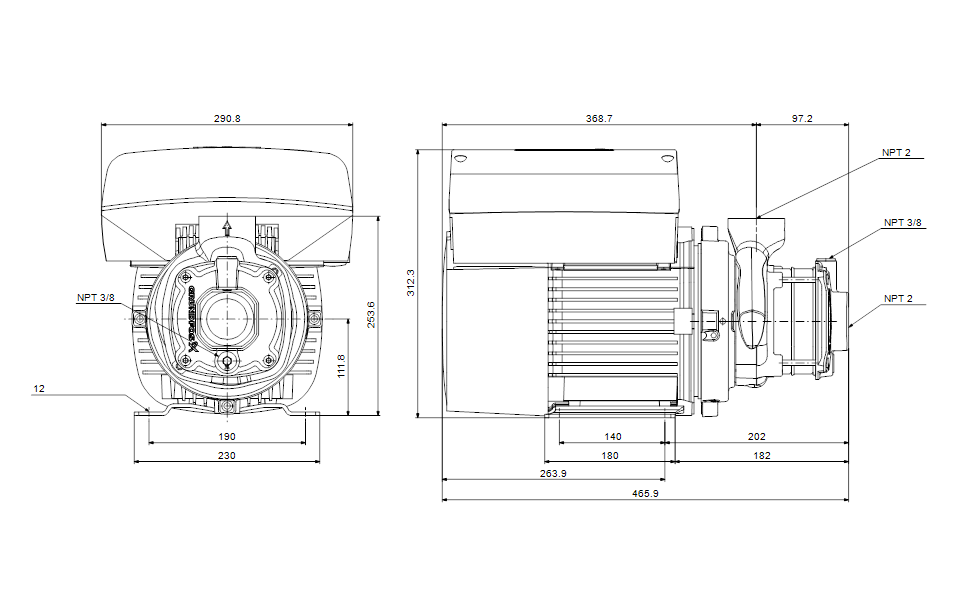

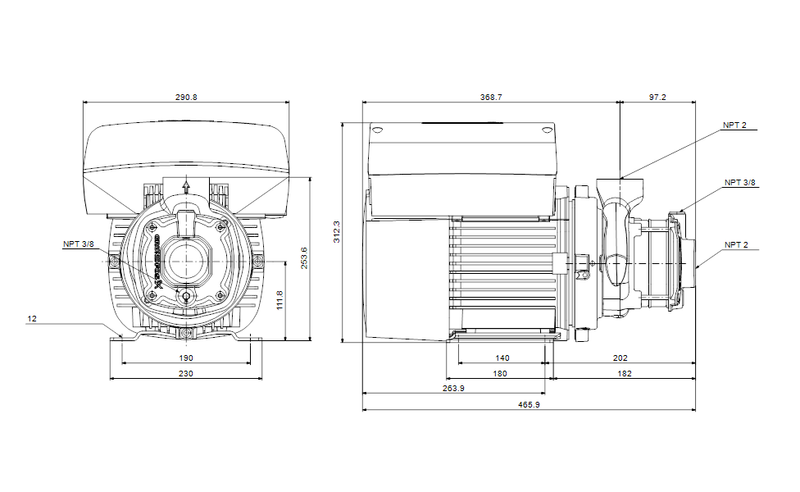

Dimensional Drawing

DWiring Diagram
