Description
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CME 10-4 B-S-I-E-AQQE T-A-A-N · Horizontal Multistage End-Suction Pump — Variable Speed
The Grundfos 99406814 (CME 10-4 B-S-I-E-AQQE T-A-A-N) is a Horizontal Multistage End-Suction Pump — Variable Speed. Compact horizontal multistage pump with integrated frequency converter for constant pressure control. Nominal performance: 52.8US gpm at 243.1ft. Rated 440-480 VV, 3.0-Phase, 60 Hz.
Power
7.38HP
Voltage
440-480 VV
Phase
3.0-Phase
Max Flow
52.8US gpm
Max Head
243.1ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — CME 10-4 B-S-I-E-AQQE T-A-A-N
Series: CME
Model Code: CME 10-4 B-S-I-E-AQQE T-A-A-N
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: AQQE
Technical Specifications
| Model Number | 99406814 |
| Product Series | CME |
| Series Description | Horizontal Multistage End-Suction Pump — Variable Speed |
| Power | 7.38HP |
| Voltage | 440-480 VV |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3500-4000rpm |
| Pump Speed | 3480rpm |
| Full Load Current | 9,10-8,50A |
| Motor Efficiency Class | IE5 |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 52.8US gpm |
| Nominal Head | 243.1ft |
| Max Operating Pressure | 232.06psi |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 131°F |
| Inlet Connection | 1 1/2inch |
| Outlet Connection | 1 1/2inch |
| Pipe Standard | NPT(F) |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | AQQE |
| Approvals / Certifications | CE, EAC, CURUS, UKCA |
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 440-480 VV, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CME pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — CME Series
✓ Product Data Sheet — CME 10-4 B-S-I-E-AQQE T-A-A-N
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN
5713828599865
Density
62.29 lb/ft³
Gross weight
109.0 lb
Liquid temperature range
-4 .. 248 °F
Material Pricing Group
35
Max pressure at stated temp
232 psi / 194 °F
Max. capacity 2
,
Net weight
101.0 lb
Range of ambient temperature
-4 .. 131 °F
Rated flow
52.8 US gpm
Rated head
243.1 ft
Real Time
Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Selected liquid temperature
68 °F
Motor Curves

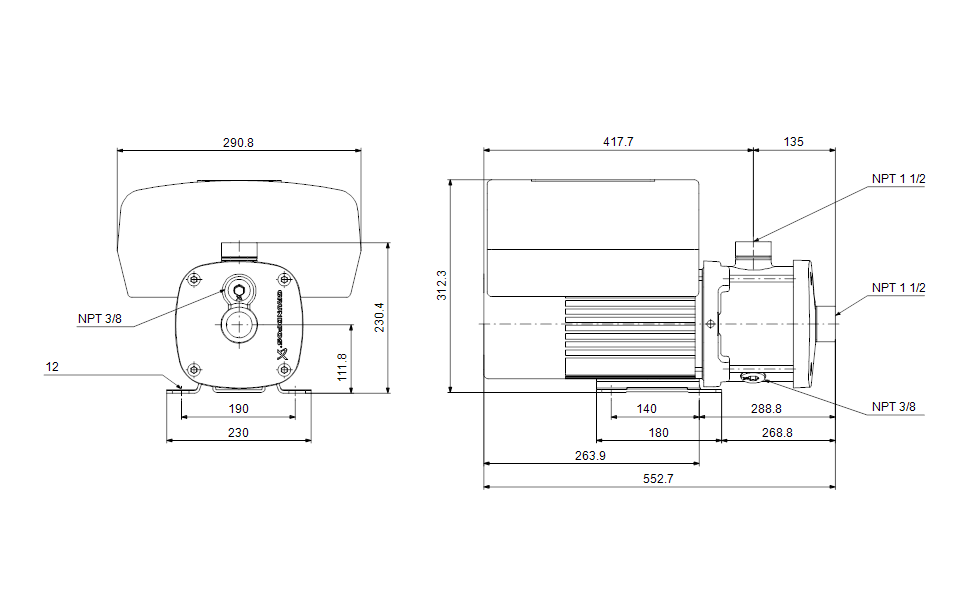

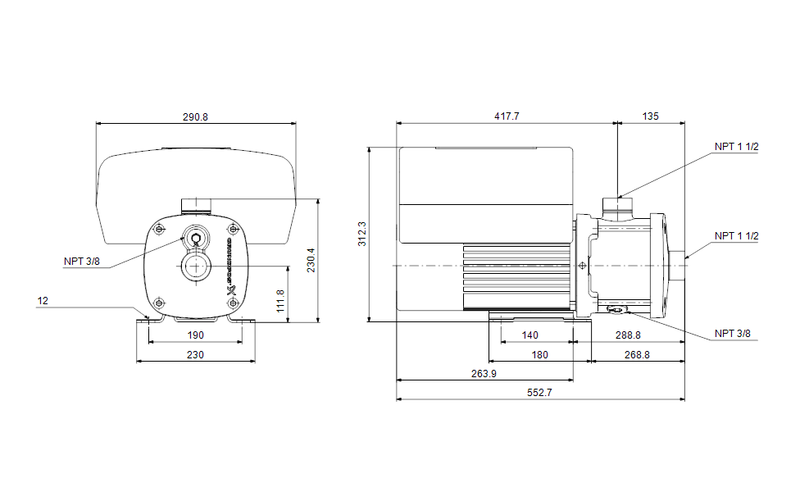

Dimensional Drawing
DWiring Diagram
