Grundfos 98548112 - CMBE 3-30 I-U-C-E-D-E
Grundfos 98548112 - CMBE 3-30 I-U-C-E-D-E
Grundfos 98548112 - CMBE 3-30 I-U-C-E-D-E
Grundfos 98548112 - CMBE 3-30 I-U-C-E-D-E
Grundfos 98548112 - CMBE 3-30 I-U-C-E-D-E
Grundfos 98548112 - CMBE 3-30 I-U-C-E-D-E

Grundfos 98548112 - CMBE 3-30 I-U-C-E-D-E

Save $2,185.00
GRUNDFOSSKU: 98548112
Price:
$2,829.00 $5,014.00
Non stocked product typically available in 95 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98548112 - CMBE 3-30 I-U-C-E-D-E This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Code for rubber EPDM
Maximum ambient temperature 122 °F
Density 62.29 lb/ft³
Maximum operating pressure 145.04 psi
Size of inlet connection 1
Selected liquid temperature 68 °F
Rated voltage 1 x 200-240 V
Pumped liquid Water
Size of outlet connection 1
Maximum current consumption 6.70-5.60 A
Liquid temperature range 32 .. 140 °F
Insulation class (IEC 85) F
Net weight 42.6 lb
Rated speed 360-4000 rpm
Gross weight 64.2 lb
Rated power - P2 0.782 HP
Enclosure class (IEC 34-5) IP55
Pressure rating for connection PN 10
Shaft Product name:CMBE 3-30 I-U-C-E-D-E
Type of outlet connection NPT(F)
Pipe connection Product name:CMBE 3-30 I-U-C-E-D-E
Config. file no 98498683
Length of cable NO CABLE m
Frequency converter Built-in
Sales region Namreg
Pipe connection standard ANSI B1.20.1
Approvals cULus
Rated flow 18.5 US gpm
Model A
Rubber EPDM
Housing Stainless steel
Approvals for drinking water CULUS DW NSF61
Return valve YES
Rated head 77.1 ft
Curve tolerance ISO9906:2012 3B
Impellers 2
Valve YES
Connection PN 10
Impeller Stainless steel
Tank volume 0.528 gal
Code for shaft seal AQQE
Pump housing Stainless steel
Type of inlet connection NPT(M)
Start pressure Integrated Frequency converter
Standard ANSI B1.20.1
Power plug No plug

Motor Curves

Dimensional Drawing

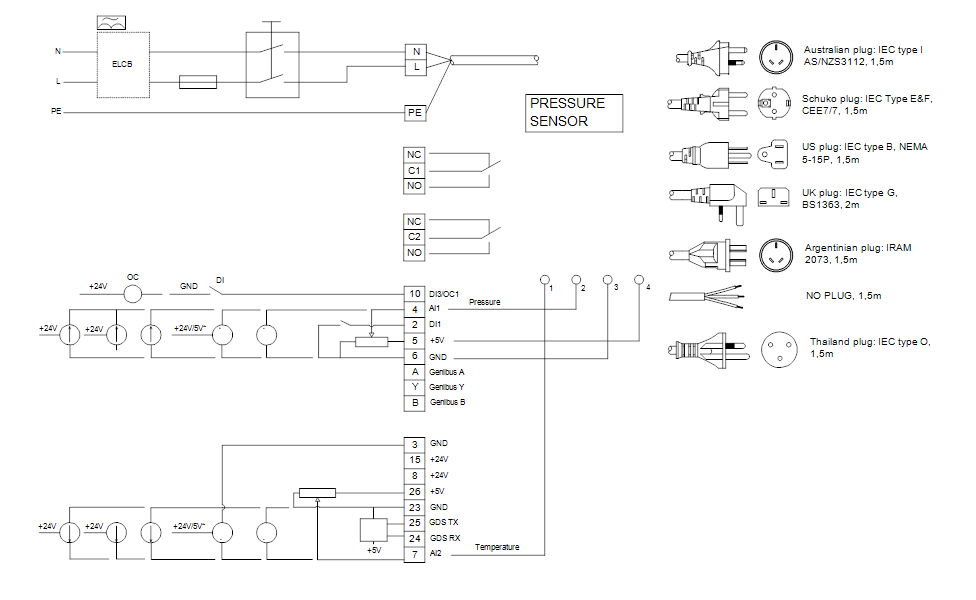

DWiring Diagram
