Grundfos 98548111 - CMBE 1-99 I-U-A-E-D-E
Grundfos 98548111 - CMBE 1-99 I-U-A-E-D-E
Grundfos 98548111 - CMBE 1-99 I-U-A-E-D-E
Grundfos 98548111 - CMBE 1-99 I-U-A-E-D-E
Grundfos 98548111 - CMBE 1-99 I-U-A-E-D-E
Grundfos 98548111 - CMBE 1-99 I-U-A-E-D-E

Grundfos 98548111 - CMBE 1-99 I-U-A-E-D-E

Save $2,621.00
GRUNDFOSSKU: 98548111
Price:
$3,395.00 $6,016.00
Non stocked product typically available in 95 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

CMBE 1-99 I-U-A-E-D-E | The Grundfos CMBE booster is a compact booster system for water supply in domestic applications. The integrated speed controller enables the CMBE booster to keep constant pressure in the pipe system. A pressure sensor monitoring changes in the water consumption signals the speed controller to change motor speed to adapt performance to the new state. The CMBE booster is very easy to install. When the system has been connected to the pipes, it is all a matter of inserting the plug into a power supply socket, and the system is operational. The CMBE booster consists of the following: CME pump with integrated frequency converter
Five-way valve
expansion tank
pressure gauge The Grundfos CMBE booster requires no external motor protection. The MGE motor incorporates thermal protection against slow overloading and blocking (IEC 34. 11: TP 211). The Grundfos CMBE booster is mainly used for domestic and light commercial water supply or booster systems.

Code for rubber EPDM
Maximum ambient temperature 122 °F
Density 62.29 lb/ft³
Maximum operating pressure 145.04 psi
Size of inlet connection 1
Selected liquid temperature 68 °F
Rated voltage 1 x 200-240 V
Pumped liquid Water
Size of outlet connection 1
Maximum current consumption 6.70-5.60 A
Liquid temperature range 32 .. 140 °F
Insulation class (IEC 85) F
Net weight 40.6 lb
Rated speed 360-4000 rpm
Gross weight 62.2 lb
Rated power - P2 1.5 HP
Enclosure class (IEC 34-5) IP55
Pressure rating for connection PN 10
Shaft Product name:CMBE 1-99 I-U-A-E-D-E
Type of outlet connection NPT(F)
Pipe connection Product name:CMBE 1-99 I-U-A-E-D-E
Config. file no 98498327
Length of cable NO CABLE m
Frequency converter Built-in
Sales region Namreg
Pipe connection standard ANSI B1.20.1
Approvals cULus
Rated flow 10.6 US gpm
Model A
Rubber EPDM
Housing Stainless steel
Approvals for drinking water CULUS DW NSF61
Return valve YES
Rated head 204.4 ft
Curve tolerance ISO9906:2012 3B
Impellers 7
Valve YES
Connection PN 10
Impeller Stainless steel
Tank volume 0.528 gal
Code for shaft seal AQQE
Pump housing Stainless steel
Type of inlet connection NPT(M)
Start pressure Integrated Frequency converter
Standard ANSI B1.20.1
Power plug No plug

Motor Curves

Dimensional Drawing

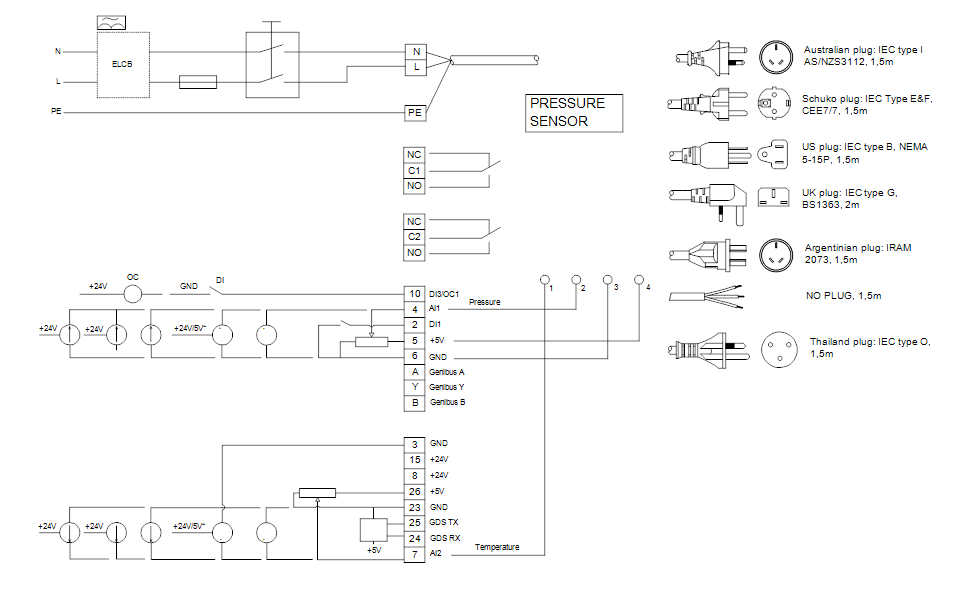

DWiring Diagram
