Grundfos 98548110 - CMBE 1-75 I-U-A-E-D-E

Save $1,902.10
GRUNDFOSSKU: 98548110

Price:
Sale price$3,111.90 Regular price$5,014.00
Non stocked product typically available in 95 business days
or Call for most up to date lead times. (781) 281-8905

Description

CMBE 1-75 I-U-A-E-D-E | The Grundfos CMBE booster is a compact booster system for water supply in domestic applications. The integrated speed controller enables the CMBE booster to keep constant pressure in the pipe system. A pressure sensor monitoring changes in the water consumption signals the speed controller to change motor speed to adapt performance to the new state. The CMBE booster is very easy to install. When the system has been connected to the pipes, it is all a matter of inserting the plug into a power supply socket, and the system is operational. The CMBE booster consists of the following: CME pump with integrated frequency converter
Five-way valve
expansion tank
pressure gauge The Grundfos CMBE booster requires no external motor protection. The MGE motor incorporates thermal protection against slow overloading and blocking (IEC 34. 11: TP 211). The Grundfos CMBE booster is mainly used for domestic and light commercial water supply or booster systems.

Approvals cULus
Approvals for drinking water CULUS DW NSF61
Code for rubber EPDM
Code for shaft seal AQQE
Config. file no 98498327
Connection PN 10
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frequency 60 Hz
Frequency converter Built-in
Gross weight 60.7 lb
Housing Stainless steel
I MAX 6,70-5,60A
Impeller Stainless steel
Impellers 5
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Length of cable NO CABLE m
Liquid max temp 140°F
Liquid temperature range 32 .. 140 °F
Maximum ambient temperature 122 °F
Maximum current consumption 6.70-5.60 A
Maximum operating pressure 145.04 psi
Model A
n rpm F
Net weight 39.1 lb
P2 kW 1.5 HP
Phase 1
Pipe connection Product name:CMBE 1-75 I-U-A-E-D-E
Pipe connection standard ANSI B1.20.1
Power plug No plug
Pressure rating for connection PN 10
Pump housing Stainless steel
Pumped liquid Water
Rated flow 10.6 US gpm
Rated head 161.4 ft
Rated power - P2 1.5 HP
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Return valve YES
Rubber EPDM
Sales region Namreg
Selected liquid temperature 68 °F
Shaft Product name:CMBE 1-75 I-U-A-E-D-E
Shaft seal AQQE
Size of inlet connection 1
Size of outlet connection 1
Standard ANSI B1.20.1
Start pressure Integrated Frequency converter
Tank volume 0.528 gal
Type of inlet connection NPT(M)
Type of outlet connection NPT(F)
Valve YES

Motor Curves

Dimensional Drawing

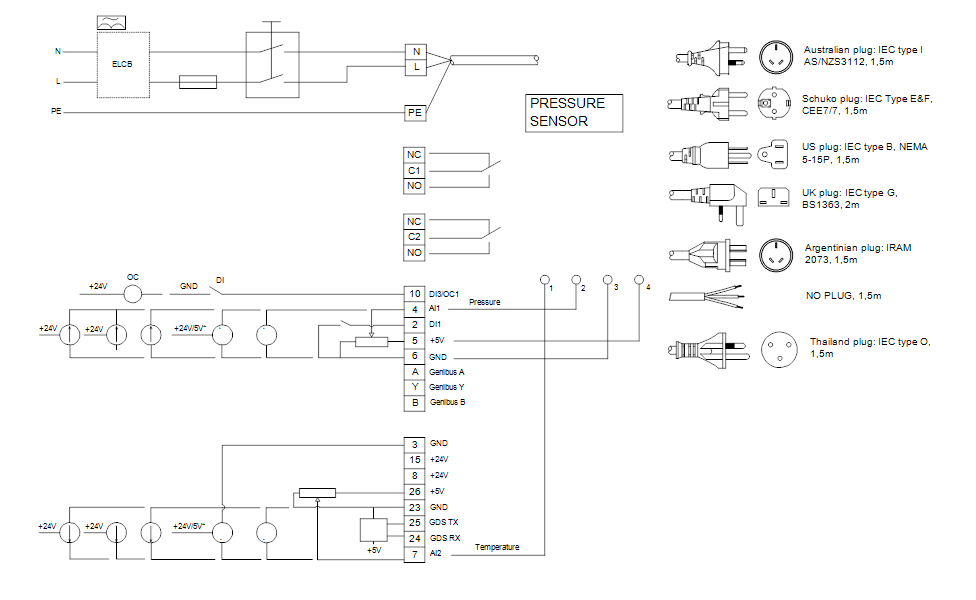

DWiring Diagram
