Grundfos 99383675 - CM 5-3 A-R-A-V-AQQV E1-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99383675

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99383675 - CM 5-3 A-R-A-V-AQQV E1-A-A-N This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713828226303
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code R
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80CB
Frequency converter NONE
Gross weight 38.6 lb
Housing Cast iron
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 145 psi / 194 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 33.0 lb
Pump housing Cast iron
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 5
Rated flow 24.8 US gpm
Rated head 107.5 ft
Rated power - P2 1.1 kW
Rated speed 3430-3470 rpm
Rated voltage 3 x 208-230YY/440-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 80CB
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 inch
Standard IEC
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection Rp
Version A

Motor Curves

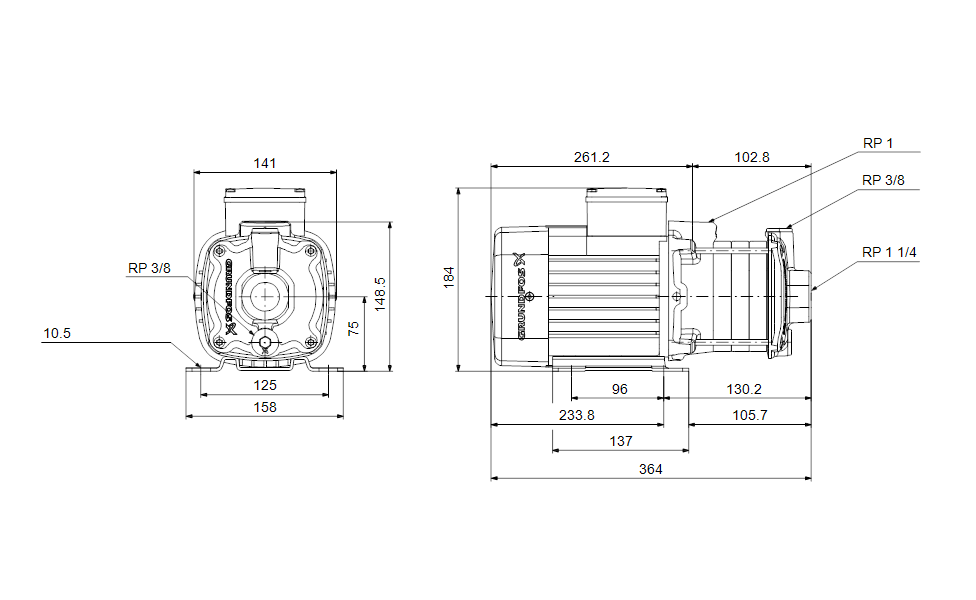

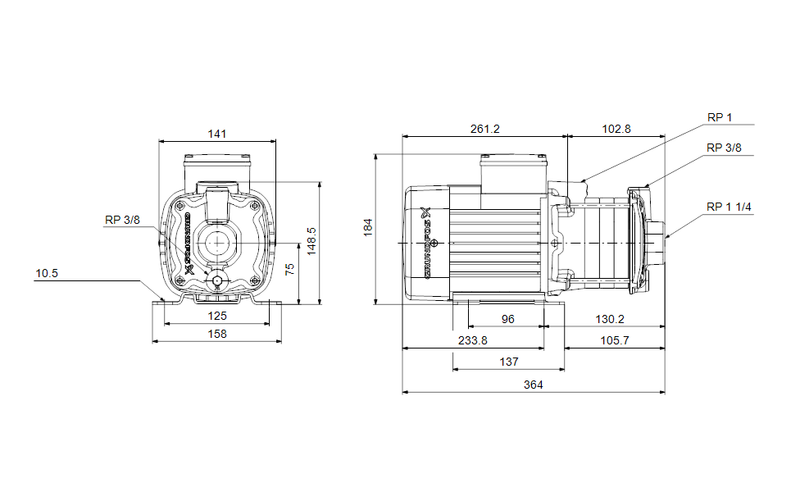

Dimensional Drawing

DWiring Diagram
