Grundfos 99377405 - CM 3-5 A-S-I-V-AQQV H-A-A-N | Horizontal | End Suction | Centrifugal

GRUNDFOSSKU: 99377405

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99377405 - CM 3-5 A-S-I-V-AQQV H-A-A-N This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713828119919
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) IP55
Frame size 80CB
Frequency converter NONE
Gross weight 19.0 kg
Housing Stainless steel
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 5
Insulation class (IEC 85) F
Liquid temperature range -20 .. 90 °C
Mains frequency 60 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 16 bar / 90 °C
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 16.5 kg
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -20 .. 55 °C
Rated current 1.72 A
Rated flow 3.72 m³/h
Rated head 49.62 m
Rated power - P2 1.1 kW
Rated speed 3450 rpm
Rated voltage 3 x 575 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 20 °C
Service factor 1
Size 80CB
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 7.3
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

Dimensional Drawing

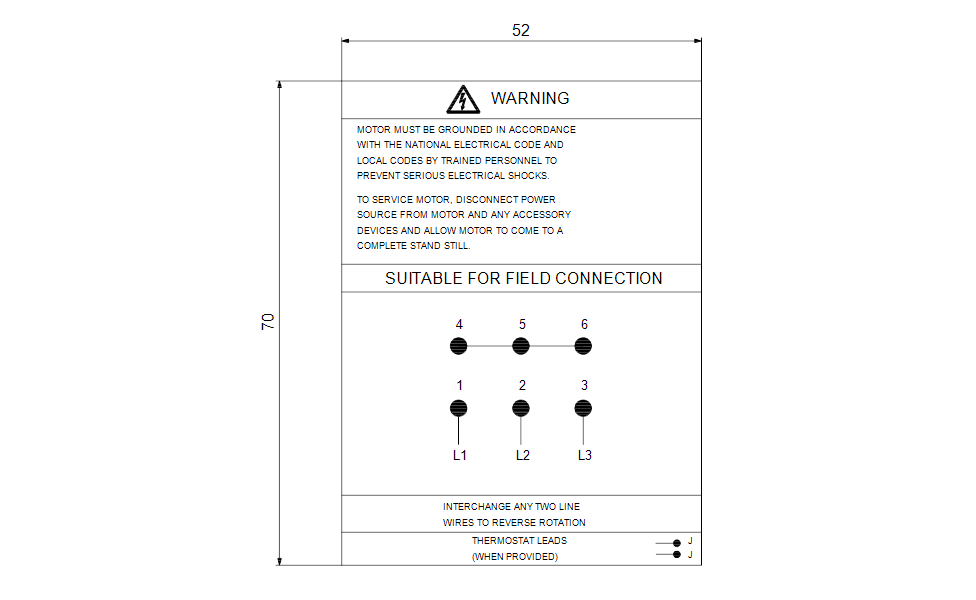

DWiring Diagram
