Close Coupled Motor, TEFC, 20 HP, 3600 RPM, 230/460V, 256JP Frame, C-Face With Feet 460V 60HZ Three Phase 20 HP Cast Iron

WorldWide ElectricSKU: PEWWE20-36-256JP

Price:
Sale price$1,835.76
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

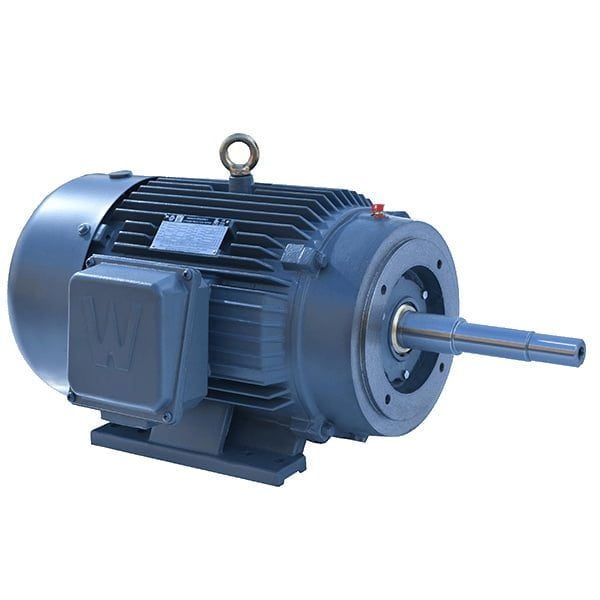

WorldWide Electric Close Coupled Pump Motor - 20 HP

Introducing the PEWWE 20 HP Close Coupled Pump Motor from WorldWide Electric, designed for high efficiency and reliable performance. This TEFC (Totally Enclosed Fan Cooled) motor operates at 3600 RPM and is suitable for 230/460V three-phase applications. With a robust 256JP frame and a durable cast iron construction, this motor is built to withstand the rigors of demanding pumping tasks.

Key features include:

  • Power: 20 HP
  • Speed: 3600 RPM
  • Voltage: 230/460V
  • Frame: 256JP
  • Type: Close Coupled, TEFC
  • Mounting: C-Face with Feet
  • Efficiency: Premium Efficiency

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, and don’t hesitate to reach out if you need help locating the right item.

Upgrade your pumping system with the reliable and efficient WorldWide Electric Close Coupled Pump Motor today!

Category Electric Motors
Subcategory Close Coupled Pump Motors - TEFC
Approximate Weight (lbs) 297
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 91.0
Frame Size 256JP
Frequency 60/50 HZ*
Full Load Amps 23.1
Horsepower 20
Insulation Class Class F
Mounting Type C-Face with Feet
Phase Three-Phase
RPM 3600
Service Factor 1.15
Shaft Type JP
Voltage 230/460

Motor Curves
