Close Coupled Motor, TEFC, 20 HP, 1800 RPM, 230/460V, 256JP Frame, C-Face With Feet 460V 60HZ Three Phase 20 HP Cast Iron

WorldWide ElectricSKU: PEWWE20-18-256JP

Price:
Sale price$1,882.79
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

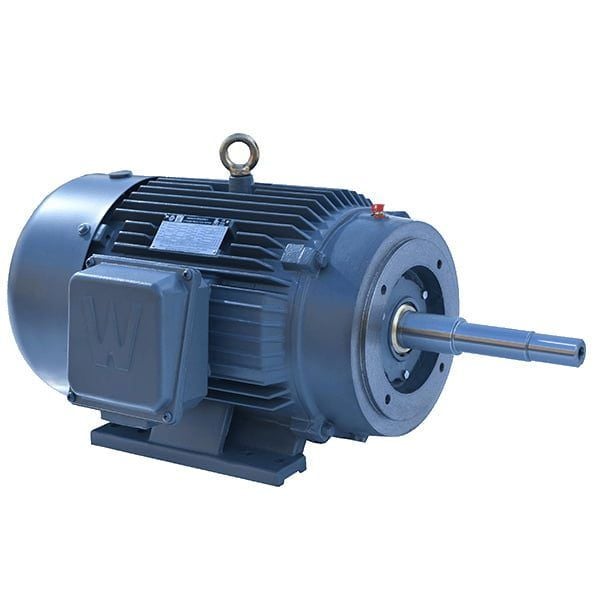

WorldWide Electric Close Coupled Pump Motor - 20 HP

Introducing the PEWWE 20 HP Close Coupled Motor, designed for optimal performance in various pumping applications. This TEFC (Totally Enclosed Fan Cooled) motor operates at 1800 RPM and is compatible with 230/460V power supply, making it a versatile choice for your needs.

Key features include:

  • Power: 20 HP
  • Speed: 1800 RPM
  • Voltage: 230/460V
  • Frame: 256JP
  • Type: Close Coupled Pump Motor
  • Material: Cast Iron
  • Efficiency: Premium Efficiency
  • Mounting: C-Face with Feet
  • Phase: Three Phase
  • Frequency: 60 Hz

This motor is engineered for durability and reliability, making it an excellent choice for industrial and commercial applications. With its rigid mounting design, it ensures stability and ease of installation.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, and don’t hesitate to reach out if you need help locating the right item.

Category Electric Motors
Subcategory Close Coupled Pump Motors - TEFC
Approximate Weight (lbs) 304
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 93.0
Frame Size 256JP
Frequency 60/50 HZ*
Full Load Amps 23.7
Horsepower 20
Insulation Class Class F
Mounting Type C-Face with Feet
Phase Three-Phase
RPM 1800
Service Factor 1.15
Shaft Type JP
Voltage 230/460
