Baldor ZDPM18015C-BV - 15 HP, 1800RPM, 3 Phase, 60HZ, 1838C, Tebc, Foot, 60HZ Three Phase 15 HP 1838°C

Save $4,217.00
BaldorSKU: ZDPM18015C-BV

Price:
Sale price$12,651.00 Regular price$16,868.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

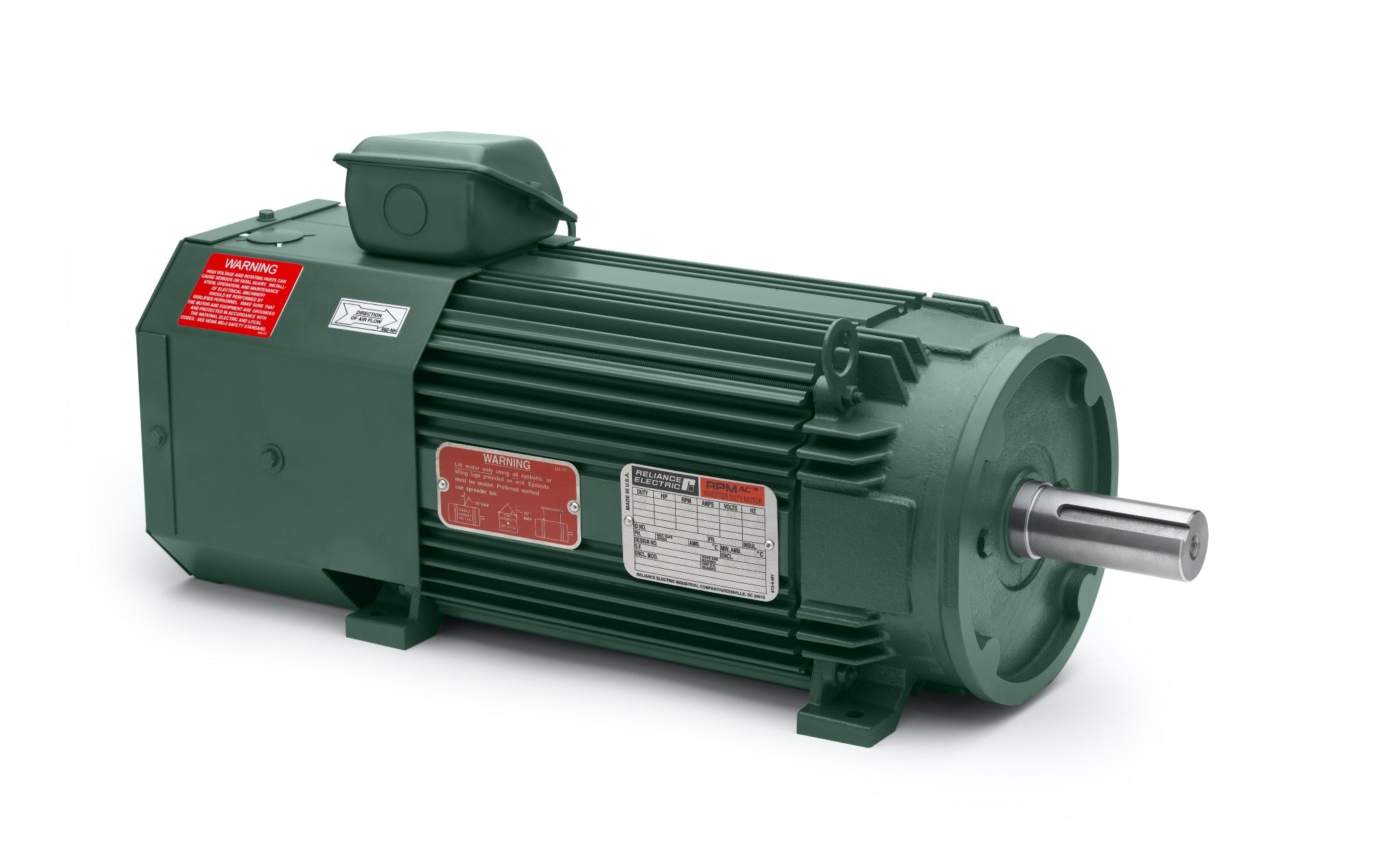

Baldor ZDPM18015C-BV - 15 HP AC Laminated Frame RPMAC Motor

Introducing the Baldor ZDPM18015C-BV, a high-performance 15 HP AC Laminated Frame RPMAC Motor designed for reliable operation in various industrial applications. With a robust 1800 RPM speed and a three-phase power supply at 60Hz, this motor is engineered to deliver exceptional efficiency and durability.

Key Features:

  • Power: 15 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 1838C
  • Enclosure Type: TEBC (Totally Enclosed, Fan Cooled)
  • Mounting: Foot-mounted

The Baldor ZDPM18015C-BV is ideal for applications requiring a reliable and efficient motor solution. Whether you are replacing an existing motor or upgrading your equipment, this motor is a perfect choice.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

UPC 781568468661
Supplier Part Number ZDPM18015C-BV
Category AC Motors
Subcategory AC Laminated Frame - RPMAC Motors
Product Family General Industrial
Agency Approvals CCSA US
Approximate Weight (lbs) 220.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type No Grease
Catalog Number ZDPM18015C-BV
Current @ Voltage 16.000 A @ 460.0 V
Duty Rating CONT
Enclosure TEBC
Feedback Device TACHOMETER
Frame FL1838C
Frame Material Aluminum
Frame Prefix FL
Frequency 60.00 Hz
Heater Indicator No Heater
High Voltage Full Load Amps 16.0 a
Insulation Class H
Motor Letter Type Permanent Magnet Brush Type
Motor Standards NEMA
Mounting Arrangement F3
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 24.46 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
