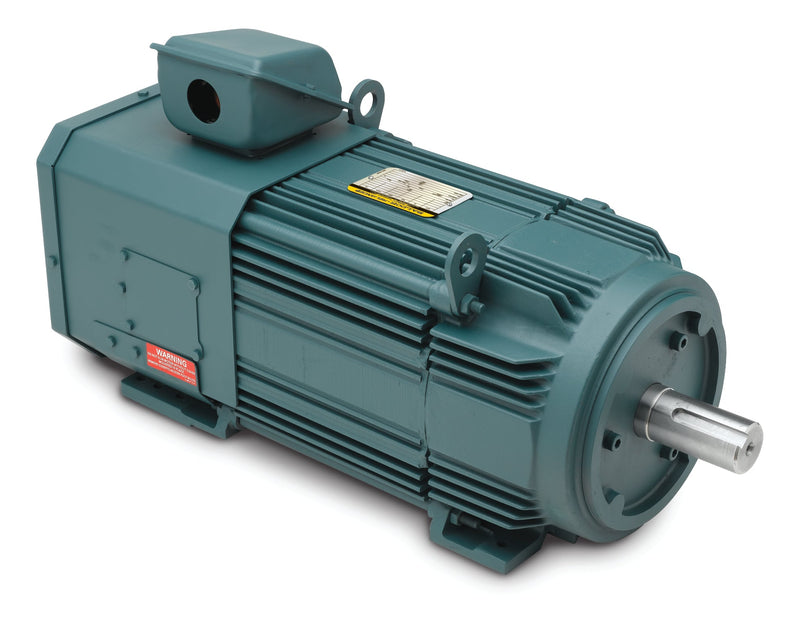

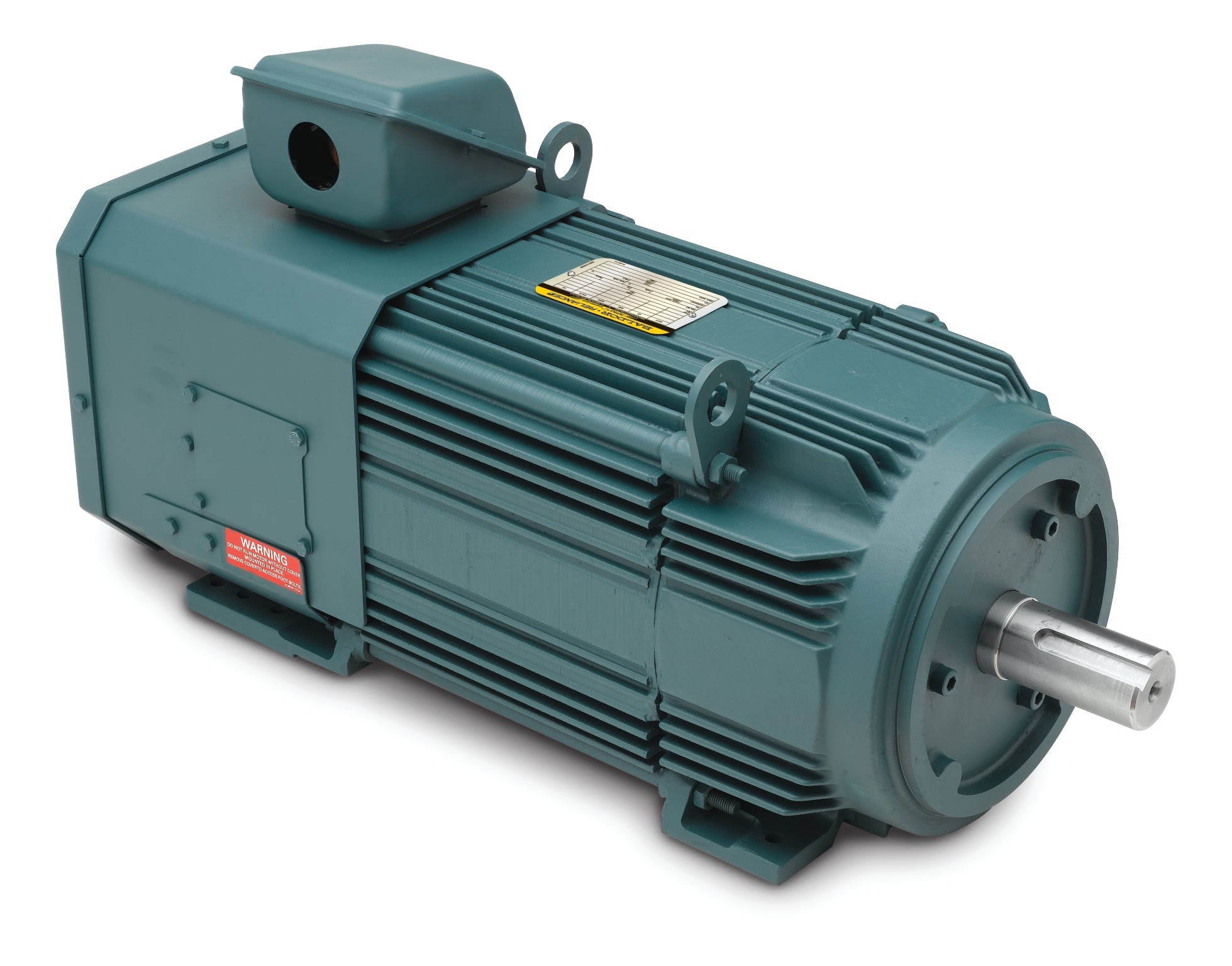

Baldor ZDFRPM21204C - 20 HP, 1750, 460V, FL2162, TEFC, F3 460V 20 HP

Save $3,072.75
BaldorSKU: ZDFRPM21204C

Price:
Sale price$9,218.25 Regular price$12,291.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance AC Laminated Frame - RPMAC Motors:

20HP, 1750, 460V, FL2162, TEFC, F3

Product Code: ZDFRPM21204C

UPC 781568468555
Supplier Part Number ZDFRPM21204C
Category AC Motors
Subcategory AC Laminated Frame - RPMAC Motors
Product Family General Industrial
Agency Approvals CCSA US
Approximate Weight (lbs) 290.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number ZDFRPM21204C
Current @ Voltage 27.000 A @ 460.0 V
Duty Rating CONT
Enclosure TEFC
Feedback Device ENCODER
Frame FL2162CZ
Frame Material Exposed Laminations
Frame Prefix FL
Frequency 60.00 Hz
Heater Indicator No Heater
High Voltage Full Load Amps 27.0 a
Insulation Class H
IP Rating NONE
Motor Letter Type Three Phase
Motor Standards NEMA
Mounting Arrangement F3
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 29.62 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1775 rpm
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ

Motor Curves
