Baldor ZDFRPM18104C - 10 HP, 1750RPM, 3 Phase, 60HZ, 1844C, TEFC, Foot 60HZ Three Phase 10 HP 1844°C

Save $2,902.75
BaldorSKU: ZDFRPM18104C

Price:
Sale price$8,708.25 Regular price$11,611.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

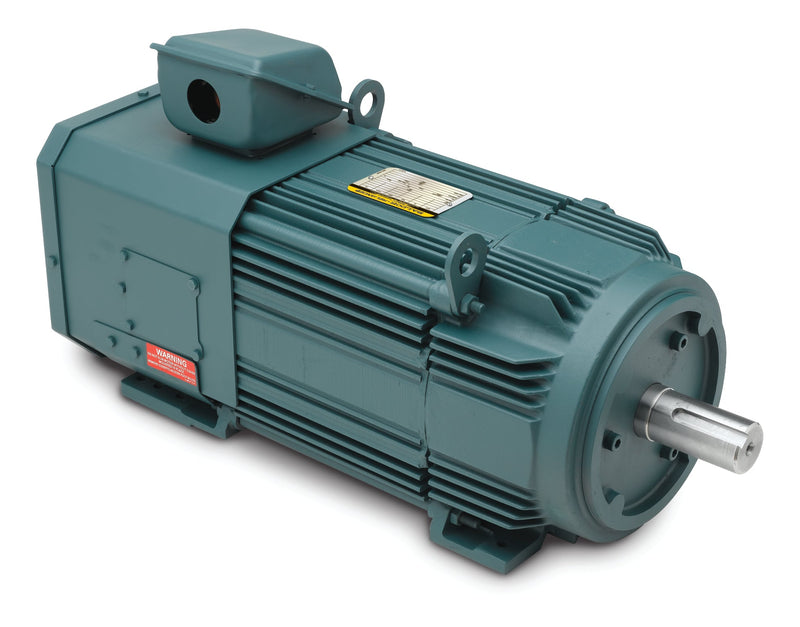

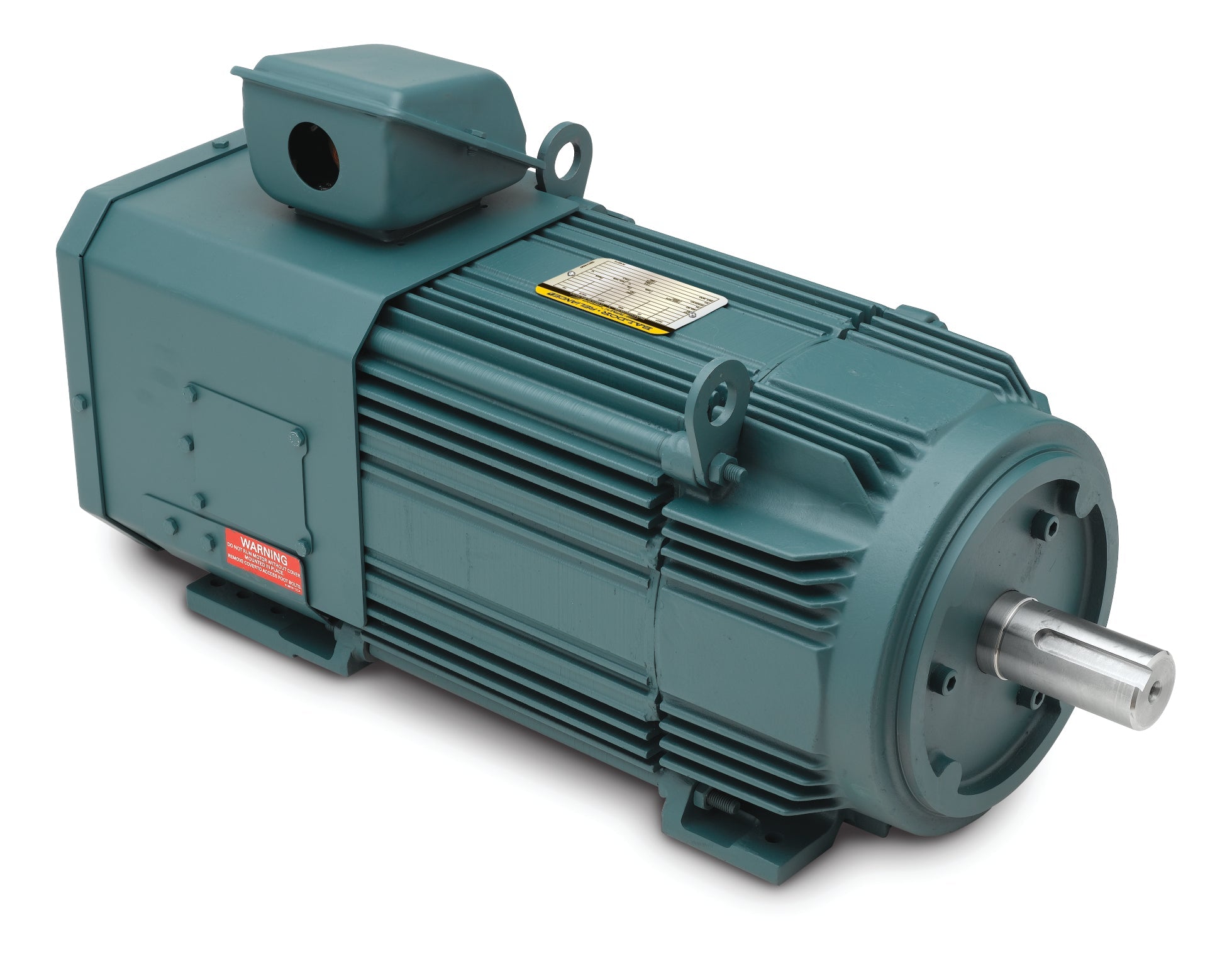

Baldor ZDFRPM18104C - 10 HP AC Laminated Frame RPMAC Motor

Introducing the Baldor ZDFRPM18104C, a high-performance 10 HP AC Laminated Frame RPMAC Motor designed for reliability and efficiency. Operating at 1750 RPM and compatible with 3-phase, 60Hz power supply, this motor is ideal for various industrial applications. With a robust TEFC (Totally Enclosed Fan Cooled) design, it ensures optimal performance while protecting against dust and moisture.

Specifications:

  • Power: 10 HP
  • Speed: 1750 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 1844C
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: ZDFRPM18104C

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ZDFRPM18104C to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568468548
Supplier Part Number ZDFRPM18104C
Category AC Motors
Subcategory AC Laminated Frame - RPMAC Motors
Product Family General Industrial
Agency Approvals CCSA US
Approximate Weight (lbs) 201.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type No Grease
Catalog Number ZDFRPM18104C
Current @ Voltage 13.900 A @ 460.0 V
Duty Rating CONT
Enclosure TEFC
Feedback Device ENCODER
Frame FL1844C
Frame Material Aluminum
Frame Prefix FL
Frequency 60.00 Hz
Heater Indicator No Heater
High Voltage Full Load Amps 13.9 a
Insulation Class H
Motor Letter Type Three Phase
Motor Standards NEMA
Mounting Arrangement F3
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 25.33 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1
Shaft Diameter 1.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1765 rpm
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
