Baldor VUHM3542 - .75/.56KWHP, 1765RPM, 3 Phase, 60HZ, 56C, 3514M, T 60HZ Three Phase 3514 M Cable 56°C

Save $180.75
BaldorSKU: VUHM3542

Price:
Sale price$542.25 Regular price$723.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

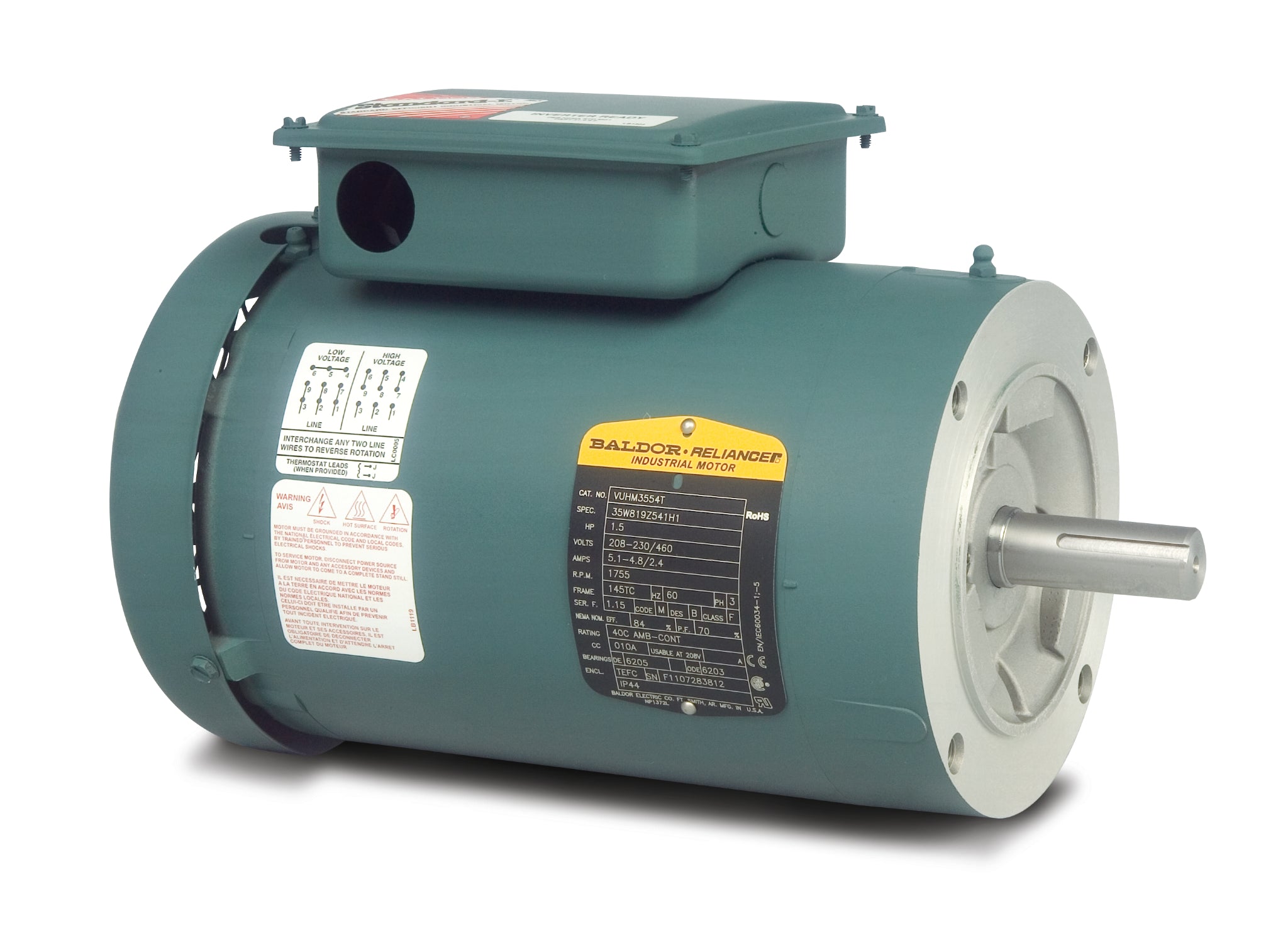

Baldor VUHM3542 General Unit Handling Motor

The Baldor VUHM3542 is a high-performance General Unit Handling Motor designed for reliable operation in various industrial applications. With a power rating of .75/.56 KWHP and a speed of 1765 RPM, this 3-phase motor operates efficiently at 60Hz, making it an ideal choice for your pumping needs.

Specifications:

  • Power: .75/.56 KWHP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Temperature Rating: 56°C
  • Product Code: VUHM3542

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and durability, making it suitable for various applications, including pump operations. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs.

For assistance, please check your current pump for the exact part number or SKU that matches the Baldor VUHM3542. If you have any questions or need help finding the right item, feel free to call us at (781) 281-8905.

UPC 781568502754
Supplier Part Number VUHM3542
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals C UR US, CE, CURUS, UKCA, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 35.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VUHM3542
Current @ Voltage 2.420 A @ 230.0 V, 2.420 A @ 208.0 V, 1.210 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F3
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 13.23 IN
Phase 3
Power Factor 74
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
