Baldor VUHM3542-5 - .75 HP, 1765RPM, 3 Phase, 60HZ, 56C, 3514M, TEFC, F3 60HZ Three Phase 75 HP 3514 M Cable 56°C

Save $180.75
BaldorSKU: VUHM3542-5

Price:
Sale price$542.25 Regular price$723.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

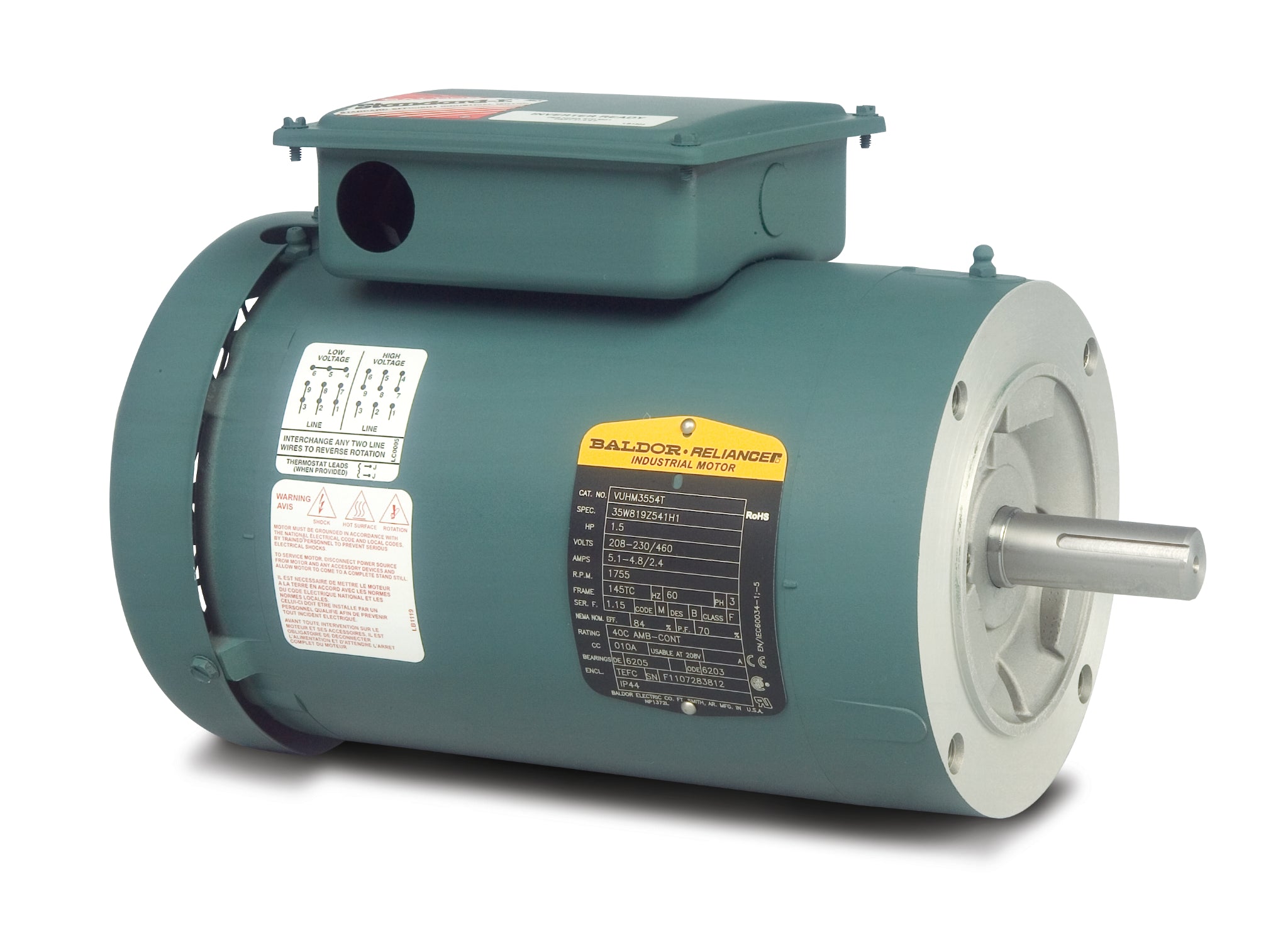

Baldor-Reliance General Unit Handling Motor - Model VUHM3542-5

Upgrade your equipment with the Baldor VUHM3542-5, a high-performance general unit handling motor designed for reliability and efficiency. This motor features a power output of .75 HP and operates at 1765 RPM, making it ideal for various industrial applications.

Key specifications include:

  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 56C
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Service Factor: F3
  • Product Code: VUHM3542-5

This motor is perfect for applications requiring robust performance and durability. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs. If you have questions or need assistance in locating the correct pump, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in finding the right item, our team is here to help!

UPC 781568502761
Supplier Part Number VUHM3542-5
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 34.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VUHM3542-5
Current @ Voltage .960 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F3
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 13.23 IN
Phase 3
Power Factor 73
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
