Baldor VSWDM3542 - .75 HP, 1765RPM, 3 Phase, 60HZ, 56C, 3514M, Tenv, F1 60HZ Three Phase 75 HP 3514 M Cable 56°C

Save $336.75
BaldorSKU: VSWDM3542

Price:
Sale price$1,010.25 Regular price$1,347.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

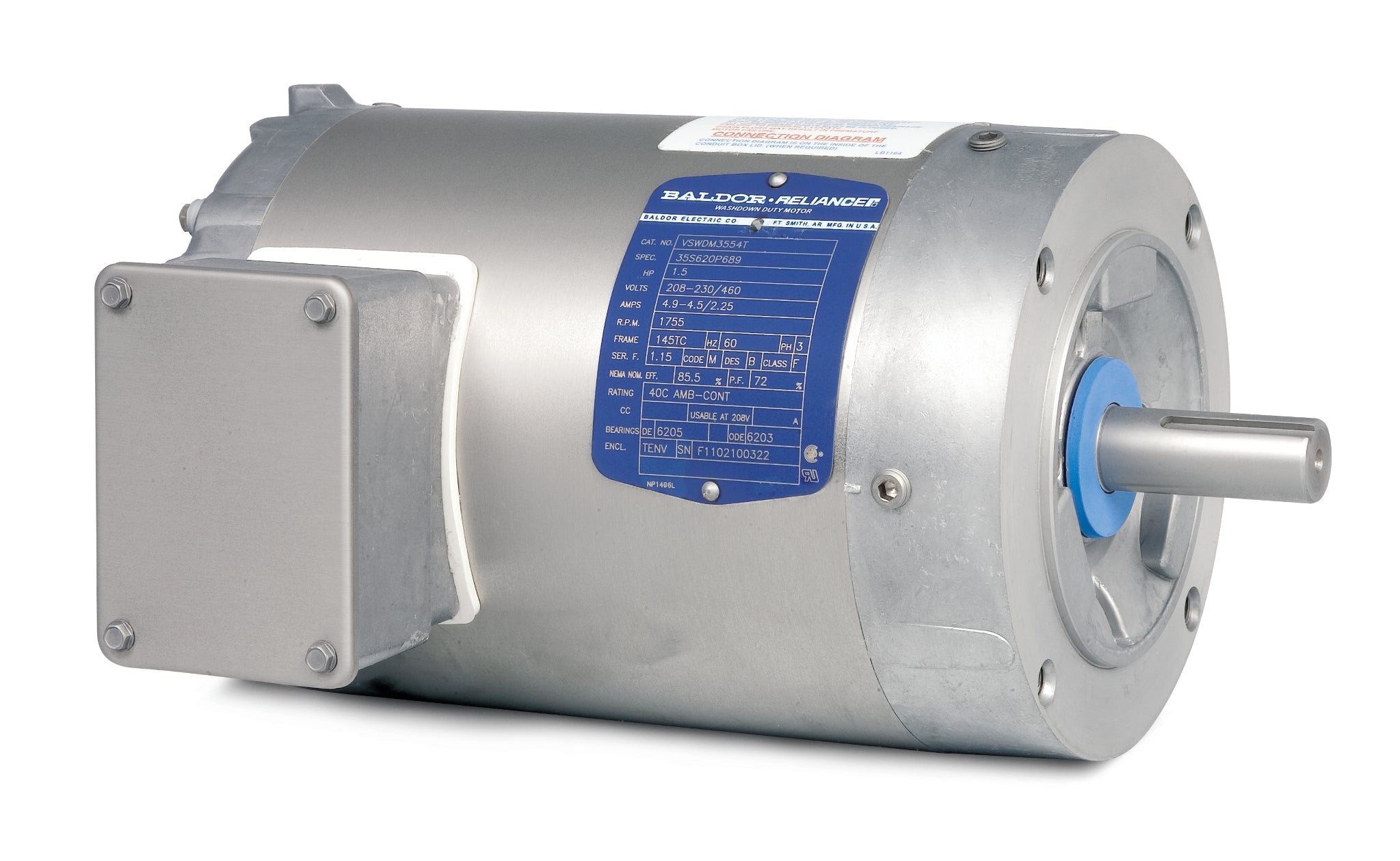

Baldor VSWDM3542 - .75 HP Paint Free Motor

Upgrade your pumping system with the Baldor VSWDM3542, a high-performance .75 HP, 1765 RPM, 3-phase motor designed for efficiency and durability. This motor operates at 60Hz and features a 56C frame, making it ideal for various industrial applications.

Key Features:

  • Power: .75 HP
  • Speed: 1765 RPM
  • Phase: 3-Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Type: Totally Enclosed Non-Ventilated (TENV)
  • Product Code: VSWDM3542

This Baldor-Reliance Paint Free Motor is engineered for reliability and is perfect for applications requiring a robust and efficient motor solution. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right fit for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VSWDM3542 to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568154977
Supplier Part Number VSWDM3542
Category AC Motors
Subcategory Paint Free Motors
Product Family Wash Down Paint Free
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 31.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VSWDM3542
Current @ Voltage 1.200 A @ 460.0 V, 2.400 A @ 230.0 V, 2.420 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 11.06 IN
Phase 3
Power Factor 74
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
