Baldor VSSWDM3542 - 0.75 HP, 1765RPM, 3 Phase, 60HZ, 56C, 3514M, Tenv, F 60HZ Three Phase 0.75 HP 3514 M Cable Stainless Steel 56°C

Save $558.25
BaldorSKU: VSSWDM3542

Price:
Sale price$1,674.75 Regular price$2,233.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

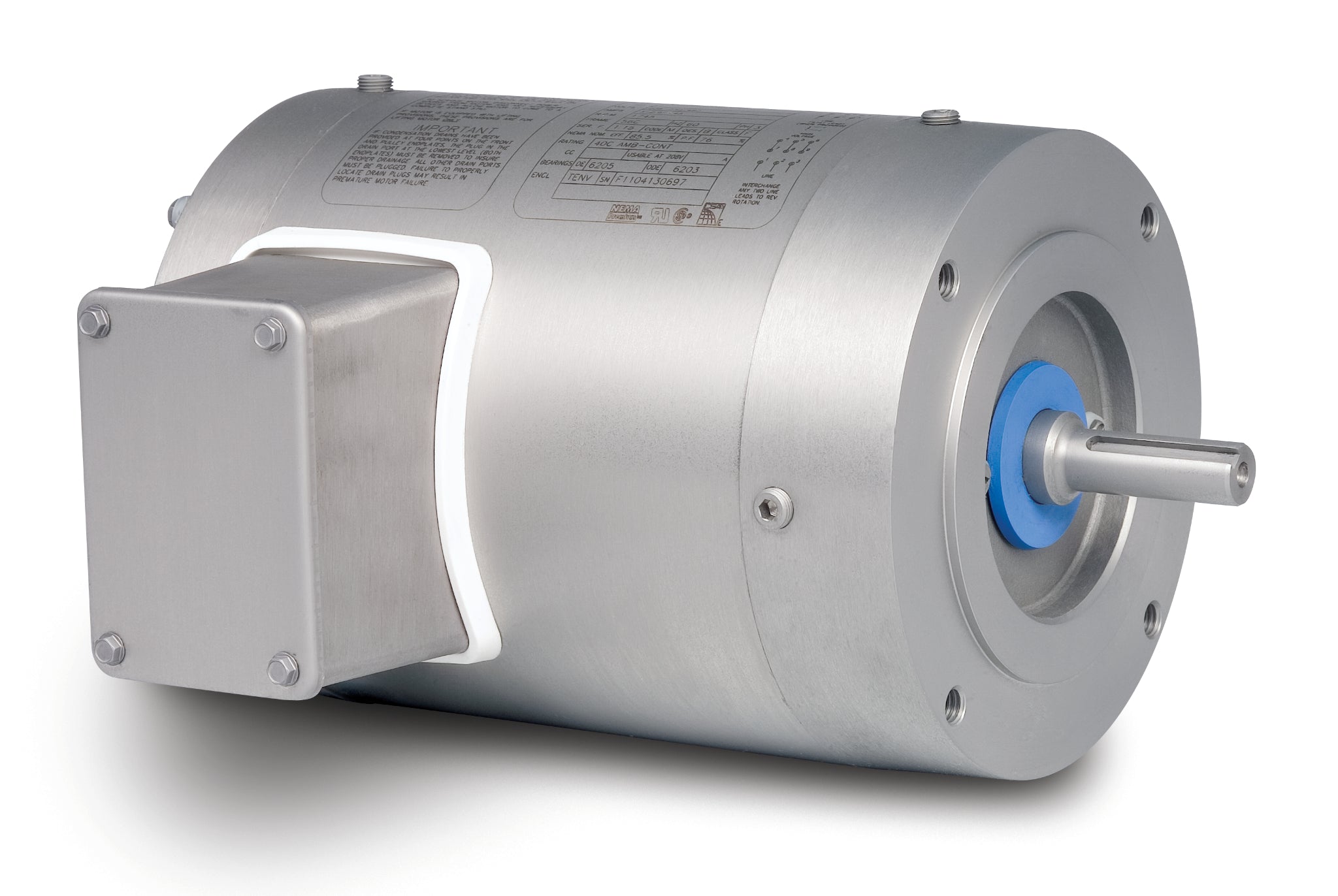

Baldor-Reliance Stainless Steel Motor - Model VSSWDM3542

Upgrade your pumping system with the Baldor VSSWDM3542, a high-performance stainless steel motor designed for durability and efficiency. This 0.75 HP motor operates at 1765 RPM and is engineered for three-phase applications at 60Hz, making it an ideal choice for various industrial and commercial pumping needs.

  • Power: 0.75 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Temperature Rating: 56°C
  • Frame Size: 3514M
  • Enclosure Type: TENV (Totally Enclosed Non-Ventilated)

This motor is built to withstand harsh environments, making it a reliable choice for your pumping applications. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VSSWDM3542 to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568555521
Supplier Part Number VSSWDM3542
Category AC Motors
Subcategory Stainless Steel Motors
Product Family Wash Down All Stainless Steel
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 42.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VSSWDM3542
Current @ Voltage 1.210 A @ 460.0 V, 2.420 A @ 208.0 V, 2.420 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 11.09 IN
Phase 3
Power Factor 74
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 208 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
