Baldor VSSWDM3541 - .75 HP, 3450RPM, 3 Phase, 60HZ, 56C, 3518M, Tenv, F1 60HZ Three Phase 75 HP 3518 M Cable Stainless Steel 56°C

Save $519.50
BaldorSKU: VSSWDM3541

Price:
Sale price$1,558.50 Regular price$2,078.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

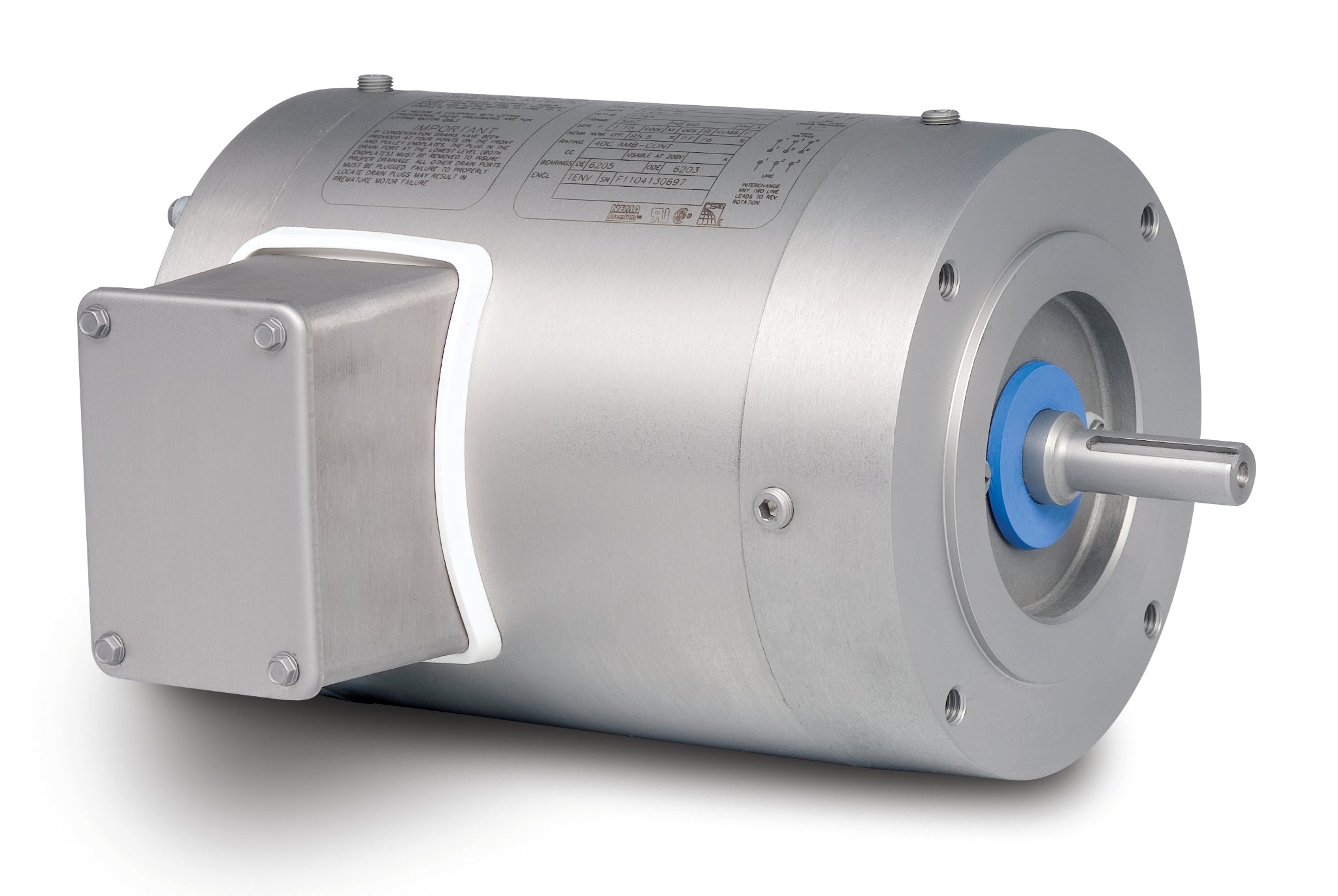

Baldor-Reliance Stainless Steel Motor - VSSWDM3541

Upgrade your pumping system with the Baldor VSSWDM3541, a high-performance stainless steel motor designed for durability and efficiency. This .75 HP motor operates at 3450 RPM and is engineered for three-phase applications at 60Hz. With a 56C frame and TENV (Totally Enclosed Non-Ventilated) design, it ensures reliable performance in various environments.

Key Features:

  • Power: .75 HP
  • Speed: 3450 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Design: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: VSSWDM3541

This motor is ideal for a wide range of applications, particularly in pump systems where reliability and efficiency are paramount. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VSSWDM3541 to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568555538
Supplier Part Number VSSWDM3541
Category AC Motors
Subcategory Stainless Steel Motors
Product Family Wash Down All Stainless Steel
Agency Approvals C UR US, CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 41.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VSSWDM3541
Current @ Voltage 2.200 A @ 230.0 V, 2.300 A @ 208.0 V, 1.100 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.1 a
Insulation Class F
Inverter Code Not Inverter
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3518M
Mounting Arrangement F1
Number of Poles 2
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 11.09 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
