Baldor VSSWDM3537 - .5 HP, 3450RPM, 3 Phase, 60HZ, 56C, 3512M, Tenv, F1 60HZ Three Phase 5 HP 3512 M Cable Stainless Steel 56°C

Save $500.25
BaldorSKU: VSSWDM3537

Price:
Sale price$1,500.75 Regular price$2,001.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

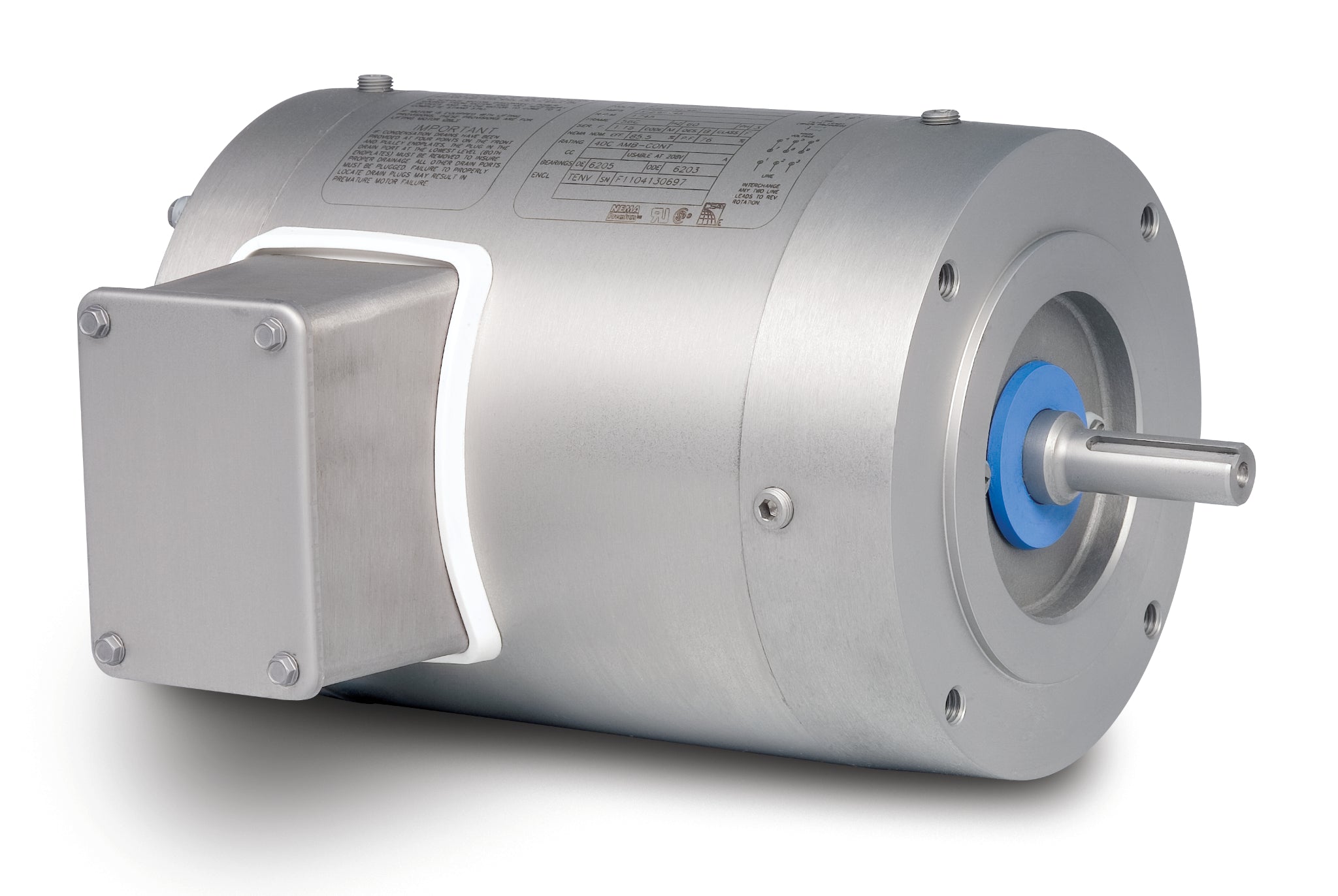

Baldor-Reliance Stainless Steel Motor - Model VSSWDM3537

Upgrade your pumping system with the Baldor VSSWDM3537, a high-performance stainless steel motor designed for durability and efficiency. This motor features:

  • Power: 0.5 HP
  • Speed: 3450 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 56C
  • Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
  • Model Number: 3512M

This motor is ideal for a variety of applications, providing reliable performance in demanding environments. Its stainless steel construction ensures resistance to corrosion, making it perfect for use in wet or harsh conditions.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568555545
Supplier Part Number VSSWDM3537
Category AC Motors
Subcategory Stainless Steel Motors
Product Family Wash Down All Stainless Steel
Agency Approvals CURUS, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 37.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VSSWDM3537
Current @ Voltage .900 A @ 460.0 V, 1.800 A @ 230.0 V, 1.900 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.9 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3512M
Mounting Arrangement F1
Number of Poles 2
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 11.09 IN
Phase 3
Power Factor 76
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V, 208 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
