Description
Baldor Replacement Part — Component

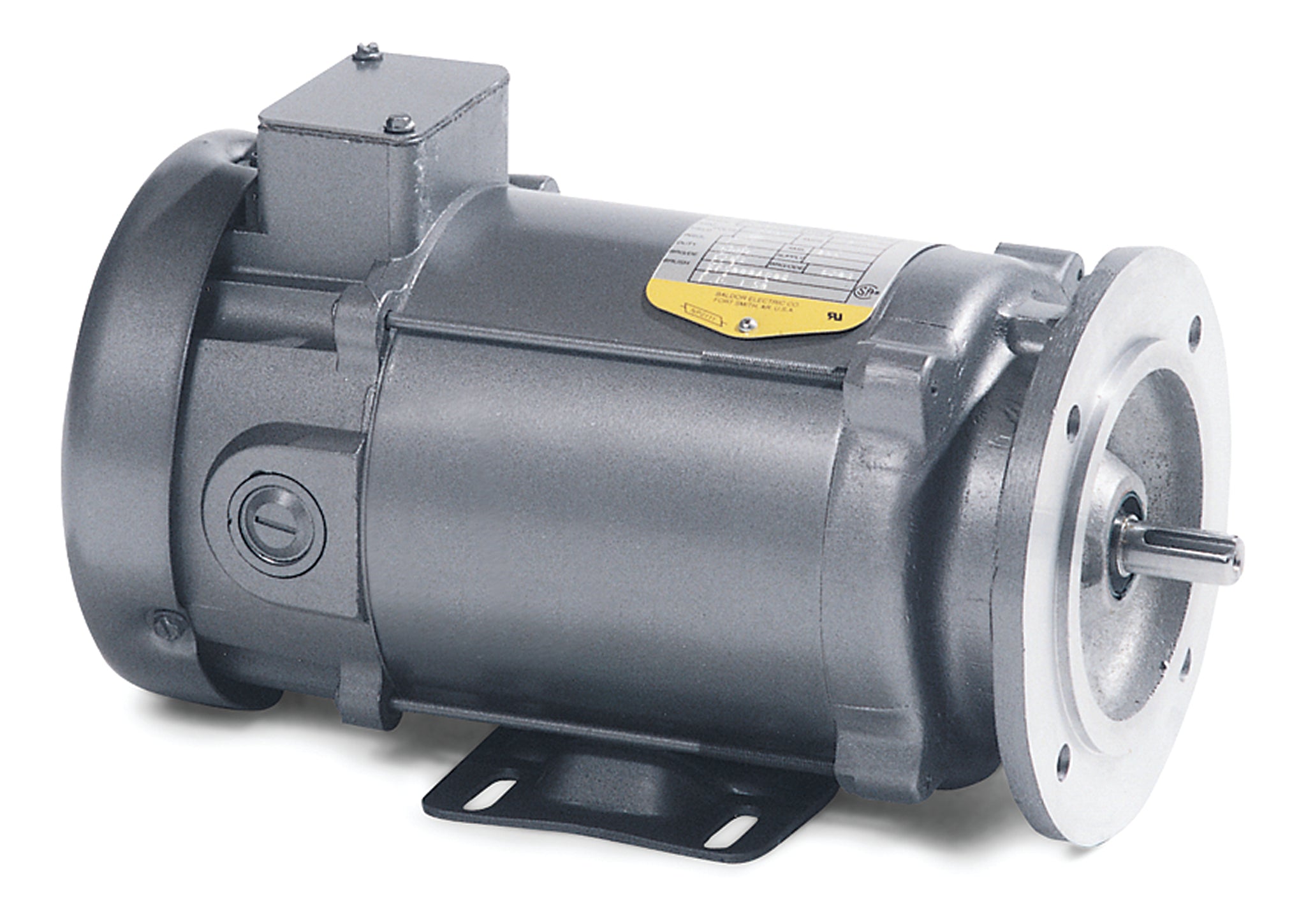

The Baldor VP3416-14 for Baldor pump systems.
Part Specifications
| Part Number | VP3416-14 |
| Brand | Baldor |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- UPC
- 781568154779
- Supplier Part Number
- VP3416-14
- Category
- DC Motors
- Subcategory
- General Purpose DC Motors
- Product Family
- General Purpose
- Agency Approvals
- CE, CSA, UKCA, UR, WEEE
- Ambient Temperature
- 40 °C
- Approximate Weight (lbs)
- 31.0
- Armature Current
- 1.7 a
- Armature Inertia
- 5.073 lb-ft2
- Armature Voltage
- 180 V
- Base Indicator
- Rigid
- Base Speed
- 1,750 rpm
- Bearing Grease Type
- Polyrex EM (-20F +300F)
- Drip Cover
- No Drip Cover
- Duty Rating
- CONT
- Enclosure
- TEFC
- Feedback Device
- NO FEEDBACK
- Frame
- D71C
- Frame Material
- Steel
- Frame Prefix
- D
- Haz Area Class and Group
- NONE
- Haz Area Division
- Not Applicable
- Heater Indicator
- No Heater
- Insulation Class
- F
- Lifting Lugs
- No Lifting Lugs
- Motor Lead Exit
- Ko Box
- Motor Lead Quantity/Wire Size
- 2 @ 14 AWG
- Motor Lead Termination
- Flying Leads
- Motor Standards
- IEC
- Mounting Arrangement
- B34
- Output Power
- 0.33 hp
- Overall Length
- 12.27 IN
- Pulley End Bearing Type
- Sealed Bearing
- Service Factor
- 1
- Shaft Diameter
- 0.551 IN
- Shaft Extension Location
- Pulley End
- Shaft Ground Indicator
- No Shaft Grounding
- Shaft Rotation
- Reversible
- Shaft Slinger Indicator
- No Slinger
