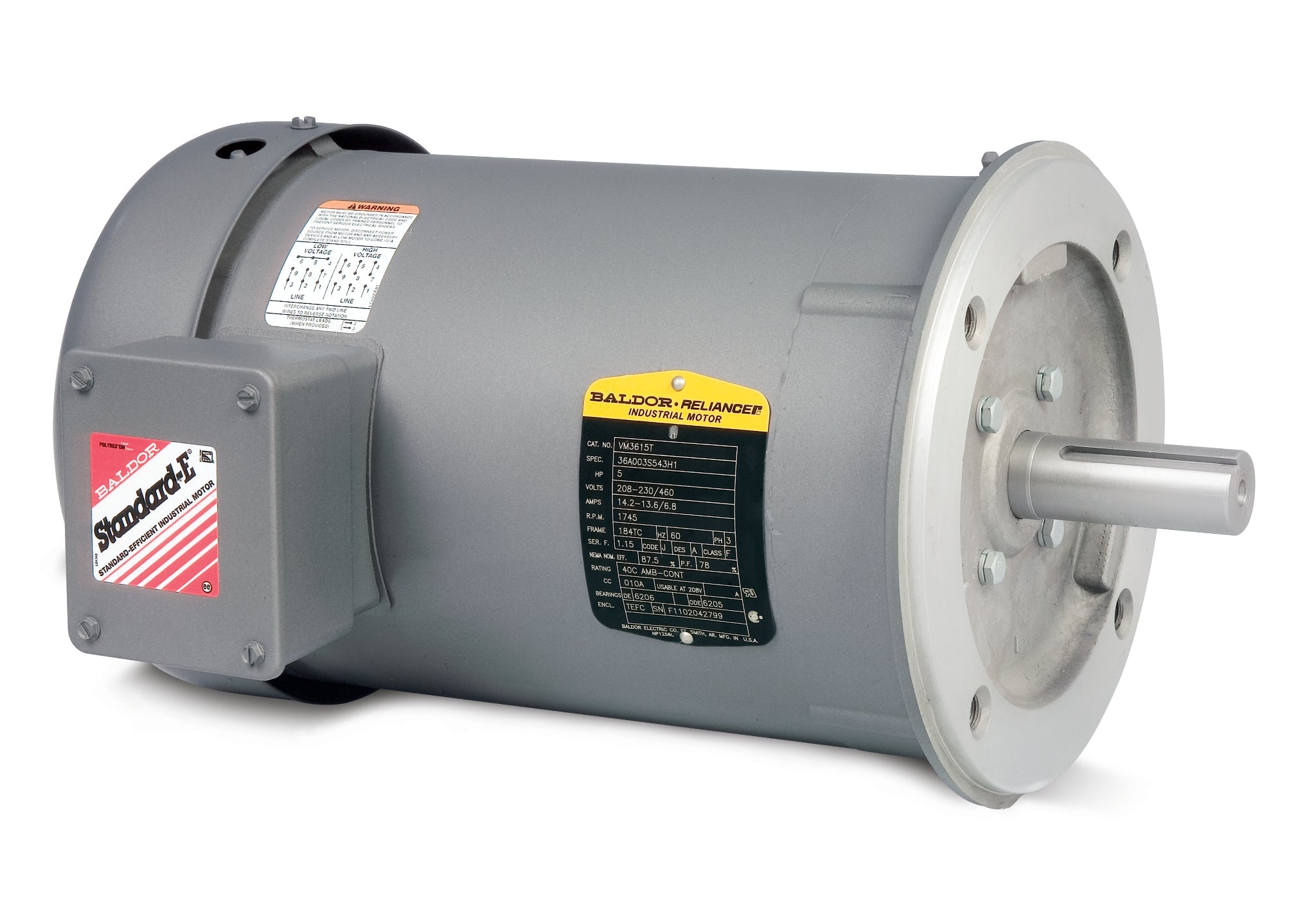

Baldor VM3542-57 - .75 HP, 1425 IP54RPM, 3 Phase, 50HZ, 56C, 3428M, Te 50HZ Three Phase Three Phase 75 HP 3428 M Cable 56°C

Save $210.75
BaldorSKU: VM3542-57

Price:
Sale price$632.25 Regular price$843.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance Three Phase Enclosed Motor - Model VM3542-57

Upgrade your industrial applications with the Baldor VM3542-57, a robust and reliable three-phase enclosed motor designed for optimal performance. This motor features a power rating of .75 HP and operates at 1425 RPM with a frequency of 50HZ. Built to withstand challenging environments, it comes with an IP54 rating for protection against dust and water ingress.

Key specifications include:

  • Power: .75 HP
  • Speed: 1425 RPM
  • Phase: 3 Phase
  • Frequency: 50HZ
  • Temperature Class: 56C
  • Model: 3428M
  • Type: Totally Enclosed (TE)

This motor is ideal for various applications, including pumps, fans, and other machinery requiring reliable power. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor VM3542-57. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568656693
Supplier Part Number VM3542-57
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 32.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VM3542-57
Current @ Voltage 1.800 A @ 400.0 V, 3.100 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 75.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.8 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3428M
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 50 HZ
Overall Length 12.85 IN
Phase 3
Power Factor 59
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1425 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 400 V, 230 V
Voltage @ Frequency 400.0 V @ 50 HZ, 230.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
