Baldor VM3537-57 - .5 HP, 2850 IP44RPM, 3 Phase, 50HZ, 56C, 3413M 50HZ Three Phase Three Phase 5 HP 3413 M Cable 56°C

Save $182.25
BaldorSKU: VM3537-57

Price:
Sale price$546.75 Regular price$729.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

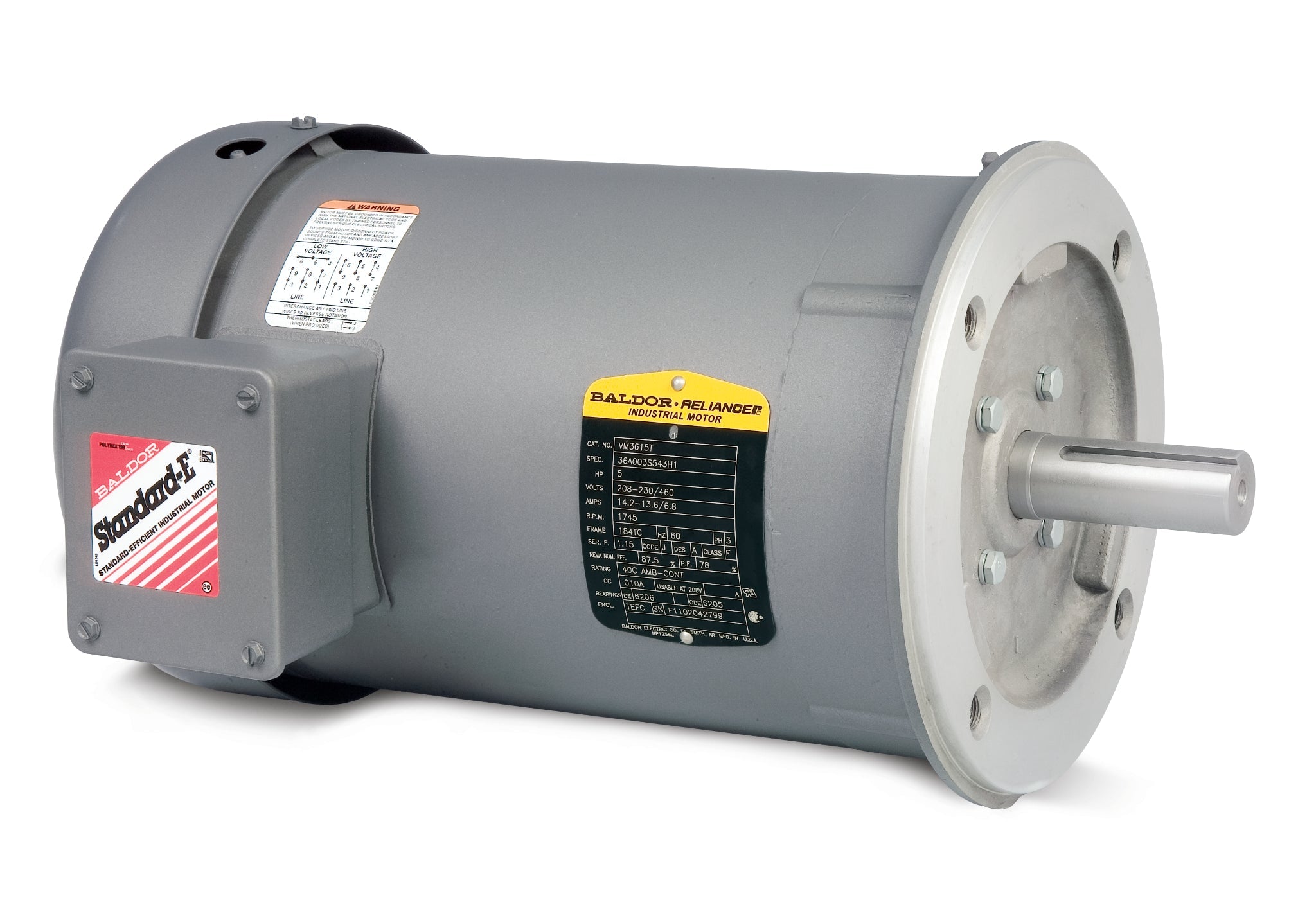

Baldor-Reliance Three Phase Enclosed Motor - Model VM3537-57

Introducing the Baldor VM3537-57, a high-performance three-phase enclosed motor designed for reliable operation in various industrial applications. With a power rating of 0.5 HP and a speed of 2850 RPM, this motor operates efficiently at 50Hz, making it an ideal choice for your pumping needs.

Specifications:

  • Power: 0.5 HP
  • Speed: 2850 RPM
  • Phase: 3 Phase
  • Frequency: 50Hz
  • Enclosure: IP44
  • Frame Size: 56C
  • Product Code: VM3537-57

This Baldor-Reliance motor is built to withstand demanding environments, ensuring durability and longevity. It is perfect for applications requiring a robust and efficient motor solution.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the VM3537-57 to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568656846
Supplier Part Number VM3537-57
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 22.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VM3537-57
Current @ Voltage 1.100 A @ 400.0 V, 1.900 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 72.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.1 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3413M
Mounting Arrangement F1
Number of Poles 2
Output 0.500 hp
Output @ Frequency .500 HP @ 50 HZ
Overall Length 11.35 IN
Phase 3
Power Factor 74
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 2850 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,000 rpm
Synchronous Speed @ Frequency 3000 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 400 V, 230 V
Voltage @ Frequency 400.0 V @ 50 HZ, 230.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
