Baldor VM3535 - .33 HP, 1140RPM, 3 Phase, 60HZ, 56C, 3414M, TEFC, F1 60HZ Three Phase Three Phase 33 HP 3414 M Cable 56°C

Save $232.50
BaldorSKU: VM3535

Price:
Sale price$697.50 Regular price$930.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

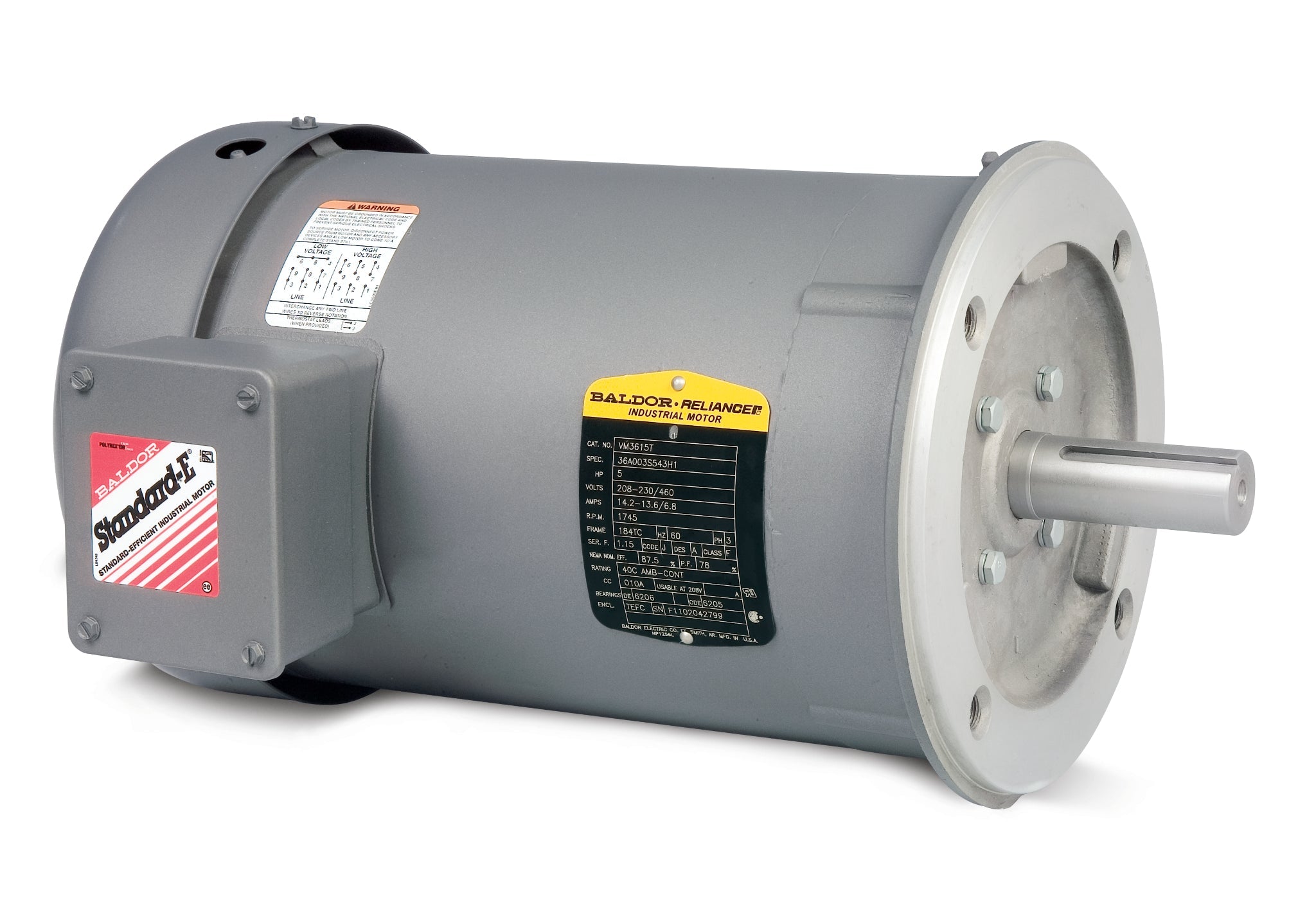

Baldor VM3535 Three Phase Enclosed Motor

Discover the reliability and performance of the Baldor VM3535, a robust three-phase enclosed motor designed for various industrial applications. With a power output of .33 HP and a speed of 1140 RPM, this motor operates efficiently at 60HZ. It features a 56C frame size and is built to withstand demanding environments with its TEFC (Totally Enclosed Fan Cooled) design.

This motor is ideal for use in pump systems and other machinery requiring a dependable power source. The product code for this motor is VM3535, making it easy to identify and order.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Explore our selection of Baldor-Reliance Motors & Drives and experience the quality and durability that comes with the Baldor name.

UPC 781568109533
Supplier Part Number VM3535
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 22.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VM3535
Current @ Voltage .900 A @ 460.0 V, 1.800 A @ 230.0 V, 2.100 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.9 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3414M
Mounting Arrangement F1
Number of Poles 6
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 11.35 IN
Phase 3
Power Factor 51
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.35
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1140 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
