Baldor VM3153T - .75 HP, 1140RPM, 3 Phase, 60HZ, 143TC, 3428M, Open 60HZ Three Phase Three Phase 75 HP 3428 M Cable

Save $249.50
BaldorSKU: VM3153T

Price:
Sale price$748.50 Regular price$998.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

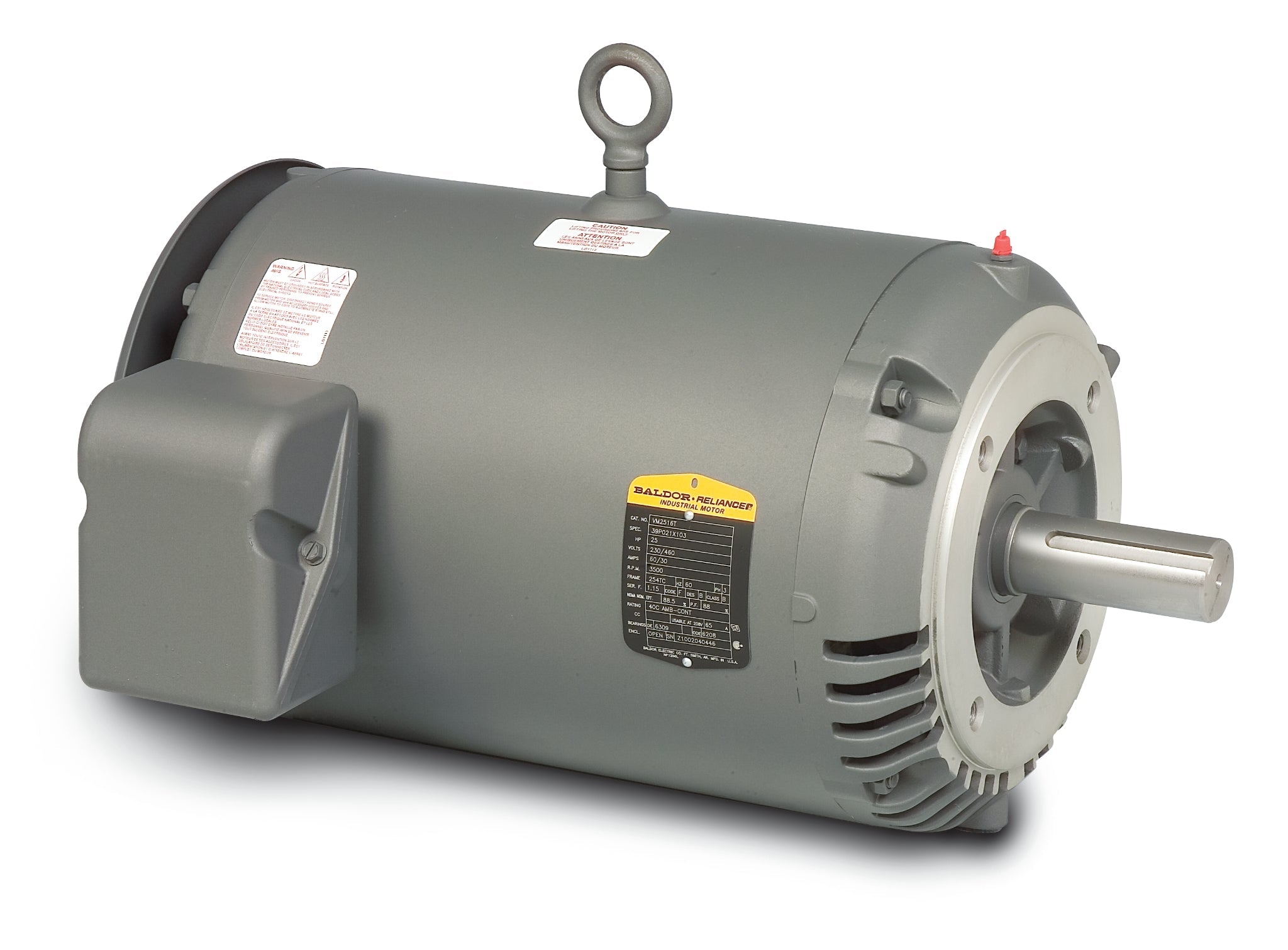

Baldor VM3153T - .75 HP Three Phase Open Motor

Discover the reliability and performance of the Baldor VM3153T, a .75 HP, 1140 RPM, three-phase open motor designed for various industrial applications. This motor operates at 60Hz and features a 143TC frame size, making it an ideal choice for those seeking efficiency and durability in their operations.

Key Specifications:

  • Power: .75 HP
  • Speed: 1140 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 143TC
  • Product Code: VM3153T

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and performance, making it suitable for a wide range of applications. Whether you are replacing an existing motor or upgrading your equipment, the Baldor VM3153T is a reliable choice.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VM3153T. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568111123
Supplier Part Number VM3153T
Category AC Motors
Subcategory Three Phase Open
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 32.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VM3153T
Current @ Voltage 1.500 A @ 460.0 V, 3.000 A @ 230.0 V, 3.300 A @ 208.0 V
Design Code B
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 77.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 143TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.5 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3428M
Mounting Arrangement F1
Number of Poles 6
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 13.41 IN
Phase 3
Power Factor 59
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1140 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
