Baldor VL1322T - 2 HP, 1735RPM, 1 Phase, 60HZ, 145TC, 3538LC, Open, F 60HZ Single Phase Single Phase 2 HP

Save $333.75
BaldorSKU: VL1322T

Price:
Sale price$1,001.25 Regular price$1,335.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

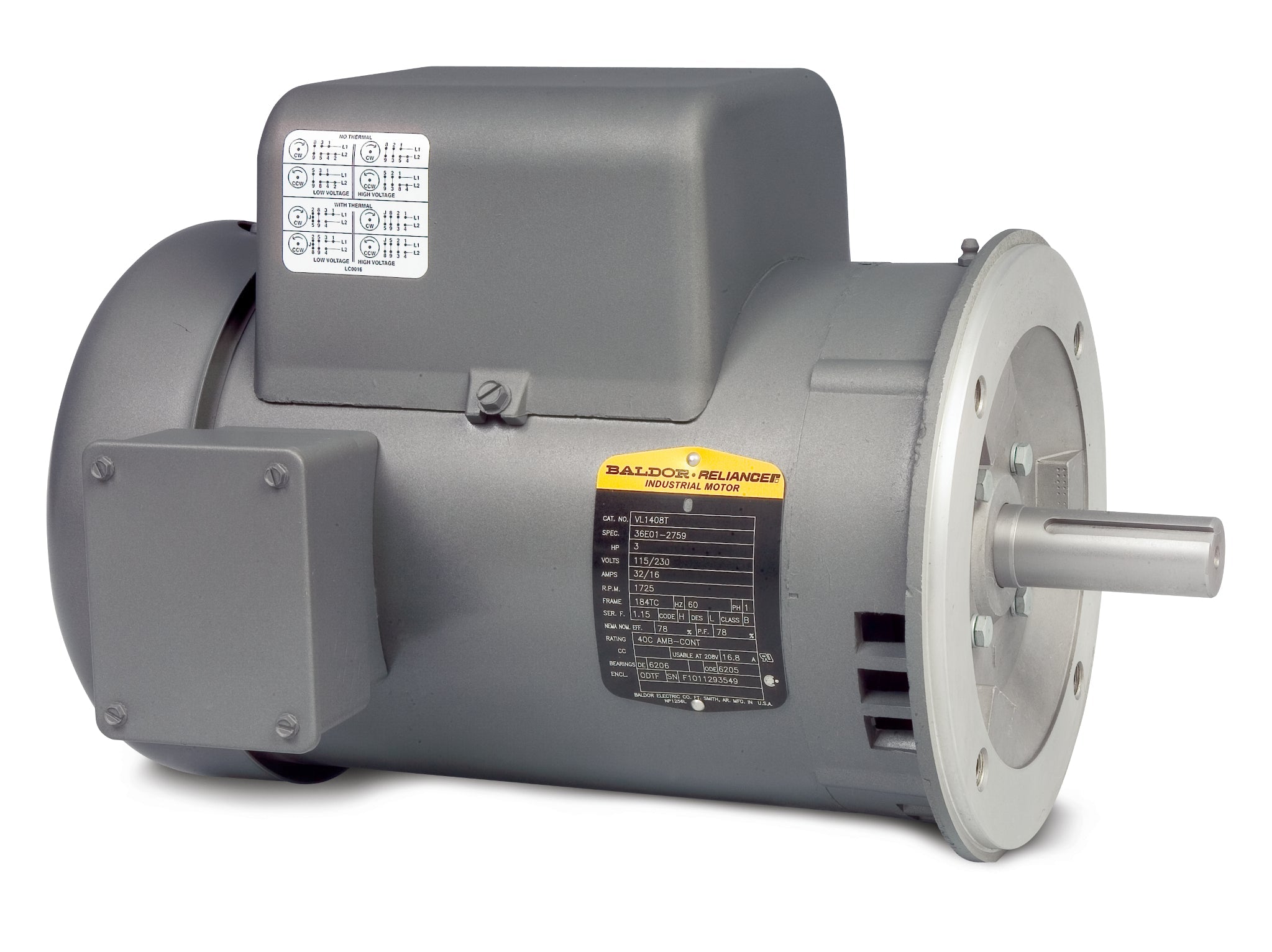

Baldor VL1322T - 2 HP Single Phase Open Motor

The Baldor VL1322T is a high-performance single-phase open motor designed for a variety of applications. With a robust 2 HP power output and a speed of 1735 RPM, this motor is ideal for driving pumps and other machinery efficiently. Operating at 60Hz, this motor features a 145TC frame size and is built for durability and reliability in demanding environments.

Key Features:

  • Power: 2 HP
  • Speed: 1735 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 145TC
  • Type: Open
  • Product Code: VL1322T

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VL1322T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568110935
Supplier Part Number VL1322T
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 49.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VL1322T
Current @ Voltage 18.200 A @ 115.0 V, 8.200 A @ 230.0 V, 9.200 A @ 208.0 V
Design Code L
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 8.2 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 16 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3538LC
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 15.54 IN
Phase 1
Power Factor 98
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1735 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 208 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 208.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
