Baldor VFWDM3538 - .5 HP, 1775RPM, 3 Phase, 60HZ, 56C, 3514M, TEFC, F1 60HZ Three Phase 5 HP 3514 M Cable 56°C

Save $279.00
BaldorSKU: VFWDM3538

Price:
Sale price$837.00 Regular price$1,116.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

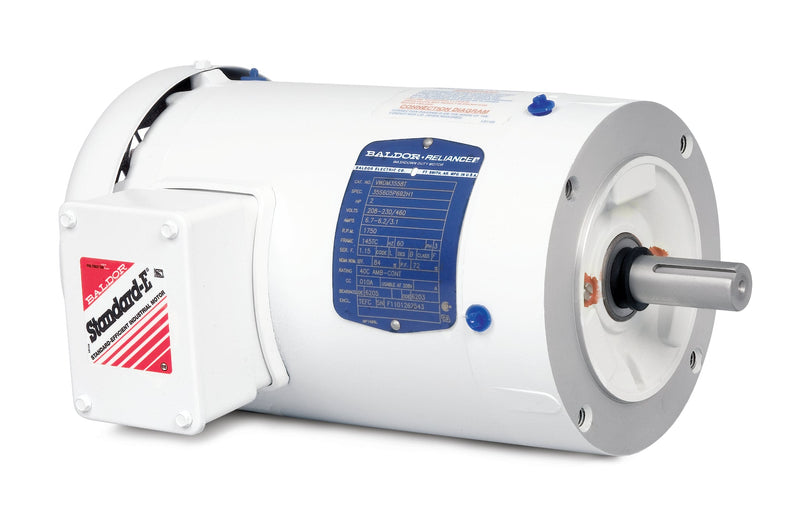

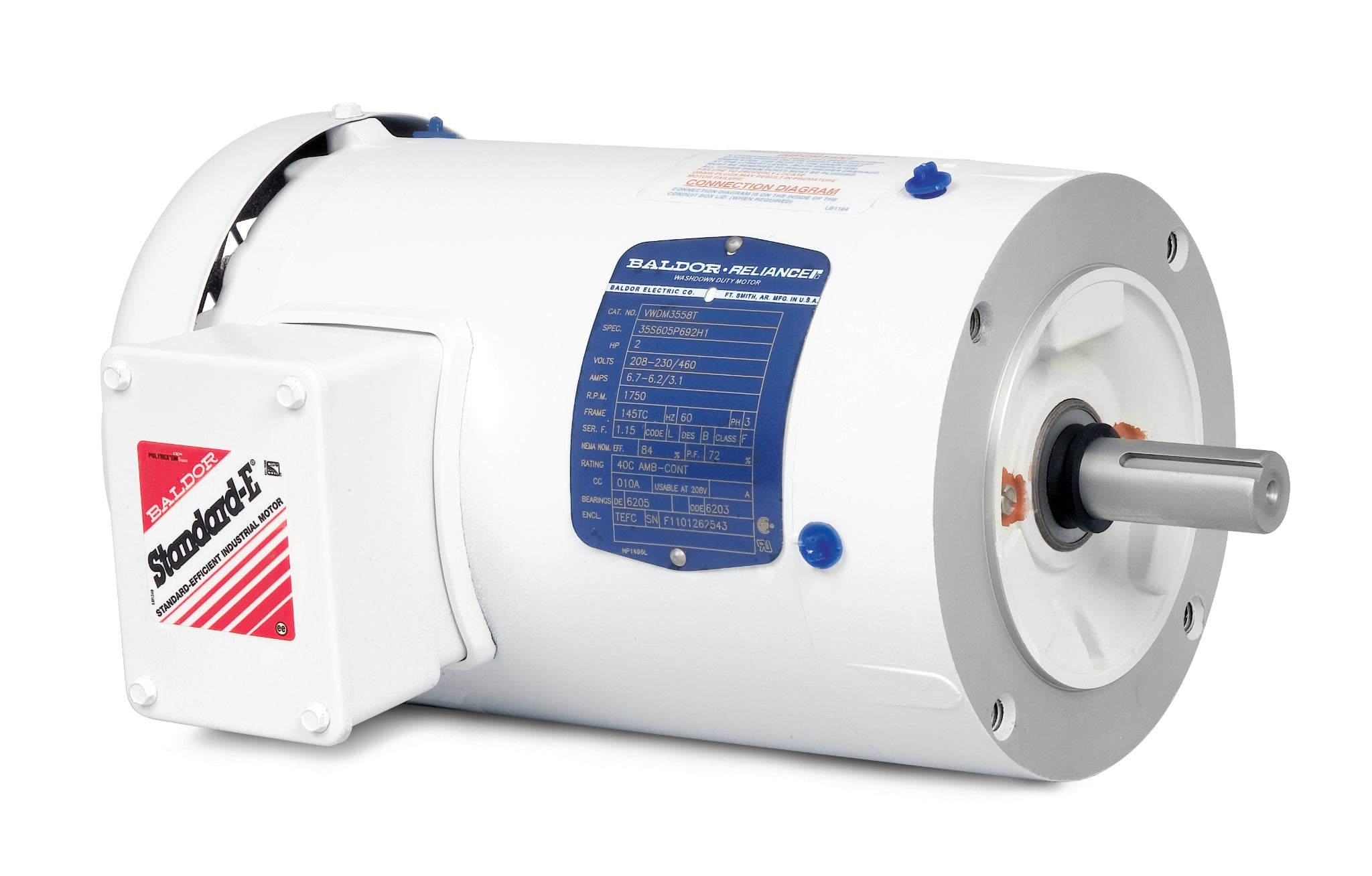

Baldor VFWDM3538 White Washdown Motor

Upgrade your pumping system with the Baldor VFWDM3538, a reliable and efficient .5 HP White Washdown Motor designed for demanding environments. Operating at 1775 RPM, this 3-phase motor is engineered for durability and performance, making it an ideal choice for various applications.

  • Power: .5 HP
  • Speed: 1775 RPM
  • Phase: 3 Phase
  • Frequency: 60 HZ
  • Frame Size: 56C
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: VFWDM3538

This motor is specifically designed for washdown applications, ensuring that it can withstand harsh conditions while providing reliable performance. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

Before purchasing, please check your current pump for the exact part number or SKU that matches the Baldor VFWDM3538. If you have any questions or need assistance in finding the right item, feel free to call us at (781) 281-8905. Our team is here to help you with all your pumping needs!

UPC 781568502082
Supplier Part Number VFWDM3538
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 29.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VFWDM3538
Current @ Voltage 1.010 A @ 460.0 V, 2.020 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 81.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F1
Number of Poles 4
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 12.22 IN
Phase 3
Power Factor 63
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
