Baldor VFSFWDM3538-E - .5 HP, 1770RPM, 3 Phase, 60HZ, 56C, 3512M, TEFC, F1 60HZ Three Phase 5 HP 3512 M Cable Stainless Steel 56°C

Save $677.75
BaldorSKU: VFSFWDM3538-E

Price:
Sale price$2,033.25 Regular price$2,711.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

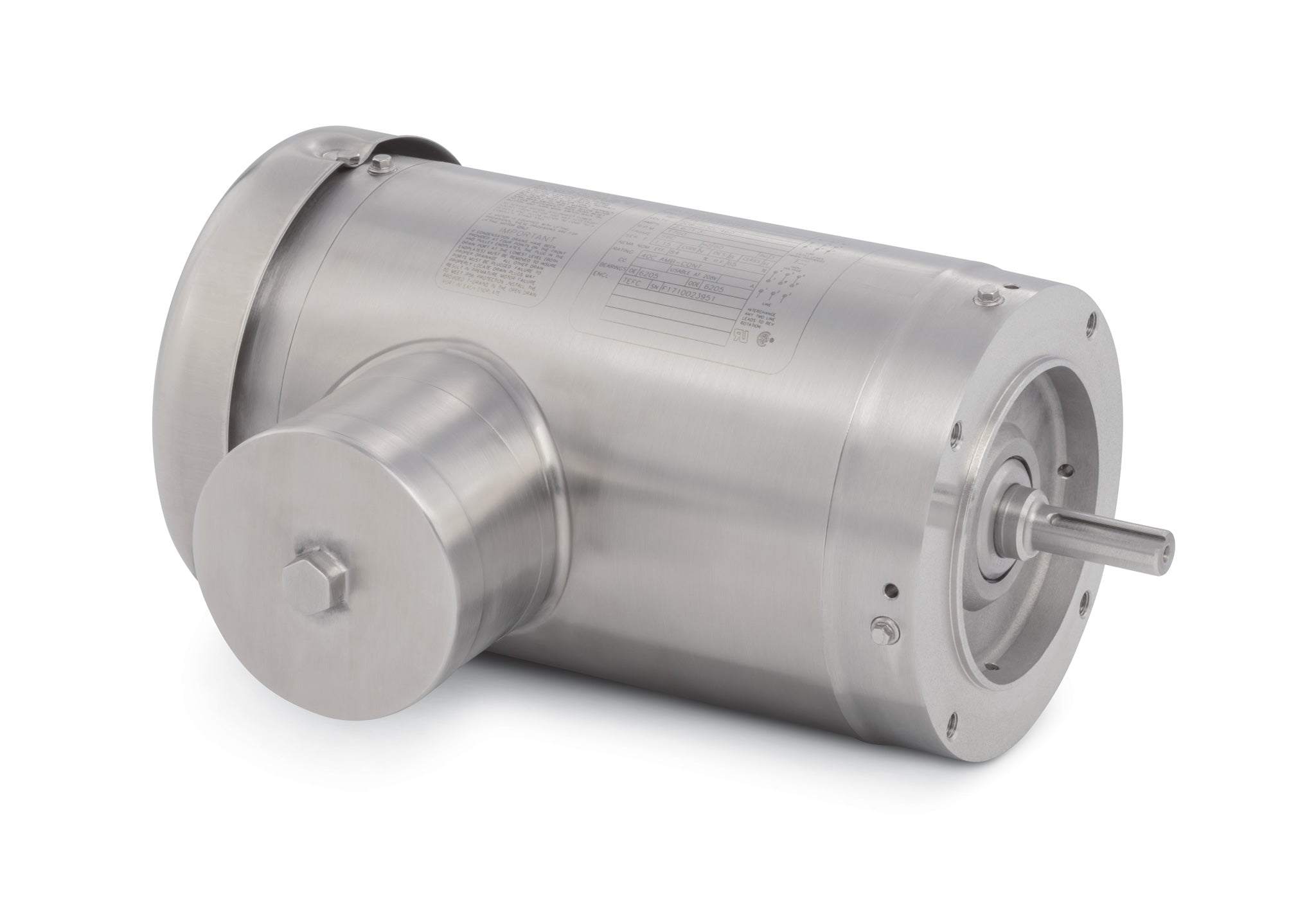

Baldor-Reliance Food Safe Stainless Steel Motor - Model VFSFWDM3538-E

Upgrade your pumping system with the Baldor-Reliance Food Safe Stainless Steel Motor, designed for durability and efficiency in demanding environments. This .5 HP motor operates at 1770 RPM and is engineered for three-phase applications at 60Hz. With a robust 56C frame and TEFC (Totally Enclosed Fan Cooled) design, it ensures optimal performance while protecting against dust and moisture.

Key Features:

  • Power: .5 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Model: 3512M
  • Type: Food Safe Stainless Steel Motor
  • Protection: TEFC

This motor is ideal for food processing and other sanitary applications, ensuring compliance with health and safety standards. At Pump-Stop, we are your preferred source for replacement pumps and parts, providing quality products to meet your needs.

If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

UPC 781568856925
Supplier Part Number VFSFWDM3538-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SD Non-Encapsulated
Agency Approvals CURUS, CURUSEEV, NEMA_PREMIUM, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 35.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VFSFWDM3538-E
Current @ Voltage 1.900 A @ 208.0 V, 1.800 A @ 230.0 V, .900 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.9 a
Insulation Class H
Inverter Code Not Inverter
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 2700 rpm
Motor Finish UNPAINTED
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3512M
Mounting Arrangement F1
Number of Poles 4
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 12.96 IN
Phase 3
Power Factor 65
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V, 208 V
Voltage @ Frequency 230.0 V @ 60 HZ, 208.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
