Baldor VEWDM3554T - 1.5 HP, 1770RPM, 3 Phase, 60HZ, 145TC, 3530M, Tenv 60HZ Three Phase 1.5 HP 3530 M Cable

Save $460.75
BaldorSKU: VEWDM3554T

Price:
Sale price$1,382.25 Regular price$1,843.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

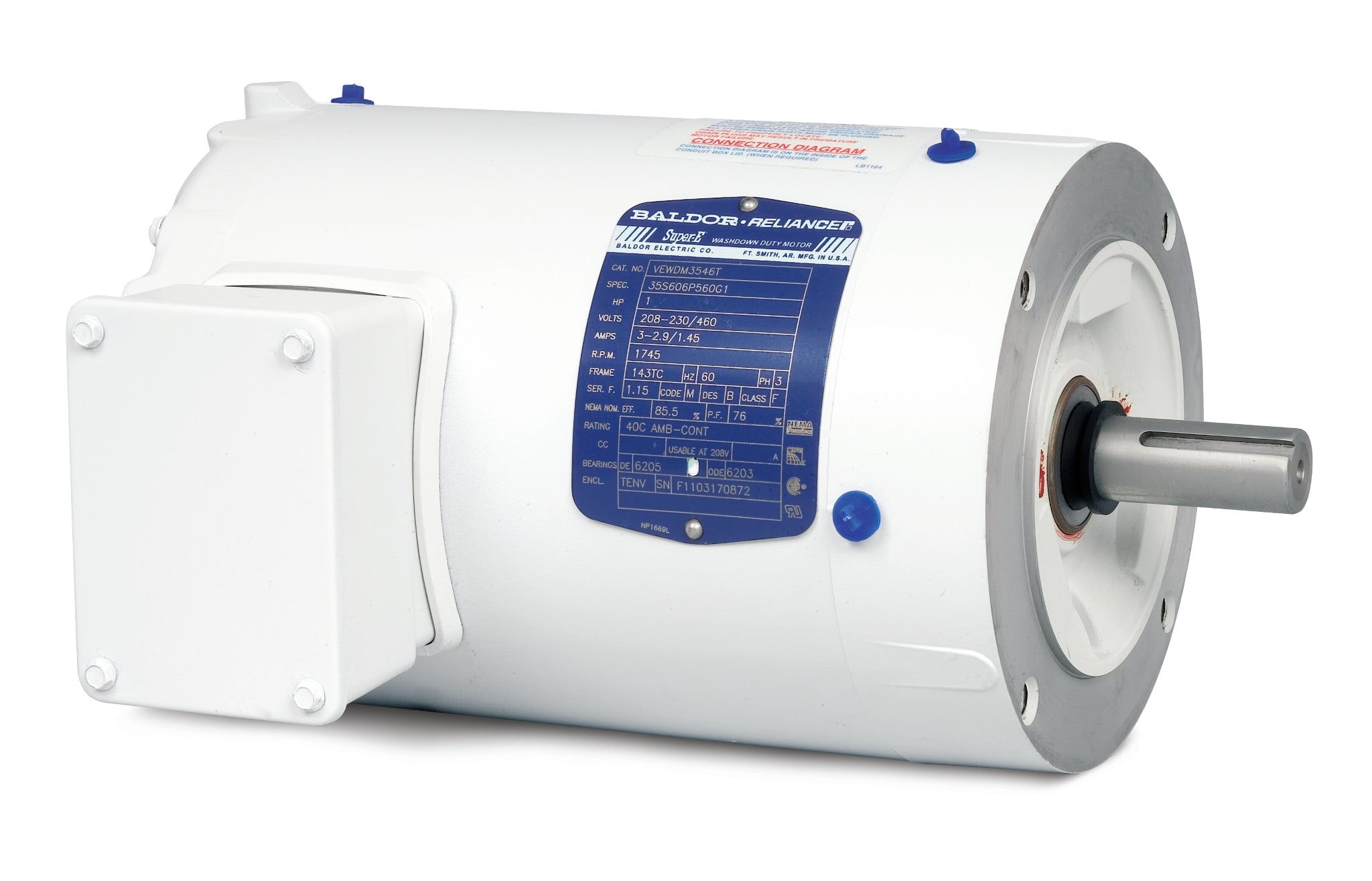

Baldor VEWDM3554T - 1.5 HP White Washdown Motor

The Baldor VEWDM3554T is a high-performance 1.5 HP White Washdown Motor designed for demanding applications. Operating at 1770 RPM and featuring a robust 3-phase design, this motor is ideal for environments where cleanliness and durability are paramount. With a 60Hz frequency and a 145TC frame size, it ensures reliable operation in various industrial settings.

Key Features:

  • Power: 1.5 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 145TC
  • Type: Totally Enclosed Non-Ventilated (TENV)
  • Product Code: VEWDM3554T

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VEWDM3554T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568478387
Supplier Part Number VEWDM3554T
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 48.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VEWDM3554T
Current @ Voltage 2.300 A @ 460.0 V, 4.600 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.3 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3530M
Mounting Arrangement F1
Number of Poles 4
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 12.99 IN
Phase 3
Power Factor 72
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
