Baldor VEBM3554T-D - 1.5 HP, 1770RPM, 3 Phase, 60HZ, 145TC, 3524M, TEFC 60HZ Three Phase 1.5 HP 3524 M Cable

Save $677.25
BaldorSKU: VEBM3554T-D

Price:
Sale price$2,031.75 Regular price$2,709.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

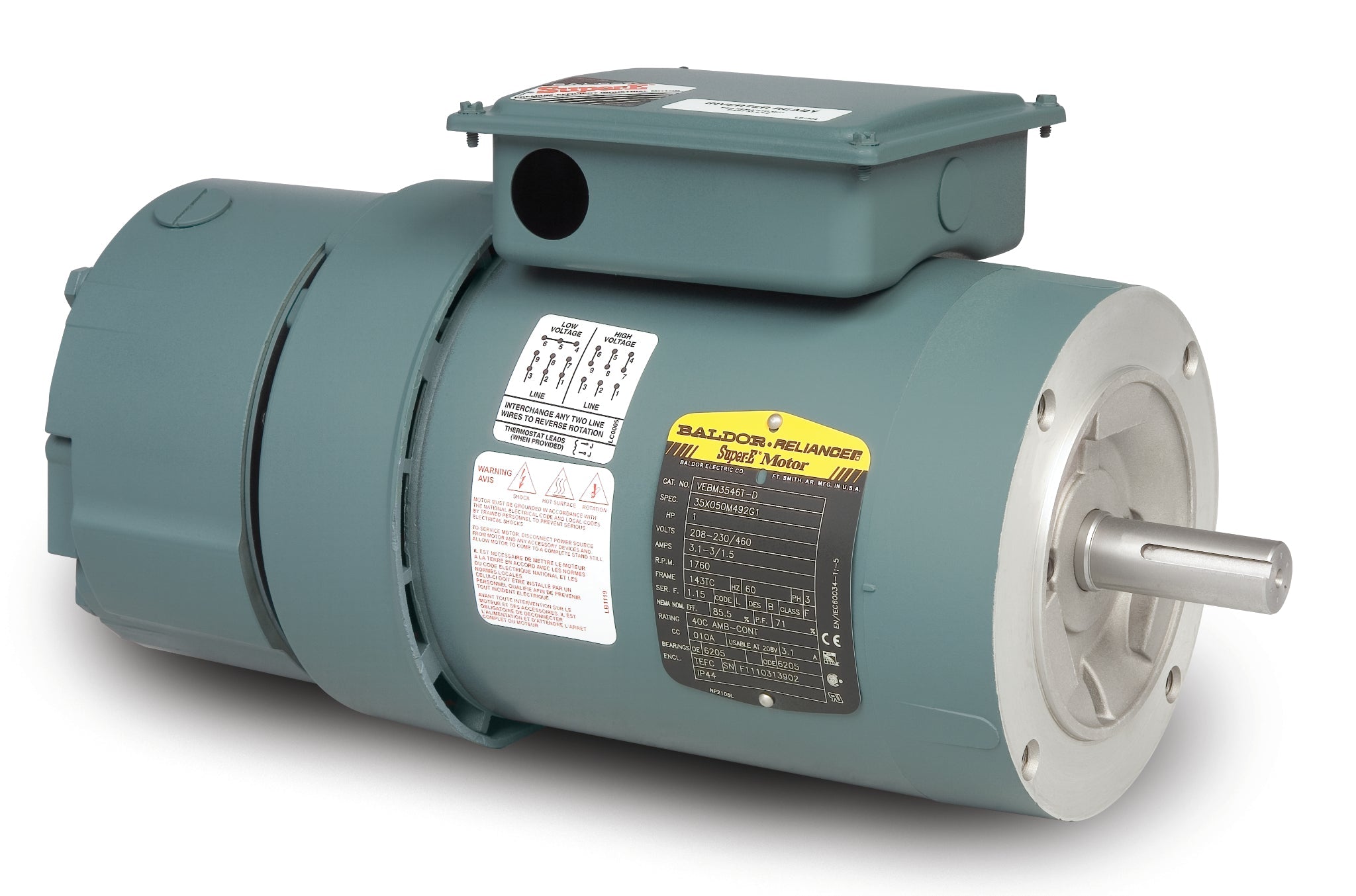

Baldor VEBM3554T-D General Unit Handling Motor

Upgrade your operations with the Baldor VEBM3554T-D, a high-performance 1.5 HP General Unit Handling Motor designed for efficiency and reliability. Operating at 1770 RPM, this 3-phase motor is perfect for a variety of applications requiring robust power and durability.

  • Power: 1.5 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 145TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: VEBM3554T-D

This motor is engineered for general unit handling applications, ensuring optimal performance in demanding environments. With its TEFC design, it provides excellent protection against dust and moisture, making it suitable for various industrial settings.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VEBM3554T-D to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568551134
Supplier Part Number VEBM3554T-D
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, UKCA, WEEE, CURUSEEV, CE
Ambient Temperature 40 °C
Approximate Weight (lbs) 58.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 10.0 lb-ft
Catalog Number VEBM3554T-D
Current @ Voltage 4.640 A @ 208.0 V, 4.600 A @ 230.0 V, 2.300 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Fan Housing Cover For Brake
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.3 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3524M
Mounting Arrangement F3
Number of Poles 4
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 17.19 IN
Phase 3
Power Factor 72
Product Type D-SERIES BRAKE MOTORS
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
