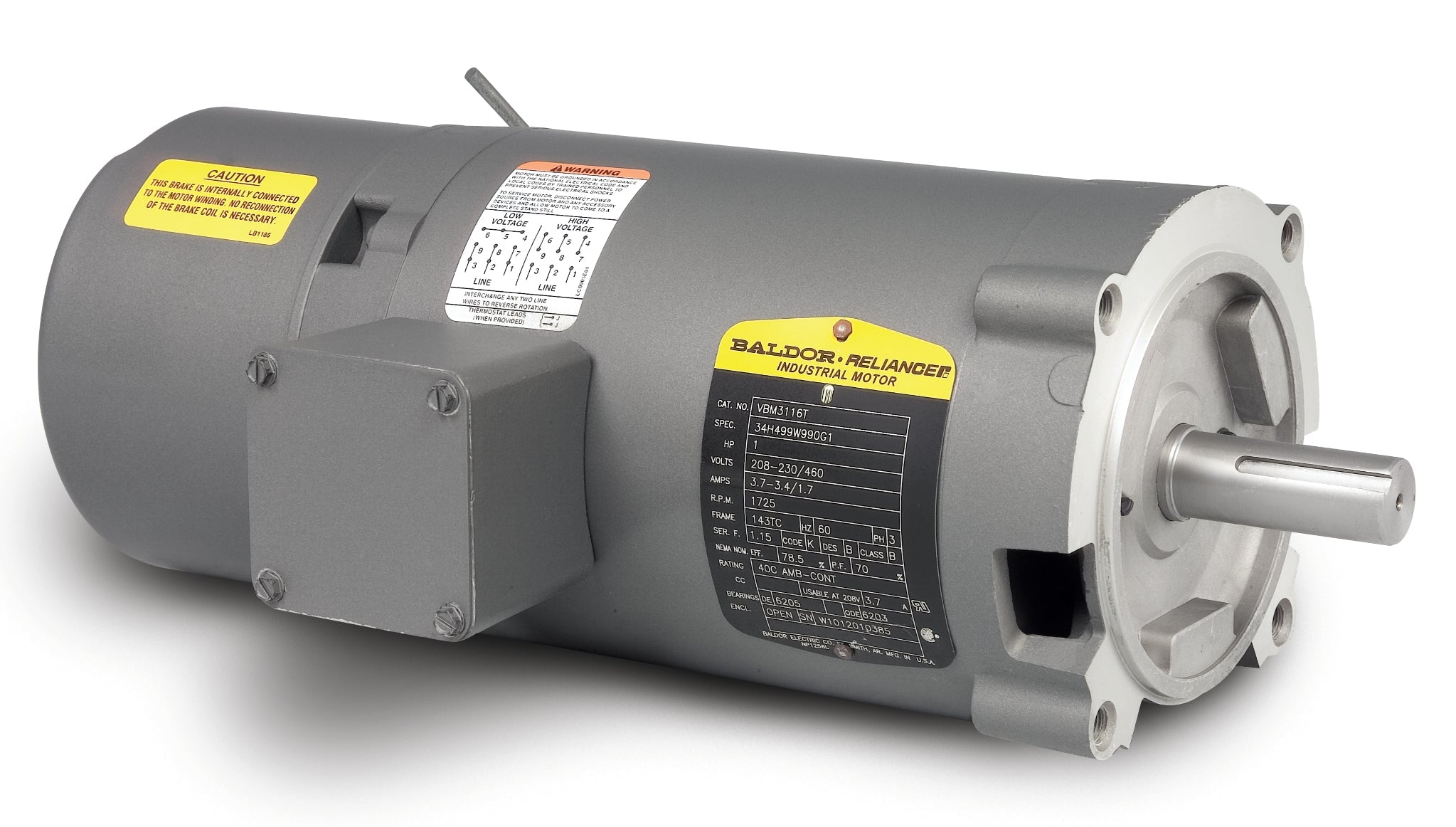

Baldor VBM3108 - .5 HP, 1720RPM, 3 Phase, 60HZ, 56C, 3416M, Open, F1 60HZ Three Phase 5 HP 3416 M Cable 56°C

Save $394.00
BaldorSKU: VBM3108

Price:
Sale price$1,182.00 Regular price$1,576.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor VBM3108 - .5 HP Short-Series Brake Motor

Discover the reliability and performance of the Baldor VBM3108, a .5 HP, 1720 RPM, 3-phase brake motor designed for various industrial applications. This motor operates at 60Hz and features a 56C frame, ensuring compatibility with a wide range of systems. The open design allows for efficient cooling, making it ideal for continuous operation.

Key Features:

  • Power: .5 HP
  • Speed: 1720 RPM
  • Phase: 3-Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Type: Short-Series Brake Motor
  • Product Code: VBM3108

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VBM3108 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568115534
Supplier Part Number VBM3108
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 28.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 3.0 lb-ft
Catalog Number VBM3108
Current @ Voltage .800 A @ 460.0 V, 1.600 A @ 230.0 V, 1.700 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 75.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.8 a
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3416M
Mounting Arrangement F1
Number of Poles 4
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 14.36 IN
Phase 3
Power Factor 75
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1720 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
