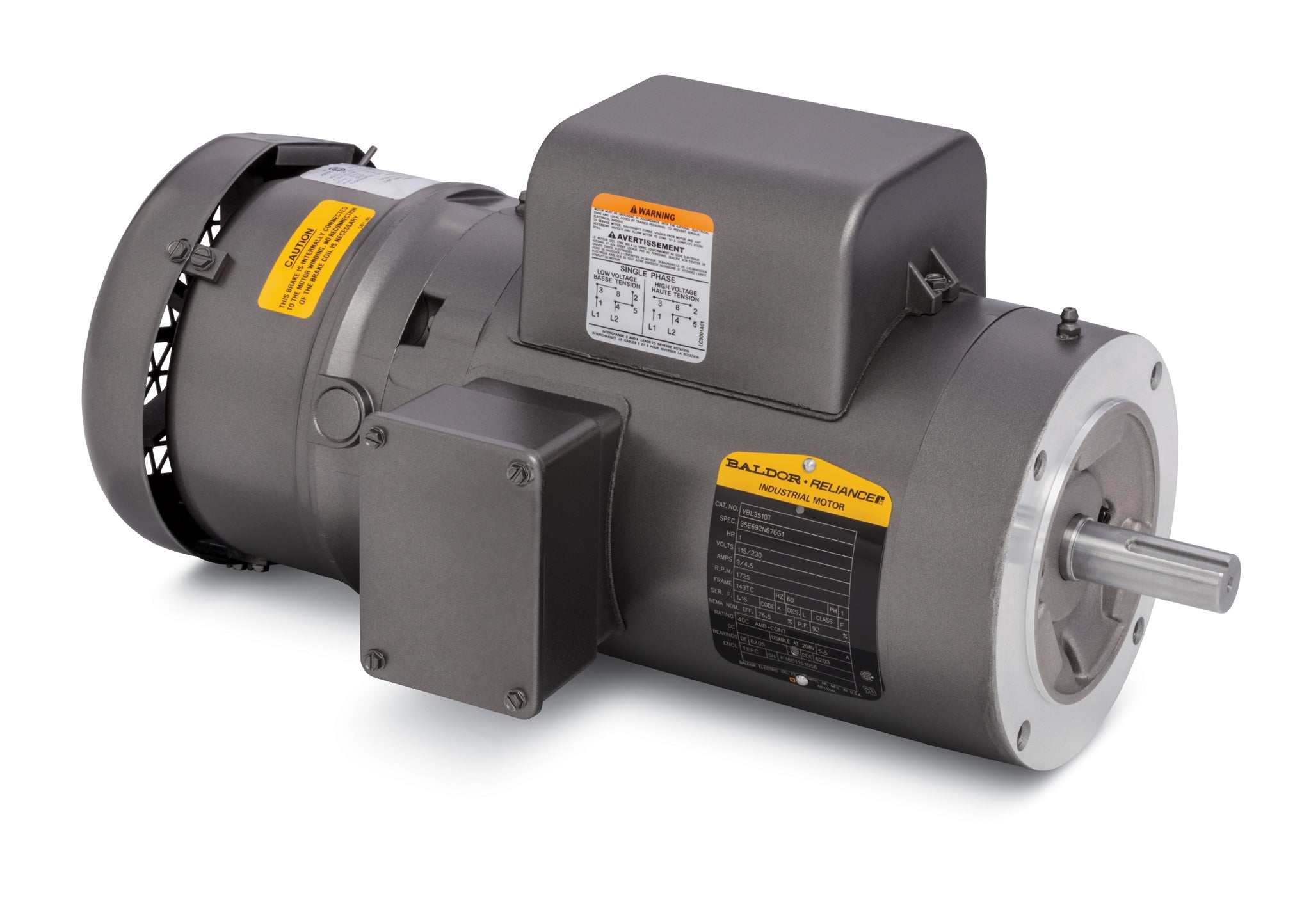

Baldor VBL3510T - 1 HP, 1740RPM, 1 Phase, 60HZ, 143TC, 3526LC, TEFC, F 60HZ Single Phase 1 HP

Save $646.75
BaldorSKU: VBL3510T

Price:
Sale price$1,940.25 Regular price$2,587.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor VBL3510T - 1 HP Short-Series Brake Motor

The Baldor VBL3510T is a high-performance 1 HP Short-Series Brake Motor designed for reliable operation in various applications. With a speed of 1740 RPM and a single-phase power supply at 60Hz, this motor is engineered to deliver efficient performance. It features a 143TC frame size and is built with a Totally Enclosed Fan Cooled (TEFC) design, ensuring durability and protection against environmental factors.

Key Specifications:

  • Power: 1 HP
  • Speed: 1740 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 143TC
  • Type: Short-Series Brake Motor
  • Product Code: VBL3510T

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VBL3510T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568115367
Supplier Part Number VBL3510T
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 49.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 6.0 lb-ft
Catalog Number VBL3510T
Current @ Voltage 4.650 A @ 230.0 V, 9.250 A @ 115.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 143TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.7 a
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3526LC
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 17.86 IN
Phase 1
Power Factor 85
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1740 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
