Baldor SUM75006-4 - 50 HP, RPM, 3 Phase, 60HZ, 320TY, Xpnv, V1 60HZ Three Phase 50 HP

Save $9,257.25
BaldorSKU: SUM75006-4

Price:
Sale price$27,771.75 Regular price$37,029.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

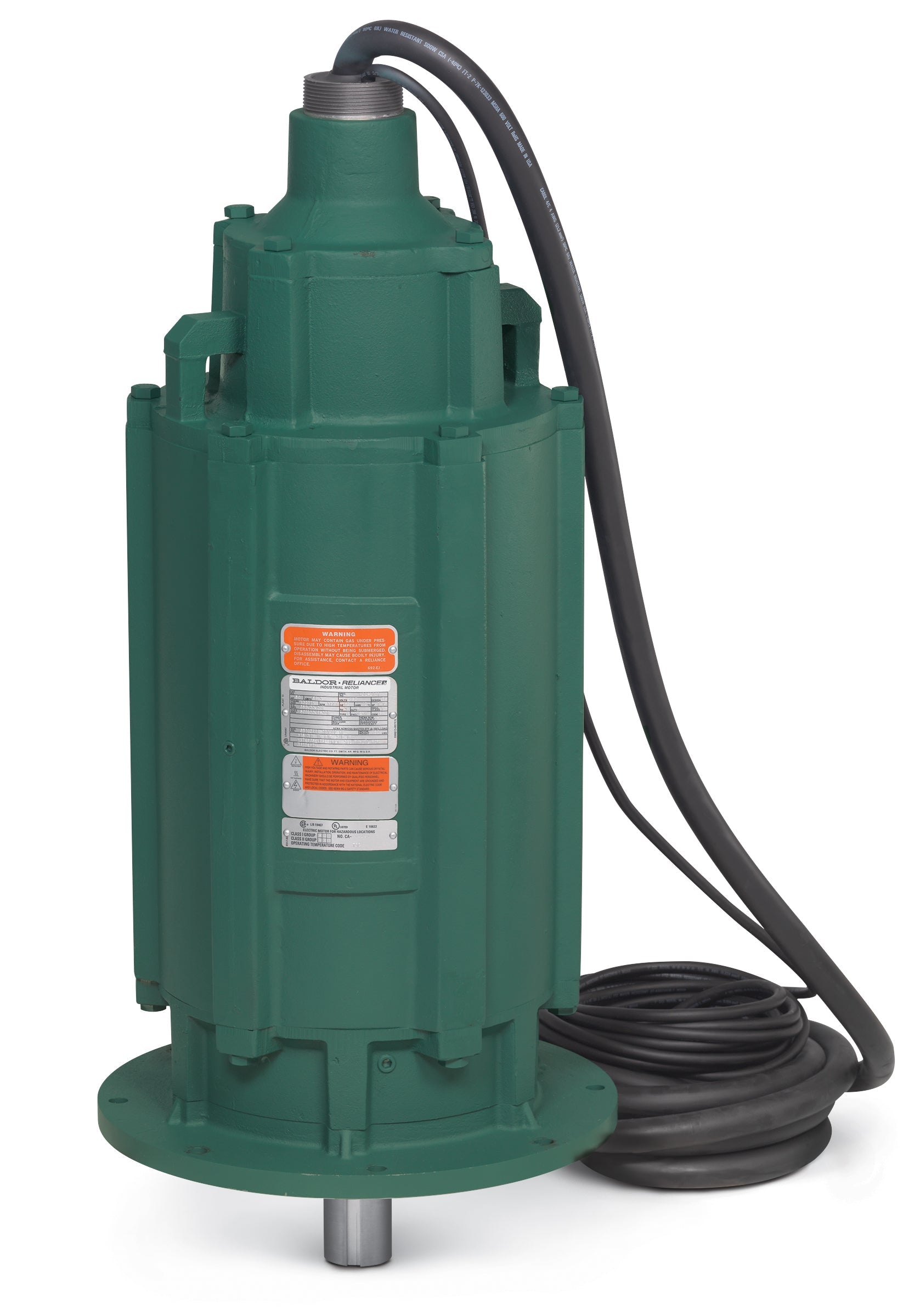

Baldor SUM75006-4 Submersible/Immersible Motor

Discover the power and reliability of the Baldor SUM75006-4, a high-performance submersible/immersible motor designed for demanding applications. With a robust 50 HP output, this motor operates at 3 Phase and 60HZ, ensuring optimal performance in various environments. The motor features a 320TY frame size and is classified as XPNV, making it suitable for a wide range of industrial uses.

As a trusted vendor, Baldor delivers exceptional quality and durability in their motors, making the SUM75006-4 an excellent choice for your pumping needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

If you have questions or need assistance in finding the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor SUM75006-4 to ensure compatibility. Our team is here to help you with any inquiries or challenges you may face in selecting the perfect motor for your needs.

UPC 781568838365
Supplier Part Number SUM75006-4
Category AC Motors
Subcategory Submersible/Immersible Motors
Product Family Pump - Centrifugal
Agency Approvals CULUS, CCSA US
Approximate Weight (lbs) 890.0
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Cable Length 25 FOOT
Catalog Number SUM75006-4
Current @ Voltage 65.9 A @ 460 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TENV
Frame 320TY
Frame Material Cast Iron
Haz Area Class and Group Class I, Group C & D
Haz Area Division Not Applicable
Haz Area Temp Code T3C
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type M
Mounting Arrangement V1
Number of Poles 6
Output 50.000 hp
Output @ Frequency 50.000 @ 60 HZ
Overall Length 43.12 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.499 IN
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Winding Normally Closed Thermostat
Voltage 460 V
Voltage @ Frequency 460 V @ 60 HZ
