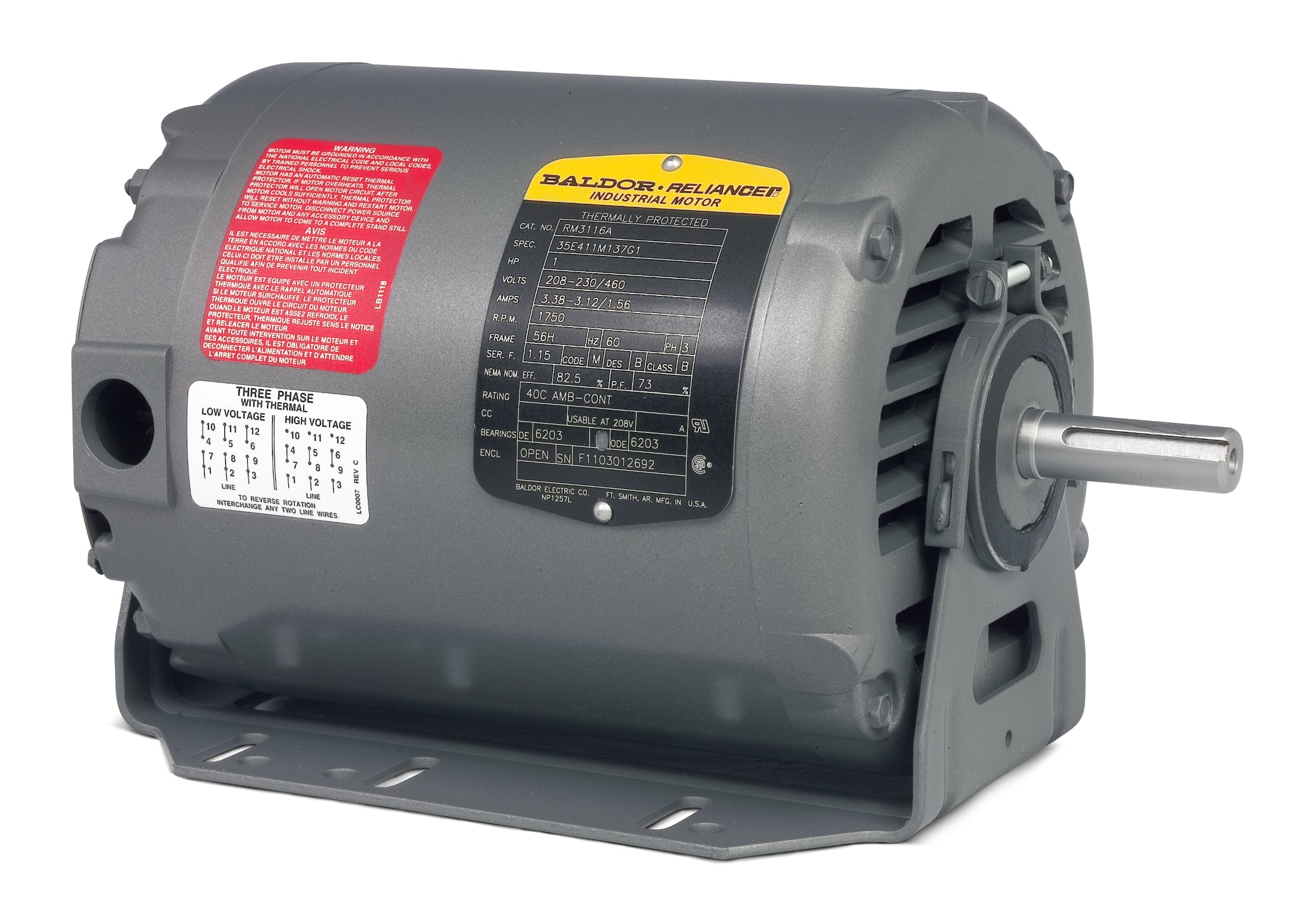

Baldor RM3154A - 1.5 HP, 1720RPM, 3 Phase, 60HZ, 56H, 3518M, Opsb, F1 60HZ Three Phase 1.5 HP 3518 M Cable

Save $238.75
BaldorSKU: RM3154A

Price:
Sale price$716.25 Regular price$955.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor RM3154A - 1.5 HP Fan and Blower Motor

Upgrade your equipment with the Baldor RM3154A, a high-performance fan and blower motor designed for reliability and efficiency. This 1.5 HP motor operates at 1720 RPM and is built for three-phase applications at 60Hz, making it an ideal choice for various industrial and commercial settings.

  • Power: 1.5 HP
  • Speed: 1720 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56H
  • Model Number: 3518M
  • Type: OPSB

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and performance, making it suitable for a wide range of applications, including HVAC systems, industrial fans, and blowers.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor RM3154A to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568121016
Supplier Part Number RM3154A
Category AC Motors
Subcategory Fan and Blower Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 34.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number RM3154A
Current @ Voltage 5.000 A @ 230.0 V, 4.800 A @ 208.0 V, 3.200 A @ 208.0 V, 2.500 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPSB
Feedback Device NO FEEDBACK
Frame 56H
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.5 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 12 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3520M
Mounting Arrangement F1
Number of Poles 4
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 12.42 IN
Phase 3
Power Factor 69
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1720 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use Eve-Not Valiid
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ, 208.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location ES
Winding Thermal 2 None
