Baldor RL1206A - .33 HP, 1725RPM, 1 Phase, 60HZ, 56, 3414L, Open, F1 60HZ Single Phase 33 HP

Save $120.25
BaldorSKU: RL1206A

Price:
Sale price$360.75 Regular price$481.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

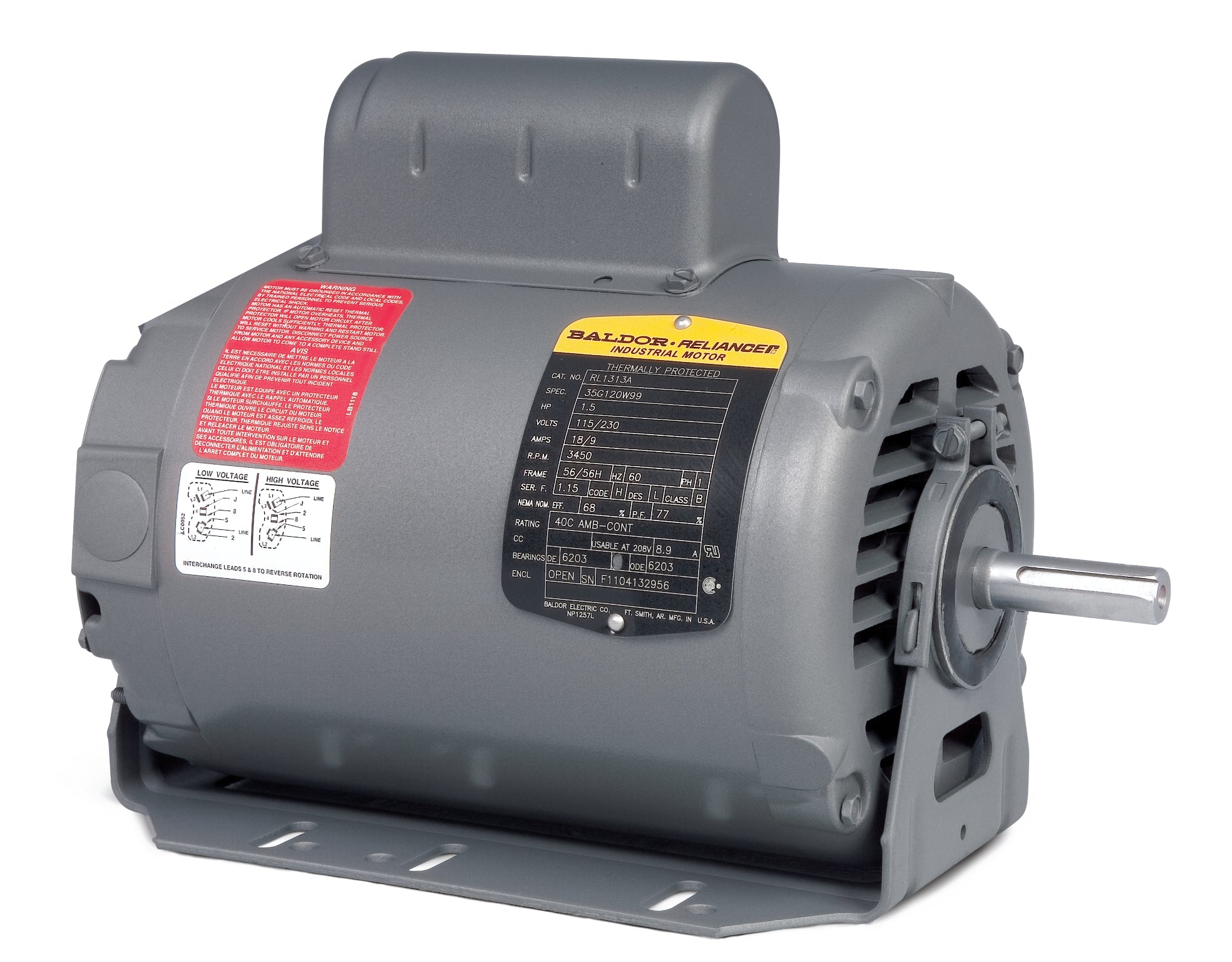

Baldor RL1206A - .33 HP Fan and Blower Motor

Upgrade your ventilation system with the Baldor RL1206A, a reliable .33 HP fan and blower motor designed for optimal performance. Operating at 1725 RPM and compatible with single-phase 60Hz power, this motor is perfect for various applications requiring efficient airflow.

Specifications:

  • Power: .33 HP
  • Speed: 1725 RPM
  • Phase: 1 Phase
  • Frequency: 60Hz
  • Frame: 56
  • Model: 3414L
  • Type: Open, F1

As a trusted vendor, Baldor ensures high-quality manufacturing standards, making the RL1206A an excellent choice for your fan and blower needs. Whether you're replacing an old motor or upgrading your system, this motor delivers reliability and efficiency.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568718803
Supplier Part Number RL1206A
Category AC Motors
Subcategory Fan and Blower Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 24.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number RL1206A
Current @ Voltage 3.000 A @ 230.0 V, 3.600 A @ 208.0 V, 6.000 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 60.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Resilient Mount
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.0 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 7 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3414L
Mounting Arrangement F1
Number of Poles 4
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 10.96 IN
Phase 1
Power Factor 60
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
