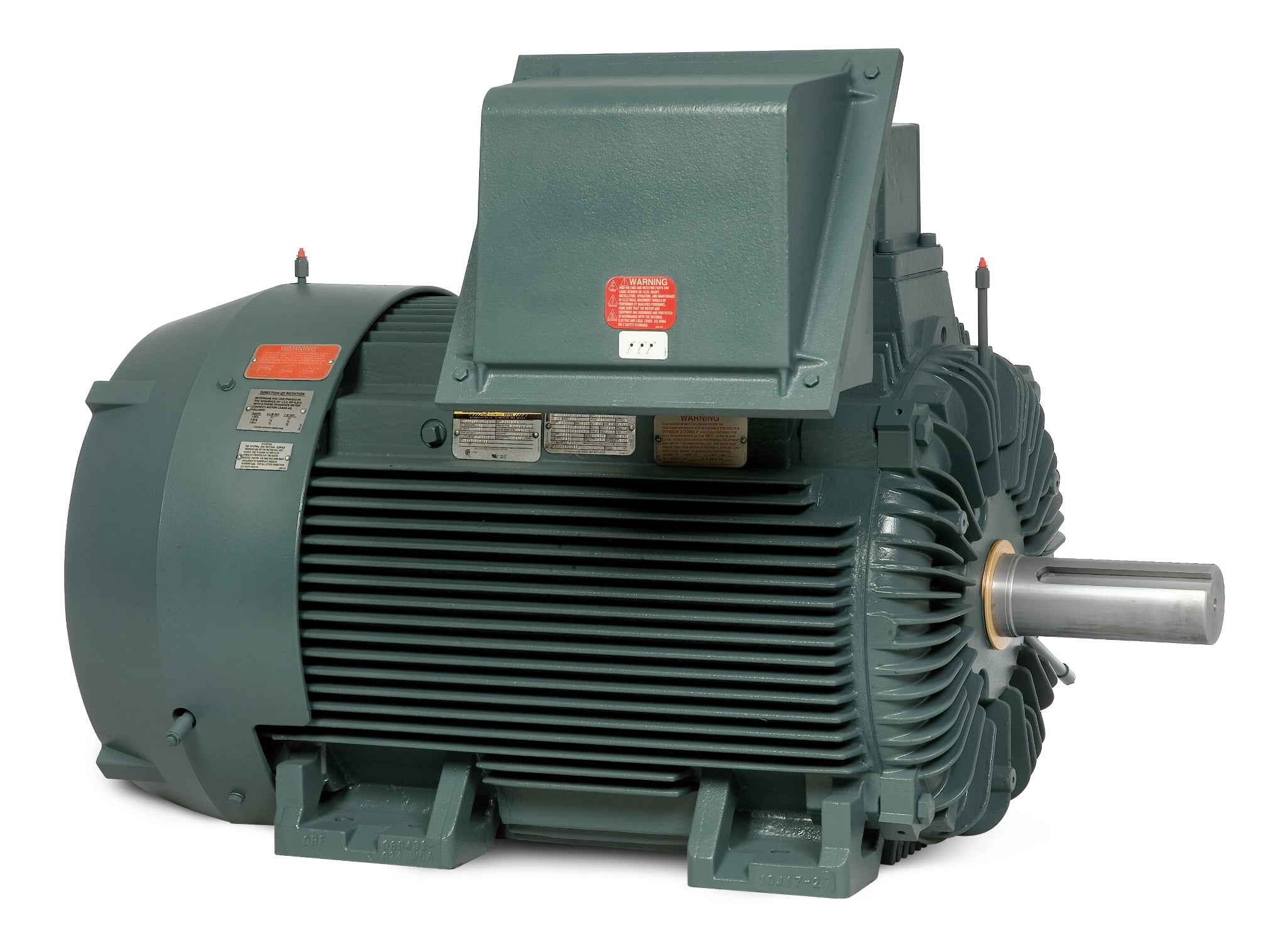

Baldor P44G3768 - 250HP, 3570RPM, 3PH, 60HZ, 449TS, A44128M, TEF - Explosion Proof Severe Duty Motors
Roll over image to zoom in Click on image to zoom
Baldor P44G3768 - 250HP, 3570RPM, 3PH, 60HZ, 449TS, A44128M, TEF - Explosion Proof Severe Duty Motors
Baldor Electric Motors

Baldor P44G3768 - 250 HP, 3570RPM, 3 Phase, 60HZ, 449TS, A44128M, Tef 60HZ Three Phase 250 HP

BaldorSKU: P44G3768
Price:
$32,936.25

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Baldor Replacement Part — Component

The Baldor P44G3768 for Baldor pump systems.

Part Specifications
Part Number P44G3768
Brand Baldor
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
UPC
781568536360
Supplier Part Number
P44G3768
Category
AC Motors
Subcategory
Explosion Proof Severe Duty Motors
Agency Approvals
CCSA US, CSA EEV, UR
Ambient Temperature
40 °C
Approximate Weight (lbs)
2798.0
Auxillary Box
No Auxillary Box
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Current @ Voltage
266.000 A @ 460.0 V
Design Code
B
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
96.2 %
Enclosure
TEFC
Feedback Device
NO FEEDBACK
Frame
449TS
Frame Material
Iron
Frequency
60.00 Hz
Haz Area Class and Group
Class I, Group A,B,C & D
Haz Area Division
Division II
Haz Area Temp Code
T2D
Heater Indicator
No Heater
High Voltage Full Load Amps
266.0 a
Insulation Class
F
Inverter Code
Inverter Ready
KVA Code
G
Lifting Lugs
No Lifting Lugs
Motor Lead Quantity/Wire Size
6 @ 2/0 AWG
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
A44128M
Mounting Arrangement
F1
No Load Current
42.4 a
Number of Poles
2
Output
250.000 hp
Output @ Frequency
250.000 HP @ 60 HZ
Overall Length
49.48 IN
Phase
3
Power Factor
91
Pulley End Bearing Type
Ball
Pulley Face Code
Standard
Service Factor
1.15
Shaft Diameter
2.375 IN
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Phase Seq-Std Rot (CCWODE)
Shaft Slinger Indicator
No Slinger
Speed
3570 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
3,600 rpm
Synchronous Speed @ Frequency
3600 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Voltage
460 V
Voltage @ Frequency
460.0 V @ 60 HZ
