Baldor M3560 - .5 HP, 865RPM, 3 Phase, 60HZ, 56H, 3522M, TEFC, F1, N 60HZ Three Phase Three Phase 5 HP 3522 M Cable

Save $354.75
BaldorSKU: M3560

Price:
Sale price$1,064.25 Regular price$1,419.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

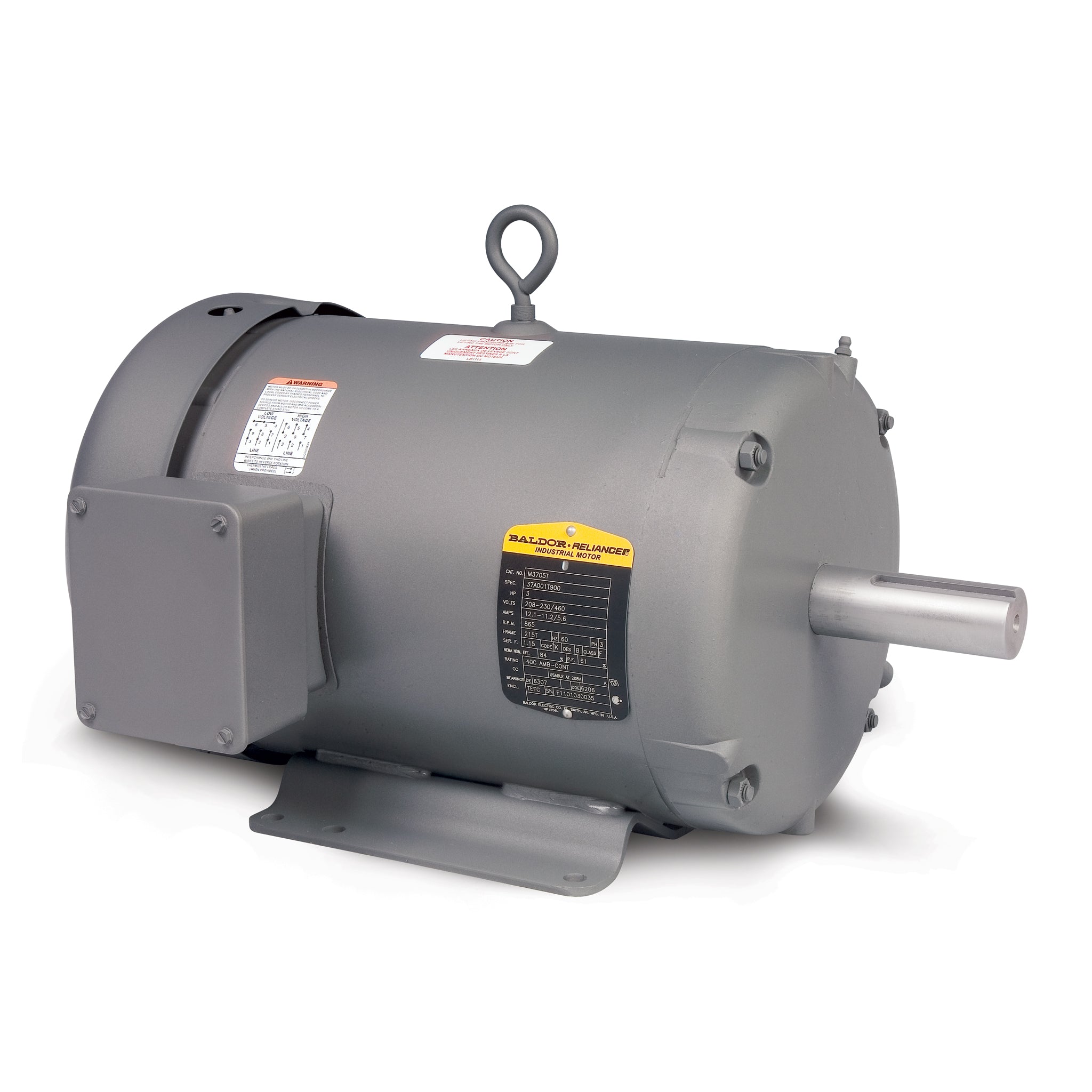

Baldor-Reliance Three Phase Enclosed Motor - Model M3560

Upgrade your pumping system with the Baldor M3560, a reliable and efficient .5 HP three-phase motor designed for optimal performance. Operating at 865 RPM and 60Hz, this motor is perfect for various industrial applications requiring robust power and durability.

  • Power: .5 HP
  • Speed: 865 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56H
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: M3560

This motor is engineered for reliability and efficiency, making it an ideal choice for your pumping needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor M3560. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568101926
Supplier Part Number M3560
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 38.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number M3560
Current @ Voltage 1.200 A @ 460.0 V, 2.200 A @ 208.0 V, 2.400 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56H
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3522M
Mounting Arrangement F1
Number of Poles 8
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 12.91 IN
Phase 3
Power Factor 57
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 865 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 900 rpm
Synchronous Speed @ Frequency 900 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 208 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
