Baldor M3539-TP - .5 Air Overhp, 1170RPM, 3 Phase, 60HZ, 56Z, 3516M 60HZ Three Phase 3516 M Cable

Save $257.25
BaldorSKU: M3539-TP

Price:
Sale price$771.75 Regular price$1,029.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

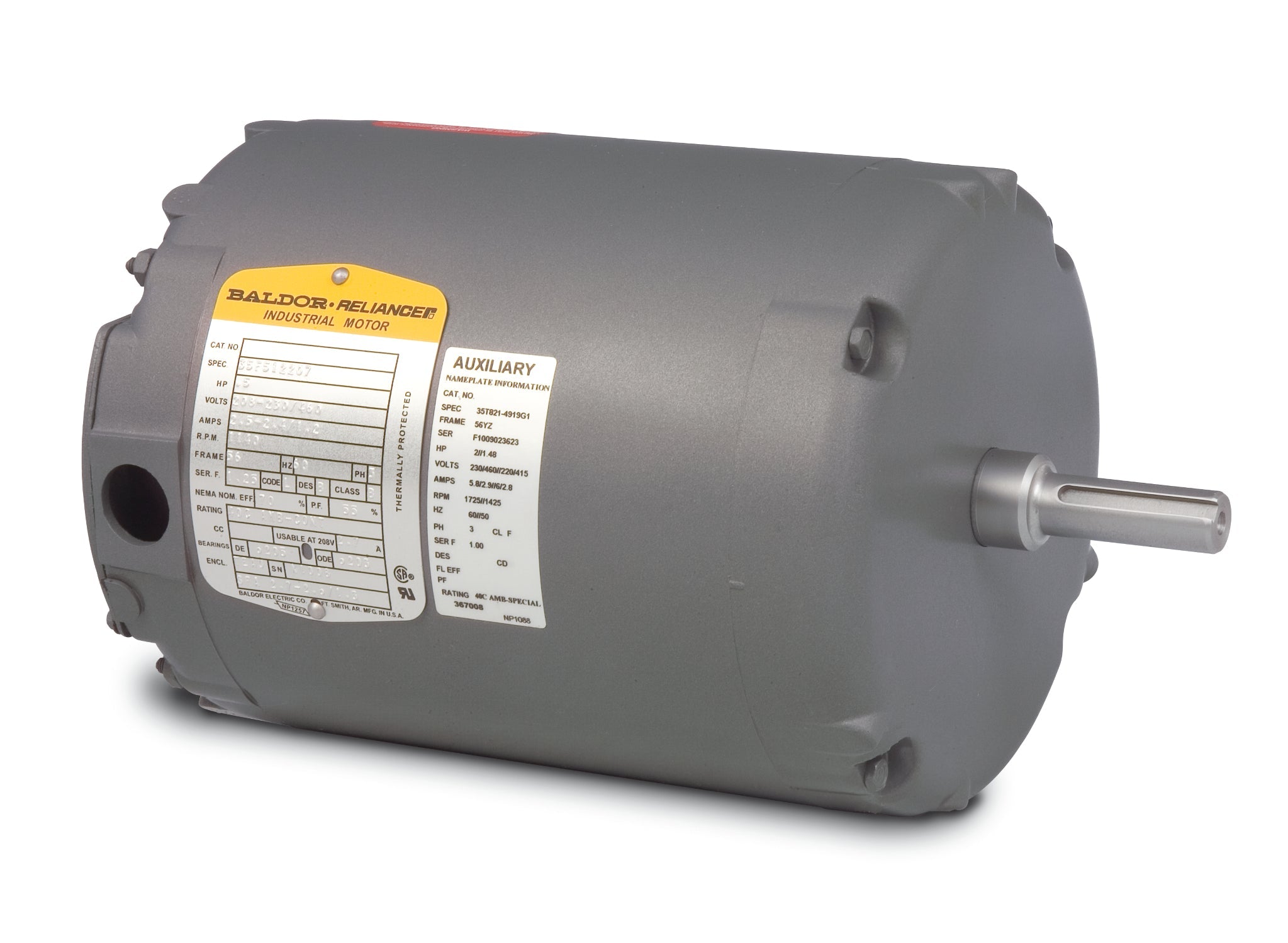

Baldor M3539-TP Condenser Fan Motor

Upgrade your cooling system with the Baldor M3539-TP condenser fan motor, designed for reliable performance and efficiency. This .5 Air Overhp motor operates at 1170 RPM and is compatible with 3-phase, 60Hz systems. With a frame size of 56Z and a robust construction, this motor is ideal for various applications requiring dependable airflow.

Key Features:

  • Power: .5 Air Overhp
  • Speed: 1170 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56Z
  • Product Code: M3539-TP

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568347270
Supplier Part Number M3539-TP
Category AC Motors
Subcategory Condensor Fan Motors
Product Family General Purpose
Agency Approvals CURUS, UR, CSA, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 29.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type AEROSHELL #7 (-73°C TO +149°
Blower None
Catalog Number M3539-TP
Current @ Voltage 2.700 A @ 208.0 V, 2.500 A @ 208.0 V, 2.400 A @ 230.0 V, 1.200 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 56Z
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 12 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3516M
Mounting Arrangement F1
Number of Poles 6
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 11.68 IN
Phase 3
Power Factor 55
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Key And Flat
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1140 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ, 208.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
