Baldor M1729T - 25/11HP, 1760/1160RPM, 3 Phase, 60HZ, 324T, 1240M 60HZ Three Phase 11 HP 1240 M Cable

Save $2,868.50
BaldorSKU: M1729T

Price:
Sale price$8,605.50 Regular price$11,474.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

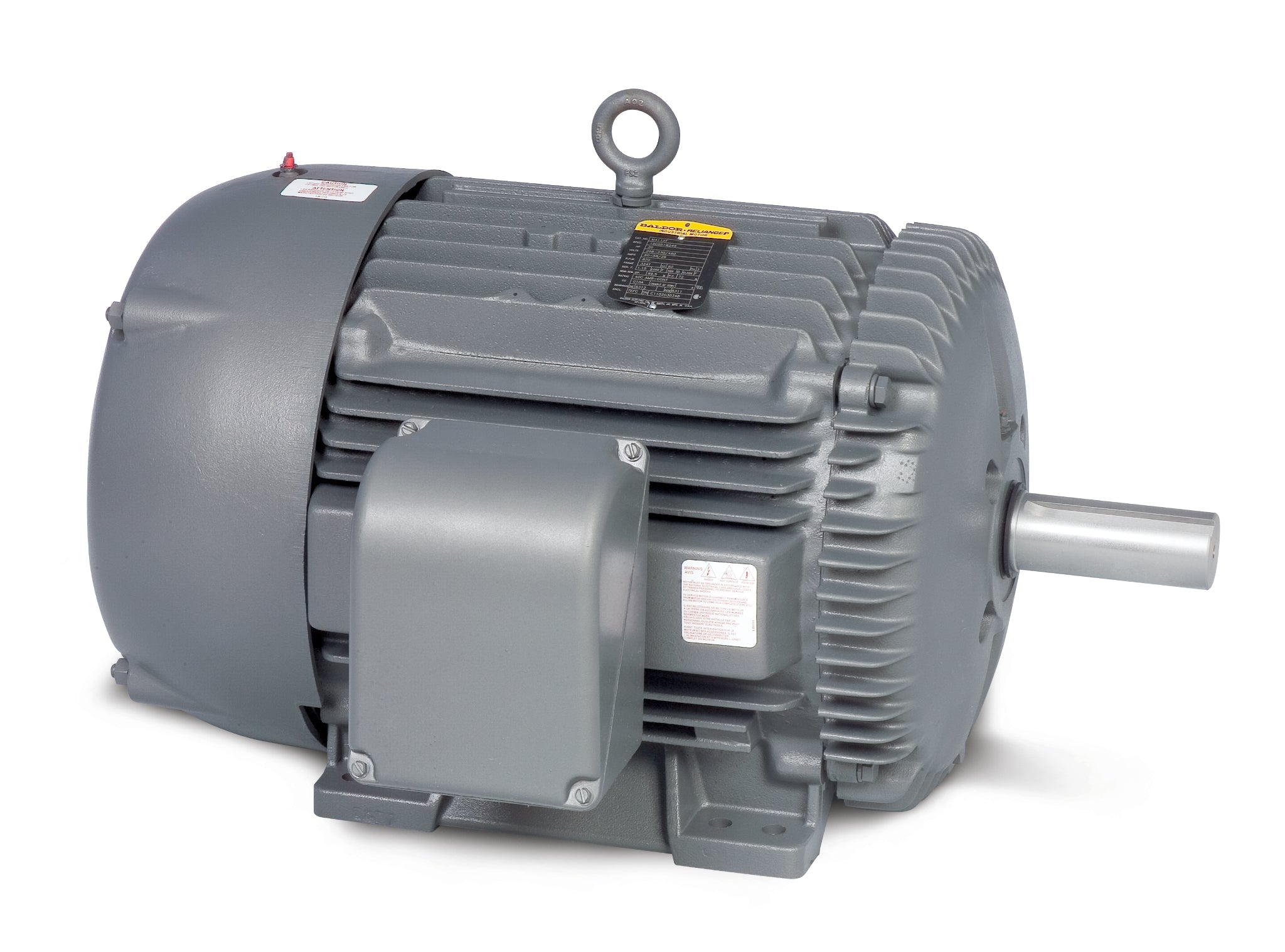

Baldor M1729T Two Speed Motor

Experience reliable performance with the Baldor M1729T Two Speed Motor, designed for efficiency and durability in demanding applications. This high-quality motor features a power output of 25/11 HP and operates at dual speeds of 1760/1160 RPM. With a robust 3 Phase design and a frequency of 60HZ, this motor is ideal for various industrial and commercial uses.

Key specifications include:

  • Model: M1729T
  • Power: 25/11 HP
  • Speed: 1760/1160 RPM
  • Phase: 3
  • Frequency: 60HZ
  • Frame Size: 324T
  • Insulation Class: 1240M

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor M1729T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568116180
Supplier Part Number M1729T
Category AC Motors
Subcategory Two Speed Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 512.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number M1729T
Current @ Voltage 30.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Enclosure Modification Severe Duty Features
Feedback Device NO FEEDBACK
Frame 324T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 18.0 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1240M
Mounting Arrangement F1
Number of Poles 4, 6
Output 11.000 hp, 25.000 hp
Output @ Frequency 11.000 HP @ 60 HZ, 25.000 HP @ 60 HZ
Overall Length 30.28 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1160 rpm, 1760 rpm
Speed Code 2S-2W-VT
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
