Baldor M1726T - 10/4.4 HP, 1760/1170RPM, 3 Phase, 60HZ, 254T 60HZ Three Phase 4.4 HP

Save $1,692.25
BaldorSKU: M1726T

Price:
Sale price$5,076.75 Regular price$6,769.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

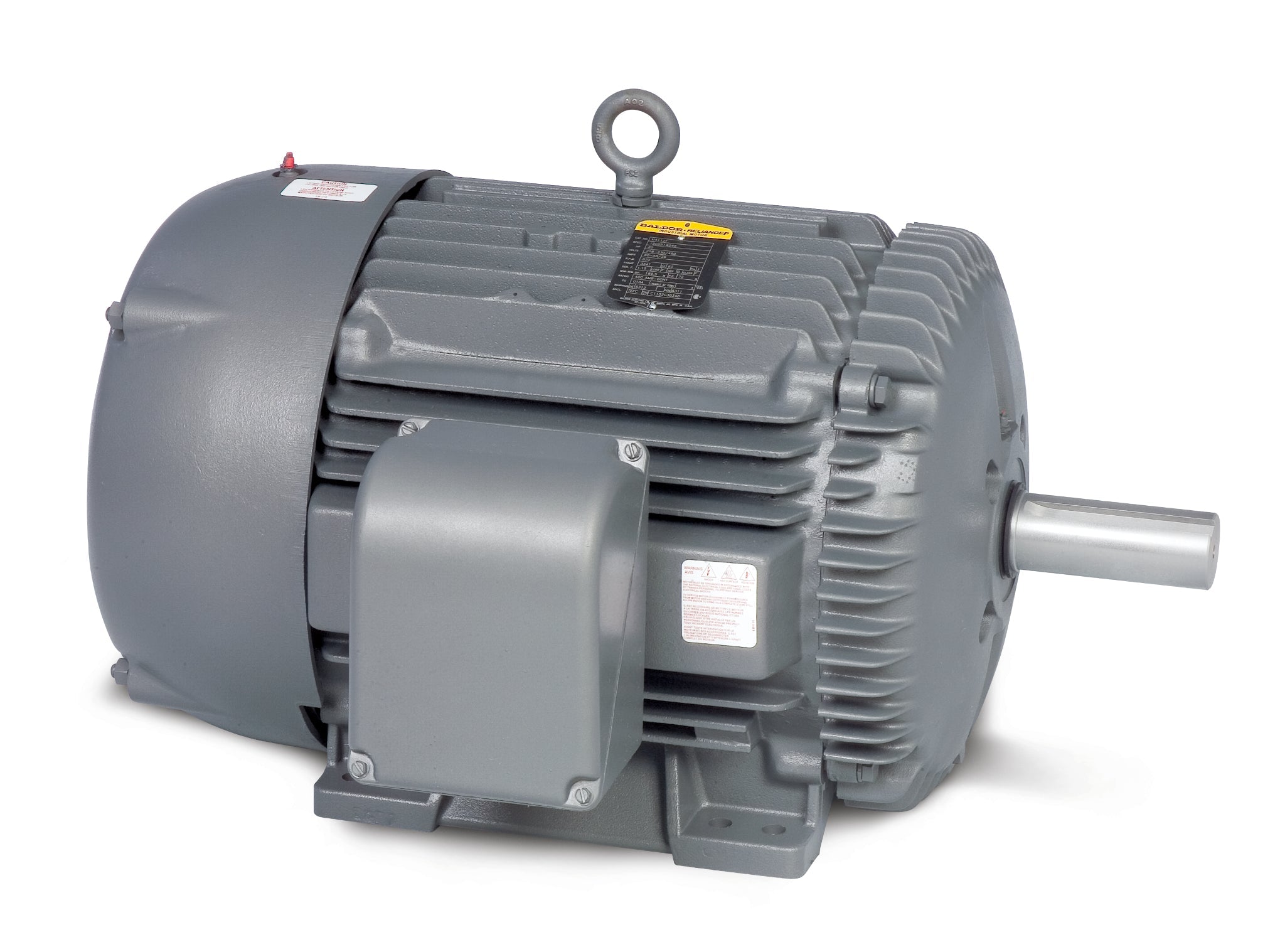

Baldor M1726T Two Speed Motor

Upgrade your pumping system with the Baldor M1726T, a high-performance two-speed motor designed for efficiency and reliability. This robust motor delivers 10/4.4 HP with dual RPM options of 1760/1170 RPM, making it ideal for various industrial applications.

Engineered for 3-phase operation at 60Hz, the Baldor M1726T features a 254T frame size, ensuring compatibility with a wide range of pumps. Whether you need a powerful motor for heavy-duty tasks or a more economical option for lighter applications, this motor provides the versatility you need.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, don’t hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Explore the reliability and performance of the Baldor M1726T Two Speed Motor today and enhance your pumping solutions with confidence.

UPC 781568116159
Supplier Part Number M1726T
Category AC Motors
Subcategory Two Speed Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 225.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number M1726T
Current @ Voltage 12.500 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 254T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.7 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0750M
Mounting Arrangement F1
Number of Poles 4, 6
Output 10.000 hp, 4.400 hp
Output @ Frequency 4.400 HP @ 60 HZ, 10.000 HP @ 60 HZ
Overall Length 21.07 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1170 rpm, 1760 rpm
Speed Code 2S-2W-VT
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
