Baldor M1222T - 2/.89 HP, 1725/1140RPM, 3 Phase, 60HZ, 182T, 3628M 60HZ Three Phase 89 HP 3628 M Cable

Save $578.00
BaldorSKU: M1222T

Price:
Sale price$1,734.00 Regular price$2,312.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

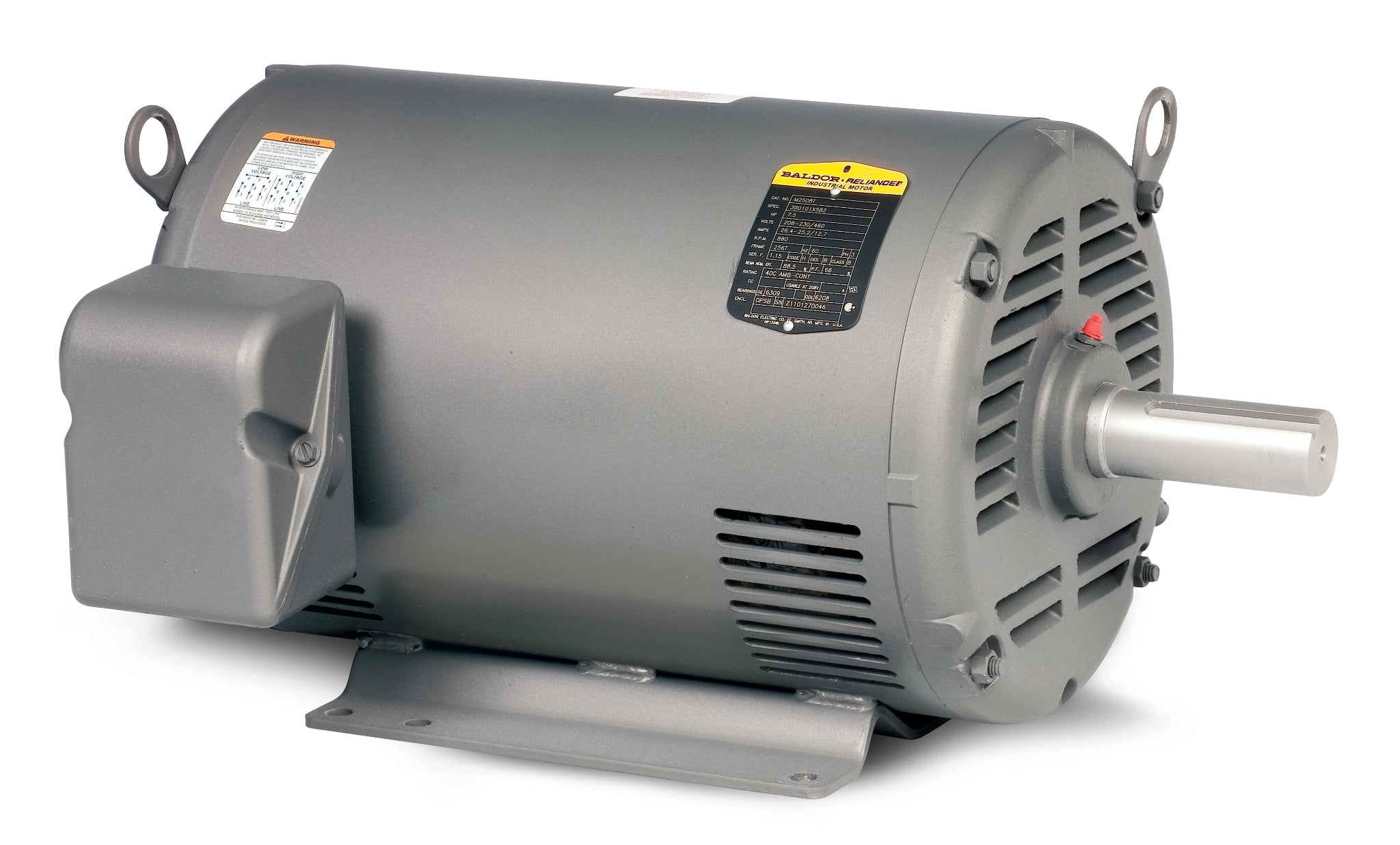

Baldor M1222T Two Speed Motor

Upgrade your pumping system with the Baldor M1222T, a high-performance two-speed motor designed for efficiency and reliability. With a power output of 2/.89 HP and dual RPM options of 1725/1140 RPM, this three-phase motor operates at 60HZ, making it ideal for various industrial applications.

Featuring a robust 182T frame, the Baldor M1222T is built to withstand demanding environments while delivering consistent performance. This motor is perfect for those looking to enhance their pump systems with a dependable and efficient solution.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor M1222T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

Product Details:

  • Product Code: M1222T
  • Type: Two Speed Motor
  • Power: 2/.89 HP
  • Speed: 1725/1140 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame: 182T

Enhance your operational efficiency with the Baldor M1222T Two Speed Motor today!

UPC 781568116456
Supplier Part Number M1222T
Category AC Motors
Subcategory Two Speed Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 65.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number M1222T
Current @ Voltage 3.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 182T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.6 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3628M
Mounting Arrangement F1
Number of Poles 4, 6
Output 0.890 hp, 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ, .890 HP @ 60 HZ
Overall Length 15.00 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1140 rpm, 1725 rpm
Speed Code 2S-2W-VT
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
